CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
CE Small Articulating Front End Loader With Electrophoresis Frame HT910
Specifications
Brand Name :
HIGHTOP
Model Number :
HT910
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
20 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Product Name :
Small Wheel Loader
Dimension(Long * Breadth * High) :
2700 * 1160 * 2175 mm
Weight :
1700kg
Bucket capacity :
0.3m3
Engine Power :
18KW
Warranty :
1 Year
Description

HT910 Articulated Small Wheel Loader With CE Small Front End Loaders

Description of HT910 Small Wheel Loader :

Baking paint process adopted on the whole machine to ensure a stronger adhesion and be colorfast.

Electrophoresis frame adopted to ensure resistant to rust.

Features of HT910 Small Wheel Loader :

Wheel loaders Can be equipped with a variety of attachments to achieve a multi-function,multi-purpose machine.

Technical parameters of Small Wheel Loader :

Model HT910
Load and Unload Mode front discharge
Walking Mode Wheeled
Engine Changjia25
Tire 750-16
Standard Bucket Capacity 0.3m3
Bucket Width 1300MM
WHEEL TRACK 1370MM
Drive Bridge Type Half-axle axle
Engine Powe 18KW
whole vehicle quality 1700KG
Wheel Base 1810MM
Control Type manual transmission
Trademark Walker
Overall dimension(LxWxH) 4400*1300*2330mm
Drive system mechanical gearbox
working hydraulic system mechanical single joystick
lifting time 4s
falling time 3.2s
Service brake Mechanical drum brake on gearbox
parking brake hand operated
Maximum unloading height 2400-2700MM
Rated load 500-800KG
Number of cylinders 1
Optional installation aids Bucket,grass gripper,fork

Applications of Small Wheel Loader :

Small electric loaders are widely used in construction projects suchas roads, railways, buildings, hydropower, ports, mines, etc, andare also agricultural machinery used in small spaces such as riceplants, farms, and pastures.

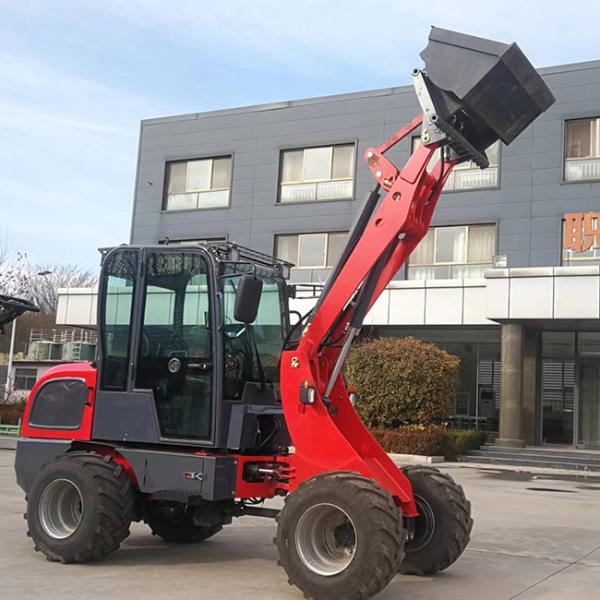

Images of Small Wheel Loader :

CE Small Articulating Front End Loader With Electrophoresis Frame HT910

CE Small Articulating Front End Loader With Electrophoresis Frame HT910
