2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
Specifications
Brand Name :
Hightop
Model Number :
HT25-2
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Product Name :
Mini Hydraulic Excavator
Model :
HT25-2
Engine Brand :
KUBOTA D1105
Operating Weight :
2500kg
Power /Rotation speed :
20HP
Bucket Capacity :
0.07m³
Description

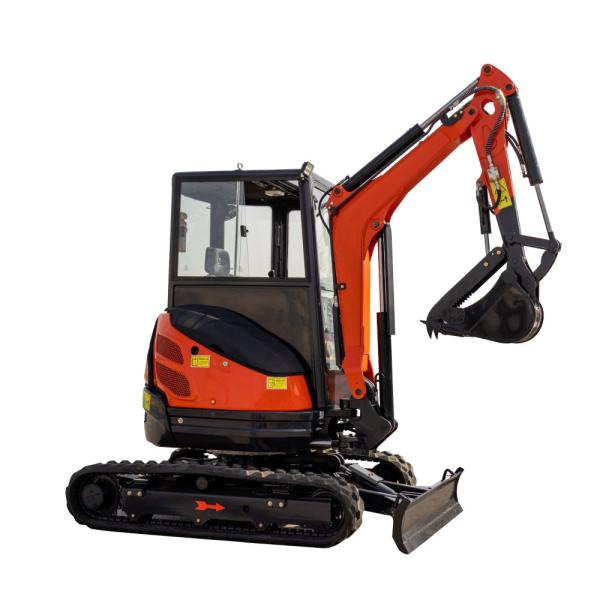

2500kg Cab Mini Crawler Excavator EPA Euro 5 Engine Compact Excavator

HT25-2 Mini Crawler Excavator Description:

The mini excavator can also be used with attachments such as break hammers,augers, grippers, rakes, rippers, narrow buckets,grabbers, plain bucket ,trailers etc., to meet different construction occasions

HT25-2 Mini Crawler Excavator Features:

EPA/CE,ISO certificate ,Euro 5 engine, Optional: Boom swing

Colors can be customized: red, yellow, white, blue

Mini Crawler Excavator Technical parameters:

Model:HT25-2
Emission Standard Tier 5/ Stage V
Make KUBOTA
Model D1105
Power /Rotation speed 14.1kw(20HP)@2000rpm
Number of cylinder 3
Maximum Travel speed 3km-5.5km/h
Width of track shoe 250mm
Number of track shoe per side 38pcs
Number of upper roller per side 1
Number of bottom roller per side 3
PERFORMANCE PARAMETER
Standard Bucket capacity 0.07m³
Swing speed 9 .5 rpm
Max. Grade ability 35°
Maximum Bucket digging force 19.5KN
Maximum Arm digging force 11KN
Hydraulic system pressure 21.5Mpa
Machine weight 2480kg
MACHINE SIZE
Overall dimension (L*W*H) 3850*1300/1500*2290mm
Chassis Recovery 1300mm
Chassis Extension 1500mm
Axle base(Track length on ground) 1300mm
Min.Ground clearance 230mm
Swing radius at tail 750mm
Working Range
Maximum Digging height 3980mm
Maximum Dumping height 2610mm
Maximum Digging depth 2500mm
Maximum Vertical digging depth 2050mm
Maximum Digging radius 4130mm
Minimum swing radius 1850mm
Maximum Lifting height of blade 280mm
Maximum Cutting depth of blade 310mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 55°

Applications:

HT25-2 cab mini crawler excavator is with compact design, and with low oil consumption, it is suitable to be used for works, small projects, in garden, farmland, municipal works, vegetable greenhouse and digging trench. It is with small engine, simple design and easy to maintain.

HT25-2 Cab Mini Crawler Excavator Show Details:

2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment

2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment

2.5 Tone Mini Crawler Excavator EPA Euro 5 Engine Small Excavation Equipment
