HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
HTS50 Skid Steer Loader
Specifications
Brand Name :
HIGHTOP
Model Number :
HTS50
Certification :
CE，EPA，ISO，TUV
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
Western Union, MoneyGram, T/T, D/A, D/P, L/C
Supply Ability :
100 set per month
Delivery Time :
5-14 work days
Packaging Details :
Wooden case
Max.Operation height :
4058mm
Height of the bucket hinge pin :
3077mm
Height to Cabin top :
2007mm
Description

HTS50 Skid Steer Loader Instruction

It is equipped with multiple functional configurations such as a quick - change device, a safety self - locking device, a boom support device, noise - reducing sponge, a front hydraulic auxiliary device, a reversing alarm, and a horn.

Chain box: A tandem piston pump with stepless speed change technology is adopted to drive the hydrostatic motors on the left and right sides.

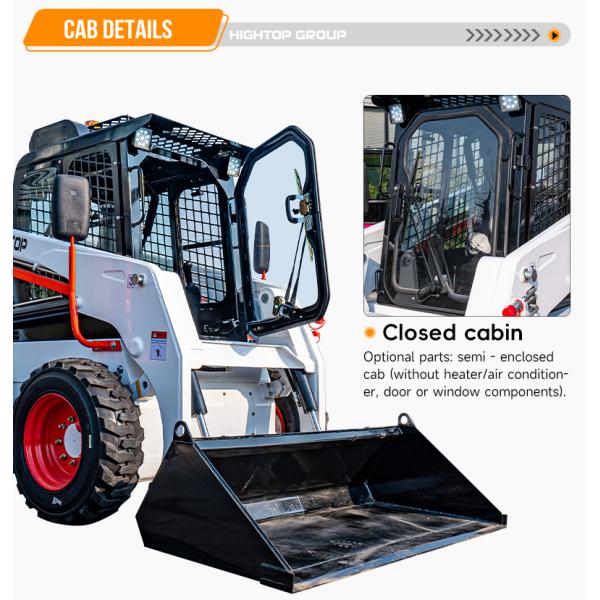

Optional parts: 10 - 16.5 - 12PR RG400 heavy - duty tires, as well as solid tires with the specification of 30*10 - 16 (160/205); rotating warning lights, semi - enclosed cab (without heater/air conditioner, door or window components).

A variety of auxiliary tools are available for selection, including construction buckets, enclosed sweepers, four - in - one buckets, four - point lifting lugs for snowplows, grab buckets, ditchers, manure scrapers, tree transplanters, rotators, milling machines, breaker hammers, forklift forks, etc.

HTS50 Skid Steer Loader Parameter

Max.Operation height 4058mm
Height of the bucket hinge pin 3077mm
Height to Cabin top 2007mm
Max.horizontal height of the bucket bottom 2908mm
Length without bucket 2700mm
Length with bucket 3413mm
Max. unloading height 2303mm
Unloading distance 675mm
Wheelbase 999mm
Departure angle 23°
Ground clearance 185mm
Rear turning radius 1627mm
Machine width 1469mm
Width of the tire edge 1740mm
Width of the bucket edge 1780mm
Bucket capacity 0.35m³
Diesel fuel tank capacity 88L
Hydraulic fuel tank capacity 70L
Rated working capacity 750kg
Overturning working capacity 1500kg
Operation weight 3003kg
Max. working speed 12km/h
Standard Engine Xinchai490
Power 36.8KW/2500rpm
Operation Method Mechanical/Hydraulic control

HTS50 Skid Steer Loader Images

HTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer LoaderHTS50 Skid Steer Loader
