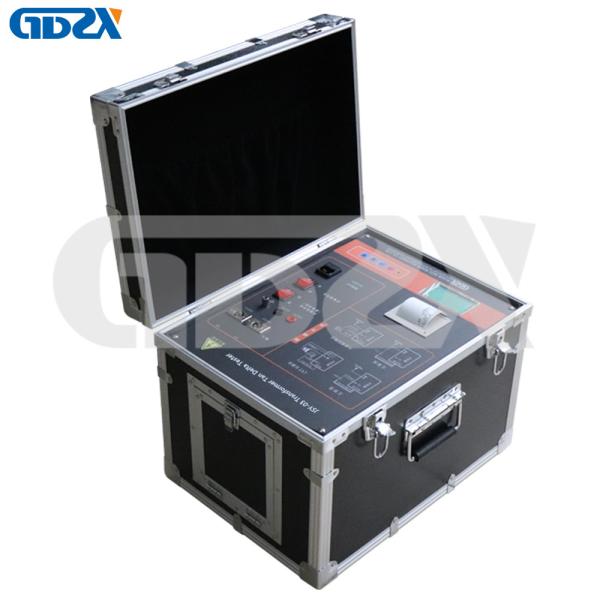

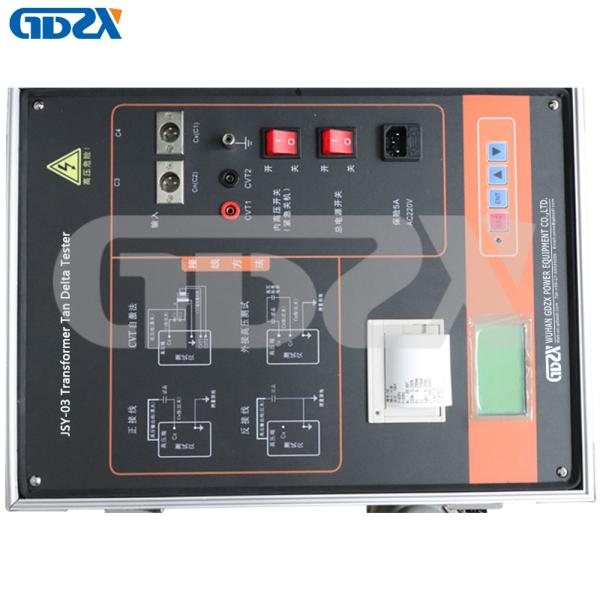

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
Specifications
Brand Name :
GDZX
Model Number :
JSY-03
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
$2800-3580 / Set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
8-15 work days
Packaging Details :
carton
current range :
10μA-1A
voltage range :
0.5-10kV
Maximum output current :
200mA
Brand :
GDZX
External HV :
3pF-1.5μF/10kV 60pF-30μF/0.5kV
Anti-interference index :
within 200%
Description

Power Transformer Testing Equipment 10kV (12kv) Capacitance Tan Delta Tester

Product brief introduction:

Automatically filter out 50Hz interference, which is suitable for field test with large electromagnetic interference such as substation. Widely used in power industry transformers, transformers, bushings, capacitors, arresters and other equipment dielectric loss measurement.

Product Features

1. Complex number current method to measure capacitance, tgδ, and other parameters. Auto, High accuracy

2. Reliable measuring data in heavy electromagnetic interference environment

3. Large screen LCD display, menu prompts, easy reading and easy operation
4. Microprocessor control, auto measurement ( after choose measuring methods)

5. Compact structure with standard capacitor and high voltage power supply inside, easy wiring.
6. High accuracy, oil dielectric loss measurement to be done by matching with oil cup and test lines

7. CVT self-excited test function, one time measurement to get C1, C2 capacitance and dielectric loss
8. Grounded specimen test adopts ivddv technology to get stable measurement data
9. Low-voltage shielding function, when 220kV CVT bus is grounded, C11 can be disconnected for 10kV GST

10. HV (+10kV) dielectric loss factor test function ( after match with HV transformer or resonance devices)
11. Grounding protection function, over current protection function

12. electric shock protection function, auto cut off power when operator accidentally get an electric shock.

Technical Indicators :

1. Accuracy: Cx: ±(reading×1%+1pF), Tgδ: ±(reading×1%+0.00040)

2. Anti-interference index: within 200%

3. Capacitance range:
1) Internal HV: 3pF-60000pF/10kV 60pF-1μF/0.5kV

2) External HV: 3pF-1.5μF/10kV 60pF-30μF/0.5kV

4. Resolution: Maximum 0.001pF, 4 valid figures.

5. tgδ range: unlimited, resolution 0.001%, auto identifying specimen to be capacitor, inductor or resistor.

6. Test current range: 10μA-1A

7. Internal HV: voltage setting range: 0.5-10kV

1) Maximum output current: 200mA

2) Buck-boost method: continuous smooth regulation

3) Test frequency: 45, 50, 55, 65Hz single frequency, 45/55Hz, 55/65Hz, 47.5/52.5Hz auto dual frequency

8. External HV:
1) In case of UST, maximum test current: 1A, power frequency or variable frequency 40-70Hz

2) In case of GST, maximum test current 10kV/1A, power frequency or variable frequency 40-70Hz

9. CVT self-exciting low voltage output: Output voltage 3-50V, output current 3-30A

10. Measuring duration: About 40s, depending on measuring method

11. Input power supply: 180V-270VAC, 50Hz±1%, powered by main supply or generator

12. Computer interface: Standard RS232 interface

13. Printer: WH-A7 mini-type thermal printer

14. Environment temperature: -10℃-50℃, Relative humidity: <90%

15. Overall dimension:460×360×350mm, weight:28kg

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss TesterJSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester

Some customer feedback :

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester

Our Sevice :

Professional Consulting Services

Detailed Information About Products

Reasonable Price

Welcome Customer Visit

Signing Contracts And Technical Agreements

Ensure Execution Of Contract And Agreement

Active Communication

Complete After-Sales Service

Professional After-Sale Service Team

1 Year Free Warranty, Life-Long Maintenance

Help Troubleshooting Within 24 Hours

Professional R & D Team

JSY-03 CVT Electric Power Transformer Tan Delta Capacitance Tester 12 Kv Dielectric Loss Tester
