Specifications
Brand Name :
GDZX
Model Number :
ZXZK-III
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
L/C, T/T
Packaging Details :
carton or wooden case
Price :
US $2999.00-4500.00/SET
Supply Ability :
1200 sets/year
Delivery Time :
8-10 working days
Power supply :
AC220V15%,50Hz
Product name :
Vacuum Switch Vacuum Degree Tester
Testing range :
10-4~10-1Pa
Electric field voltage :
20kV
Magnetic field voltage :
1600V
Accuracy :
5%
Operating condition :
-10℃~40℃
Size and weight :
460*335*330mm; 12kg
Description

ZXZK-III Vacuum Switch Vacuum Degree Tester

Product introduction

Vacuum Switches is designed to measure the vacuum degree of vacuum switches. It uses an electromagnetic discharge measuring method, to ensure the testing results accurate and reliable.The testing data can estimate vacuum switch’s health and life span.

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

Features

1. Electromagnetic measuring method, Accurate and Reliable.

2. No need to dismantle the vacuum switch in measurement.

3. Quantitative testing, high precision and high stability.

4. LCD display, simple menu operation.

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester


Technical Indicators

1. Power supply: AC220V15%,50Hz
2. Testing range: 10-4~10-1Pa
3. Electric field voltage: 20kV
4. Magnetic field voltage: 1600V
5. Accuracy: 5%
6. Operating condition: -10℃~40℃
7. Size: 460*335*330mm
8. Weight: 12kg

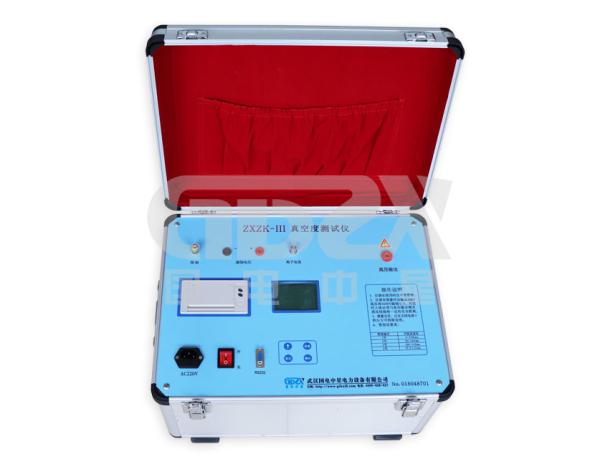

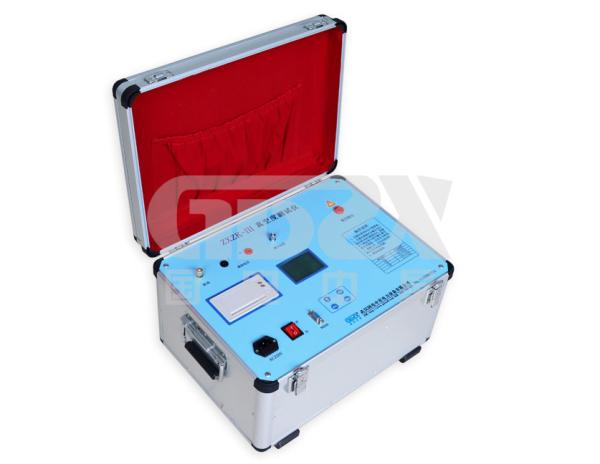

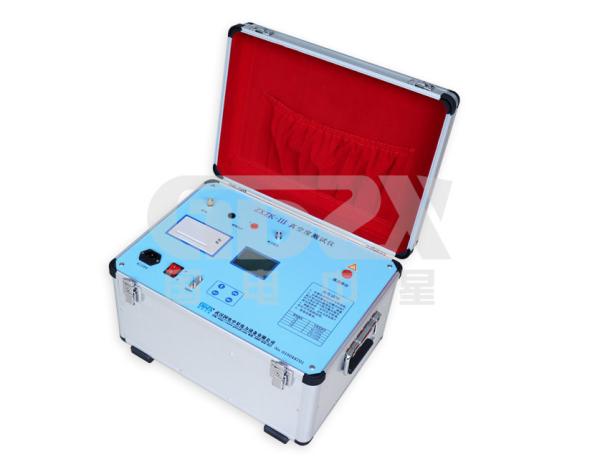

Product pictures

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester



Company introduction
Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester


20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

20KV HV Circuit Breaker Vacuity Degree Test Vacuum Switch Vacuum Degree Tester, Vacuum Circuit Breaker Tester

FAQ:

1.Q: Are you trading company or manufacturer?

A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?

A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?

A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?

A: Payment<=5000USD, 100% in advance. Payment>5000USD, 50% T/T in advance, balance before shipment.

5.Q: What is the payment method?

A: We can accept Bank Transfer, T/T,L/C.

6.Q: Will you provide OEM service?

A: OEM & ODM services available

7.Q: How long is the equipment warranty?

A: 1 year.
