Specifications
Brand Name :
GDZX
Model Number :
XZ-2
Certification :
ISO9001
Place of Origin :
Hubei, China
MOQ :
1 Set
Price :
US $1200.00-$2000.00 /SET
Payment Terms :
L/C, T/T
Supply Ability :
500 Set/Sets per Month
Delivery Time :
7~10 work days
Packaging Details :
Carton or wooden box
Product name :
High Voltage Phase Sequence Indicator
Input voltage :
50V-500V and 6-10kV respectively, and voltage above 35kV, can be customized
Power supply voltage :
dry battery 9V
Instrument size and weight :
82*25.5*16.5cm; 5.2kg
Description

XZ-2 High Voltage Phase Sequence Indicator

Product introduction

XZ-2 High Voltage Phase Sequence Indicator can test voltage 50V-500V and 6kV above, check if the phase sequence is A-B-C for three phase power source. It is simple to operate and small in size.

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

Features

1. Red moving lamp means positive phase sequence, green moving lamp means negative phase sequence.

2. Applied to 380V low voltage level, also to 6KV High voltage level when matching with insulation rod.

3. Auto power switch on/off function.

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

Technical Indicators

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

1.Input voltage: 50V-500V and 6-10kV respectively, and voltage above 35kV, can be customized
2.Power supply voltage: dry battery 9V
3.Instrument size and weight: 82*25.5*16.5cm; 5.2kg

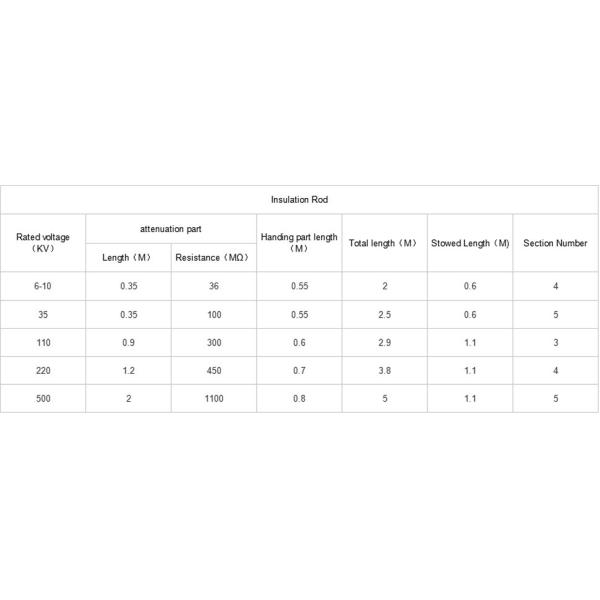

4.Applies to high voltage 6-10kV and above,, there are three insulation rods (length 2 meters) with 36MΩ damping resistance.

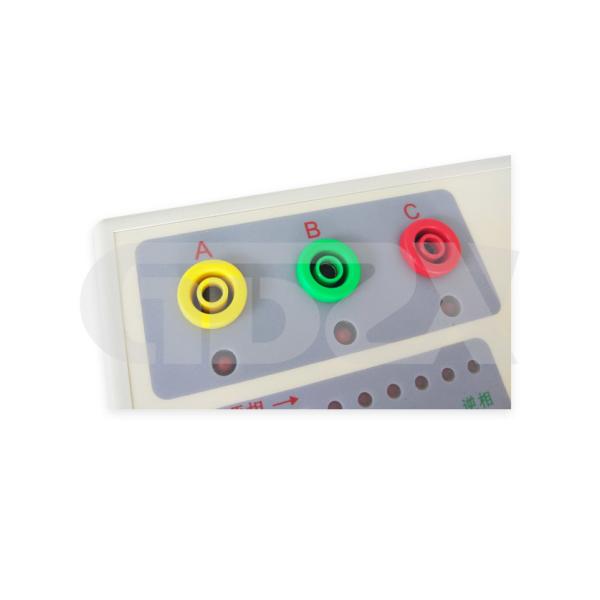

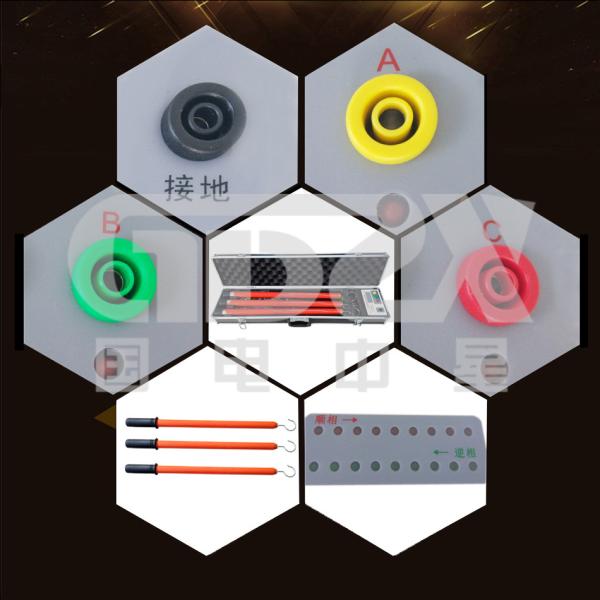

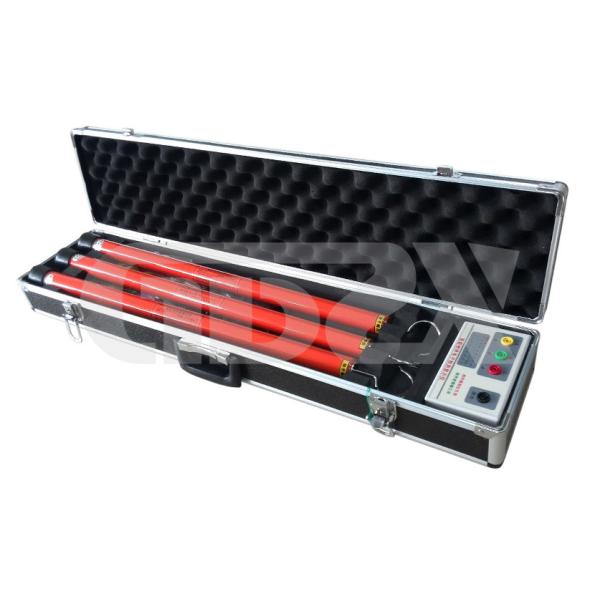

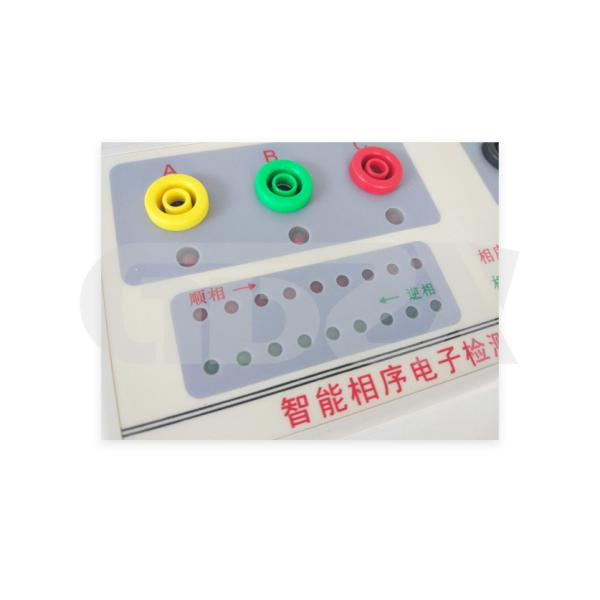

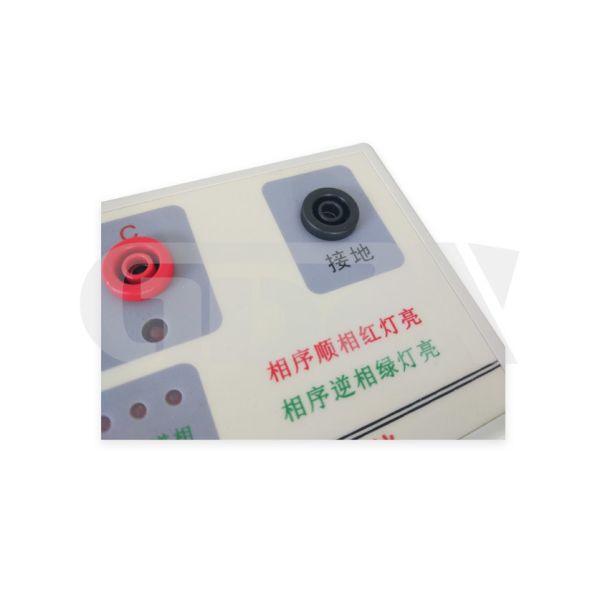

Product pictures

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight

Phase Sequence Indicator Tester High Voltage Testing Machine LightweightPhase Sequence Indicator Tester High Voltage Testing Machine LightweightPhase Sequence Indicator Tester High Voltage Testing Machine LightweightPhase Sequence Indicator Tester High Voltage Testing Machine Lightweight

PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Phase Sequence Indicator Tester High Voltage Testing Machine Lightweight
