ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument
Specifications
Brand Name :
GDZX
Model Number :
ZX3030D
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
US $15460.00-43289.00/SET
Payment Terms :
L/C, T/T
Supply Ability :
100 Set/Sets per Month
Delivery Time :
8-20 working days
Packaging Details :
Carton or Wooden Case
Product name: :
Multi-function Measuring Instrument Calibration Equipment
Power supply: :
220V±10%
AC Voltage Range: :
Basic range: 25V, 100V, 250V, 600V
DC Voltage Range: :
Basic 100mV, 25V, 100V, 250V, 600V
AC Current range: :
Basic range: 0.1A、1A、5A、25A
DC Current range: :
Basic range: 20µA, 200µA, 2mA, 20mA, 0.1A, 1A, 5A, 25A
Voltage current power stability: :
≤0.01%(1min)
Size and Weight: :
432*428*175; 18kg
Description

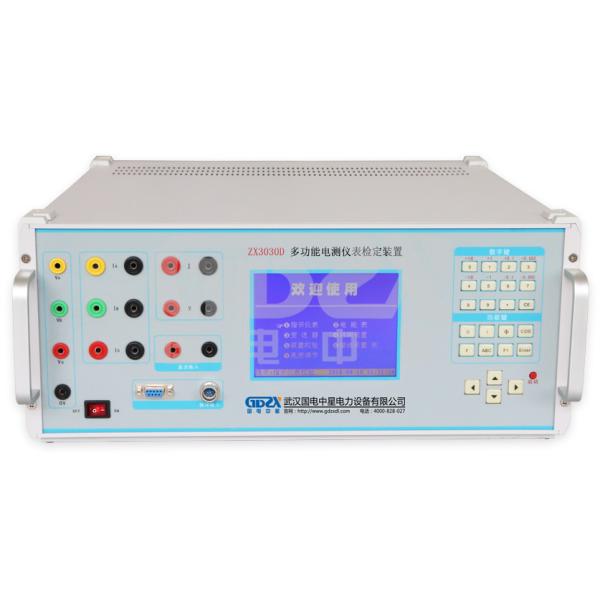

ZX3030D Multi-function Measuring Instrument Calibration Equipment

Product introduction

Without standard meters can test various indicating instrument, energy meters, transmitters.

ZX3030D Multi-function Measuring Instrument Calibration Equipment is a high-tech product launched by our company using today's scientific research achievements. The product quotes new design concepts, adopts powerful DSP digital processing system and high-precision A/D and D/A converters, adopts the user's experience, and integrates the achievements of many years of research and development of electrical measuring instruments. Powerful function, meter source integration, manual or automatic calibration of various indicating instruments, electric energy meters and transmitters without additional standard meters.

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

Product advantages

● Digital signal synthesis and data acquisition and processing technology based on DSP make the device output stable and reliable.

● The comprehensive error of the device is level 0.05 (power level 0.1), with high precision and excellent indicators.

● Powerful microcomputer management platform shall be configured to check, transmit, print and manage data through microcomputer.

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

Features

1. Using DPS digital signal generating and processing technology makes the measuring output stable and reliable.

2. Integrated error 0.05 level (electric energy 0.1 level), high precision good ani-interference.

3. Microcomputer management platform, capable of calibrating, transmitting, printing and data mangament.

4. Range of voltage current can be preset, and can be shifted automatically.

5. large LCD display, tip function, on line help, massive information showing in one screen.

6. Can output AC/DC voltage current with standards of power, frequency, phase, power factor, DC voltage current equipped, can display primary value and secondary value at the same time, auto-check the error, save and preview testing results.

7. Can test 2~31 orders harmonics.

8. Function of external software calibrating.

9. Great over-load capacity, can be with 1uFcapacitance (100V).

10. With voltage linkage protection, current limit protection, power amplifier self-closing function.

11. Going through over-load test, dumping test, misusing test, high temperature aging test make it reliable to use.

12. With germany standard carrying box, light and portable.

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

Technical Indicators
Item Index
1.Voltage AC range: Basic range: 25V, 100V, 250V, 600V
Automatic range: 15V～600V
DC range: Basic 100mV, 25V, 100V, 250V, 600V
Automatic range: 15V～600V
Regulation range: 0～130% UN
Regulation fineness: 0.002%UN
Maximum output capacity: ≥20VA/Phase
Fineness: 0.05 (100mV: 0.1)
2.Current: AC range: Basic range: 0.1A,1A,5A,25A
automatic range: 0.05A～25A
DC range: Basic range: 20µA, 200µA, 2mA, 20mA, 0.1A, 1A, 5A, 25A
Automatic range: 20µA～20mA & 0.1A～25A
Regulation range: 0～130%IN(25A: 0～120%)
Regulation fineness: 0.002%IN
Maximum output capacity: ≥20VA/Phase
Accuracy: 0.05
3.Frequency: Regulation range: 40HZ～70HZ
Regulation fineness: 0.01HZ
Regulation accuracy: ±0.01HZ
Phase: Regulation range: 0～359.99°
Regulation fineness: 0.01°
Accuracy: ±0.2°( rated output voltage current at full range)
4.Three phase power accuracy: 0.05(reactive power: 0.1)
5.Three phase voltage symmetry: Three phase four line 120°±0.2°;
Three phase three line 60°±0.2°;
6.Voltage current waveform distortion: < 0.3%
7.Harmonic component: 2~31orders(when >11, only odd numbers can be set)
8.Voltage current power stability: ≤0.01%(1min)
9.Accuracy: 0.02 (0～±20mA, 0～±5V)
10.Integrated error: 0.05% (energy meter 0.1%)
11.Weight: 18kg
12.Dimension: 432*428*175
13.Power supply: 220V±10%

Product picrtures

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

PACKING AND SHIPPING
(1)We will ship products within 7-15 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument



Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument


ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring InstrumentZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

ZX3030 Electrical Power Calibrator Accuracy 0.05 Multi Function Measuring Instrument

FAQ:

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 40% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
