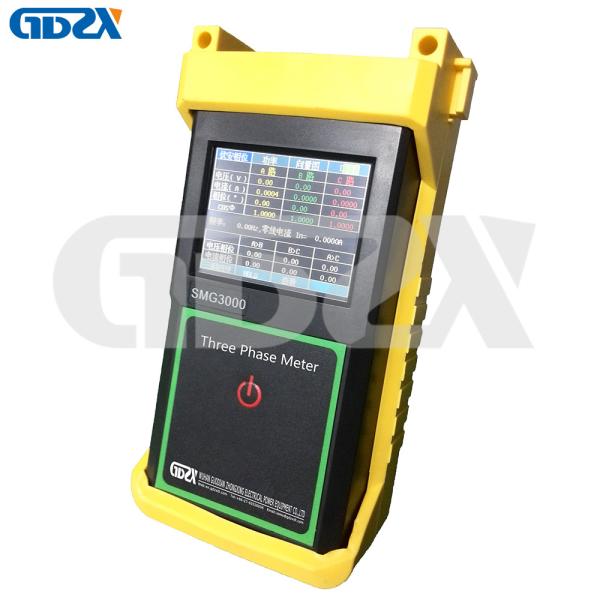

SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply
SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply
Specifications
Brand Name :
GDZX
Model Number :
SMG3000
Place of Origin :
Hubei, China
MOQ :
1 Set
Price :
$800.00 - $1,200.00 / Sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1200 Set/Sets per Year
Delivery Time :
7~10 work days
Packaging Details :
Carton or wooden box
Product name :
Three-phase Voltmeter Volt Ampere Meter
Voltage :
1~600Vac
Current :
0.001~20Aac
Frequency :
45~65Hz
Phase Position :
0~360°
Active power :
0.001~12000W
Description

SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply

SMG3000 Three phase Meter is instrument for measurement of three-phase electric parameters

Used to measure the three phase U I Phase angle, F power, PF and so on.

Features

1. Three-phase voltages and four channel current (including neutral line current) measurements

2. Three phase AC U-U, I-I, U-I angle measurement

3. System frequency and phase sequence measurement

4. Auto identifying transformer winding, capacitive and inductive load

5. Hexagon vector diagram display, colorful phase sequence analysis;

6. Active power, reactive power, apparent power, three-phase power, power factor measurements

7. Data storage and view function;

8. Static data save function;

9. TFT color display with finger touch screen

10. Lithium battery power supply, rechargeable continuous standby for more than 20 hours

Parameters

Type Measuring Range Unit Error Resolution
Voltage 1~600 Vac 0.5%×Measuring range 0.01V
Current 0.001~20 Aac 0.5%×Measuring range 0.0001A
Active power 0.001~12000 W 0.5%×reading(PF=1) 0.1W
Reactive power 0.001~12000 Var 0.5%×reading(PF=0) 0.1Var
Apparent power 0.001~12000 VA 0.5%×reading 0.1VA
Frequency 45~65 Hz 0.1%×reading 0.01Hz
Phase Position 0~360 ° ±2° 0.1°

Remark: during 1mA-5mA, phase error: ±3°

SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply

SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply

SMG3000 Voltmeter Volt Ampere Meter / Power Meter Lithium Battery Power Supply
