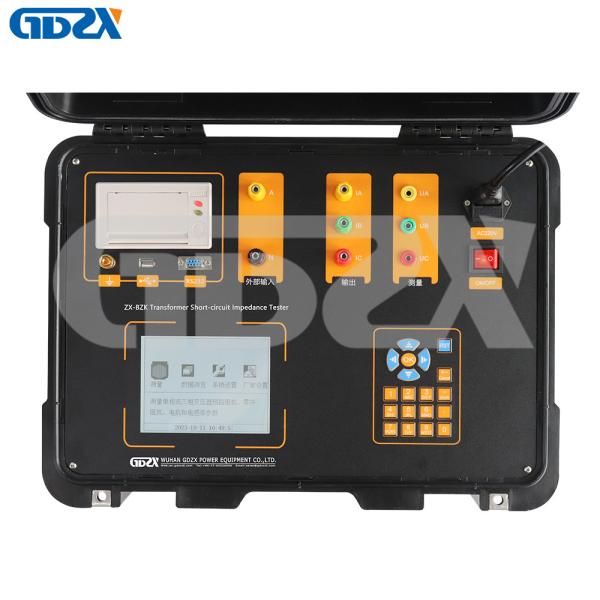

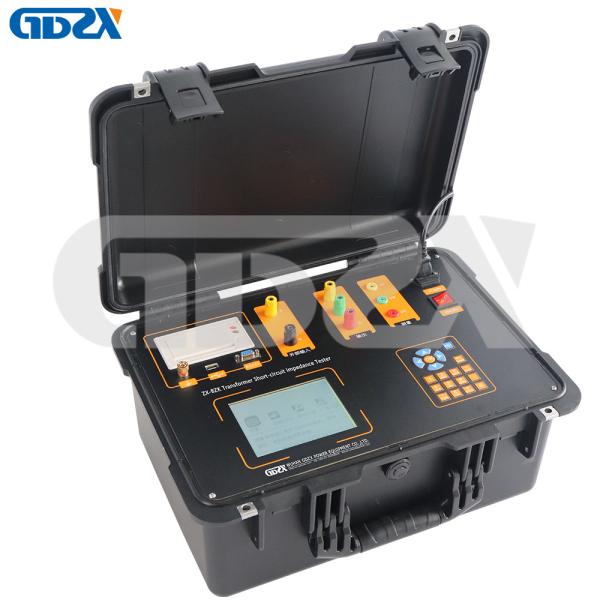

ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
Specifications
Brand Name :
GDZX
Model Number :
ZX-BZK
Place of Origin :
Hubei, China
MOQ :
1 Set
Price :
$1,500.00 - $3,500.00 / Sets
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
1200 Set/Sets per Year
Delivery Time :
7~10 work days
Packaging Details :
Carton or wooden box
Product name :
Short-circuit Impedance Test
Power supply :
AC220V±10%,50Hz±1Hz
Measurement accuracy :
Voltage, current 0.2%
Voltage measurement range :
AC 3V-300V
Current measuring range :
AC 0.2A-20A
Working temperature :
-10℃--50℃
Description

3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test

Low-voltage short-circuit impedance test is to the most direct way to check the deformation of the winding after transformer suffered from short-circuit current or mechanical collision during transportation and installation, the test is important to help determine whether the transformer can be put into operation, and whether disintegration is necessary for inspection. ZX-BZK transformer short-circuit impedance tester comes with adjustable power output, particularly suitable for 110kV and above main transformer on site measurement.

Features

1. With switching power supply, just one time wiring connection can finish measurement for all the windings, no matter it is single phase transformer or three phase transformer

2. Single phase measurement mode. To three phase transformers, each phase short circuit impedance, reactance, inductance can be obtained automatically after three times boosting.

3. Adopts phase locking technology, synchronize sampling AC signal which ensures accuracy

4. current, voltage and power, frequency can be measured at the same time

5. Support external connection with CT/PT to extend measuring range

6. With memory to store data, with printer

7. LCD display with operation menu, data can be read clearly even under direct sunlight

Main Technique Parameters

Measurement accuracy Voltage, current 0.2%
Power COSφ>0.1 0.5%; COSφ≤0.1 1.0%
Impedance COSφ>0.1 0.5%; COSφ≤0.1 1.0%
Voltage measurement range AC 3V-300V
Internal power supply output range Voltage 0-250V, current 0-10A
Current measuring range AC 0.2A-20A
Working temperature -10℃--50℃
Humidity 0-80%
Power supply AC220V±10%,50Hz±1Hz
Dimension 360*220*150mm
Net Weight

About 5kg

ZX-BZK 3V - 300V Transformer Winding Deformation Tester Short Circuit Impedance Test
