LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester
Specifications
Brand Name :
GDZX
Model Number :
LBQ-III
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Payment Terms :
L/C,T/T,Western Union,MoneyGram,,D/A,D/P,WeChat
Supply Ability :
1200Sets/ year
Delivery Time :
8-20 work day
Packaging Details :
packing bag
Price :
US $201.00-359.00 / Set
Rated voltage :
AC220V、380V
Limited test voltage :
below AC250V
Leakage current range :
30、50、75、100、150、200、250、300、500、1000mA
Leakage operating time range :
0-799ms
Leakage current accuracy :
1 class
Outside dimension :
195×101×42mm
Description

Relay Protection Tester

0 ~ 1000mA AC Hand-Held Leakage Protection Switch Tester Equipment

Product introduction

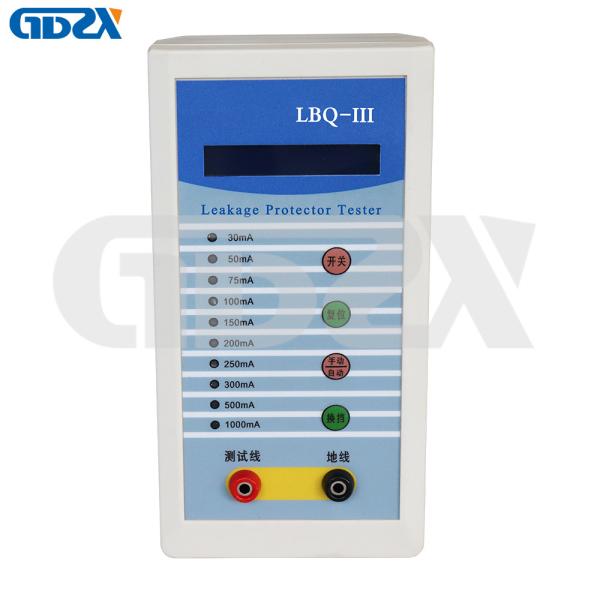

LBQ-III Leakage Protector Tester is well designed and manufactured for online measuring the leakage operating current, leakage non-operating current, leakage operating time of the leakage protector; adopt 16 characters blue display, it is convenient and intuitive.

The range of leakage current is 0~1000mA, range of the leakage operating time is 0~799ms. It is a product with high accuracy, small size, light weight, exquisite appearance, easy to carry, is an ideal tool for a variety of leakage protector in site or in laboratory testing.

LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester

Features

1. Handheld type, small and esay to operate

2. Can measure single phase or three phase all kinds of leakage protector

3. Auto test leakage operating current

4. Directly test leakage operating time

5. LCD display, intuitive reading

LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester

Technical Indicators
Rated voltage AC220V,380V
Limited test voltage below AC250V
Leakage current range 30,50,75,100,150,200,250,300,500,1000mA
Leakage operating time range 0-799ms
Leakage current accuracy 1 class
Operating time display accuracy 0.5%(+-2d)
Working environment temperature 0 centigrade -40 centigrade
Working environment relative humidity less than 85%
Outside dimension 195*101*42mm

Company introduction

Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

LBQ-III 1000mA AC220V 380V Handheld Leakage Current Tester，Leakage protector tester

Service and Warranty

Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

PACKING AND SHIPPING

(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
