BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
Specifications
Brand Name :
GDZX
Model Number :
BY2571
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Payment Terms :
L/C,T/T,Western Union,MoneyGram,D/A,D/P
Supply Ability :
1200Set/year
Delivery Time :
7-20 work day
Packaging Details :
packing bag
Resistance :
0～2Ω(10mA)，2～20Ω(10mA)，20～200Ω(1mA)
Relative humidity :
≤85%RH
Voltage :
AC 0～30V
Maximum power dissipation :
≤2W
Temperature :
0℃～+45℃
Host machine size :
220×200×105mm3
Weight :
≤1.4kg
Description

Earth Insulation Tester

Newly Developed Digital DC /AC Grounding / Earth Resistance Tester

Product introduction

BY2571 Earth Resistance Tester applies to power industry, post and telecommunications, railway, communications, mining and other sectors to measure the grounding resistance of the various devices, and the conductor resistance of low resistance; this instrument can also measure soil resistivity and ground voltage.

The instrument is a newly developed earth resistance tester, which abandons the traditional way of generating electricity by hand operation, uses advanced middle-large scale integrated circuits and applies DC/AC transformation technology to combine three-terminal measurement method and four-terminal measurement method into one model.

BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester

Features

1. High-strength aluminum alloy shell body, the circuit equips with phase locked loop and switched capacitor filter, based on which the instrument play an effective role in shielding power frequency and radio frequency interference.

2. DC/AC converter can transform DC current into AC low-frequency constant current for the measurement.

3. Auxiliary grounding resistance are allowed to change in the range of 0 ~ 2KΩ (RC), 0 ~ 40KΩ (RP), that will not affect measurement results.

4. No need manual adjustment to zero, with three and a half bits LCD display, the instrument can be used for measuring the grounding resistance, low conductor resistance, soil resistivity and AC voltage to ground.

5. If tested loop encounter failure, the screen displays "1" indicating overflow, which consistent with conventional measurement practices.

BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester

Technical Indicators
Operating Conditions Temperature 0℃～+45℃
Relative humidity ≤85%RH
Measuring range and constant current value (virtual value) resistance 0～2Ω(10mA),2～20Ω(10mA),20～200Ω(1mA)
voltage AC 0～30V
Measurement accuracy and resolution accuracy 0～0.2Ω≤±3%±1d
0.2Ω～200Ω≤±1.5%±1d
1～30V≤±3%±1d
Resolution 0.001Ω,0.01Ω,0.1Ω,0.01V
Measurement errors caused by auxiliary
grounding resistance and ground voltage		 Auxiliary grounding resistance RC (between C1 and C2) <1.8KΩ
RP (between P1 and P2) <40KΩ error ≤ ± 5%
Ground voltage (power frequency RMS) ≤ 5V error ≤ ± 5%
Power supply and power dissipation Maximum power dissipation ≤2W
DC 6.8V-9V 7*#5 rechargeable battery
AC 220V/50Hz
Main machine size and weight 220×200×105mm3 ≤1.4kg

Company profile

Wuhan GDZX Power Equipment Co.,Ltd.is a manufacturer of power test equipment, integrating design , production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.

BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance TesterBY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester

Service and Warranty

Service

* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.

* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.

Packaging & Delivery

(1)We will ship products within 8-20 working days after the receipt of confirmation of your payment.

(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.
If you are interested to this BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester, please feel free to contact us.
BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester

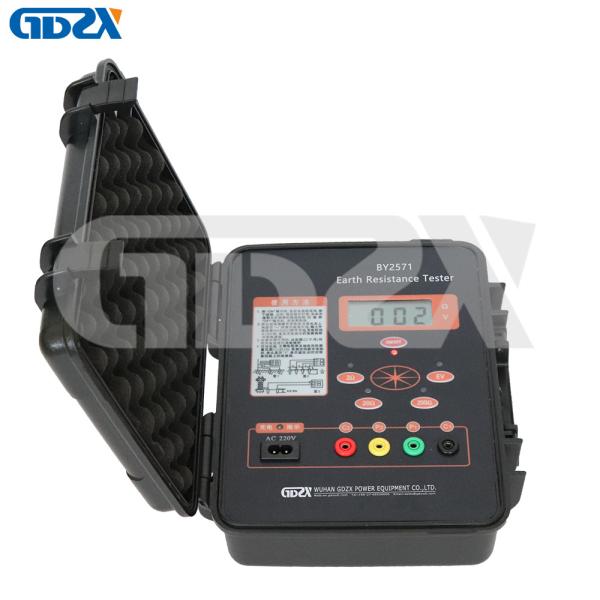

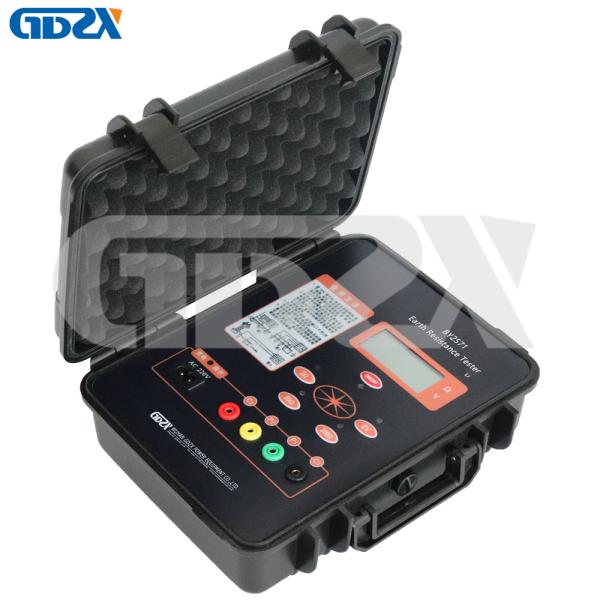

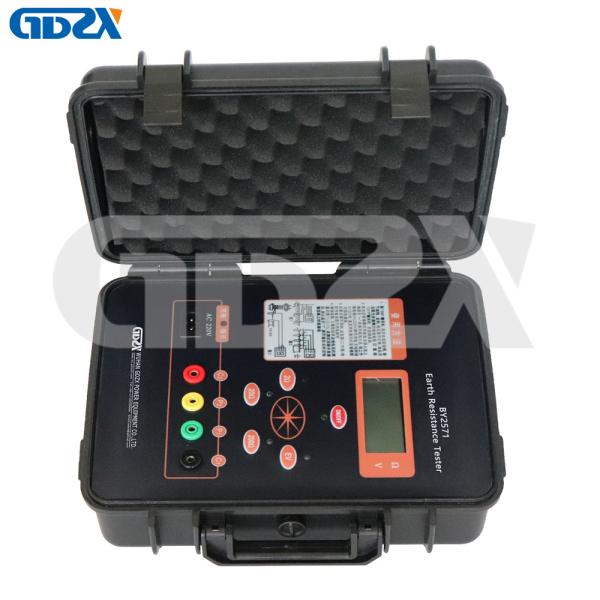

Product pictures

BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance TesterBY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester

BY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance TesterBY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance TesterBY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance TesterBY2571 DC/AC Transformation Technology Transformation Digital Earth Resistance Tester
