High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
Specifications
Brand Name :
GDZX
Model Number :
ZXKC-MH
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
1599 USD/set
Supply Ability :
100 Piece/Pieces per Month
Delivery Time :
7
Packaging Details :
wooden case
Power input :
AC220V ± 15%; 50Hz
Opening power supply :
DC10 ~ 270V / 10A
Closing power supply :
DC10 ~ 270V / 10A
Energy storage power supply :
DC10 ~ 270V / 10A
Number of jobs :
1 independent of each other
Maximum bearing current :
20A
Warranty :
1 Year
Description

Factory Developed High Voltage Switching Machinery Life Test Equipment


Product Introduction :

The instrument is designed for the running in test of high-voltage switch, and carries out parameter setting and timing control based on intelligent controller. The parameter setting is intuitive and the timing control is simple, which greatly improves the working efficiency. In addition, it overcomes the shortcomings of poor control ability of running in using time relay in the past and easy to burn the opening and closing coils, and effectively protects the integrity of high-voltage switch. The instrument is simple to operate and is an ideal tool for the design and test of high voltage switch.

Main characteristics:

  • Operation function: single opening, single closing, low voltage test (40 ~ 120% UN rated voltage) and life test can be carried out according to preset parameters.

  • The running in life test has memory function. When the running in times of the switch do not reach the set times and are interrupted due to unexpected power failure and other faults, the next test can choose the last breakpoint position to continue the test or retest (reset and reset).

  • Time interval between closing and opening, setting range: 0.05-999 seconds.

  • Closing and opening power output time, setting range: 50-999 milliseconds.

  • The operation power of each station is independent, with DC output (AC and DC optional)

  • Sound the alarm according to the combination and separation, and stop the action.

  • Hardware display of three-way fracture status.

  • The standard closing and opening operation cycle can be set according to the national and international standards, and the opening-t1-closing, closing-t1-opening and opening-t1-closing-t2-opening can be set.

Technical indicators:

1. Power input: AC220V ± 15%; 50Hz
2. The maximum withstand current of internal contact is 20A.
3. Opening power supply: DC10 ~ 270V / 10A electric voltage regulation
4. Closing power supply: DC10 ~ 270V / 10A electric voltage regulation
5. Energy storage power supply: DC10 ~ 270V / 10A electric voltage regulation
6. Number of jobs: 1 independent of each other


For more information , click this link to send us inquiry now !

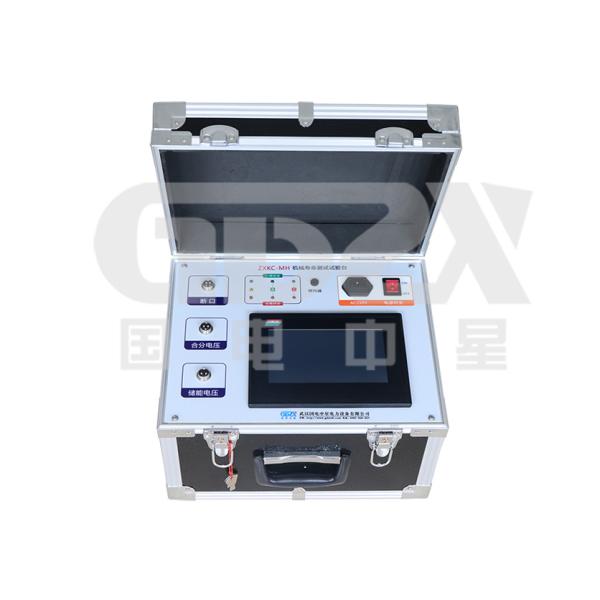

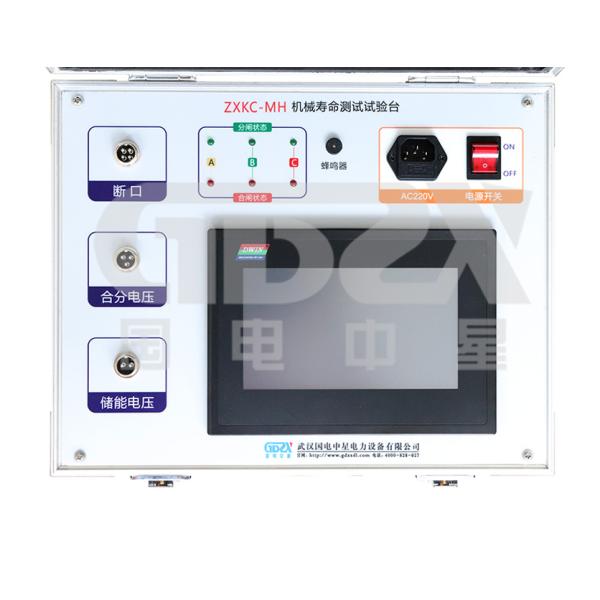

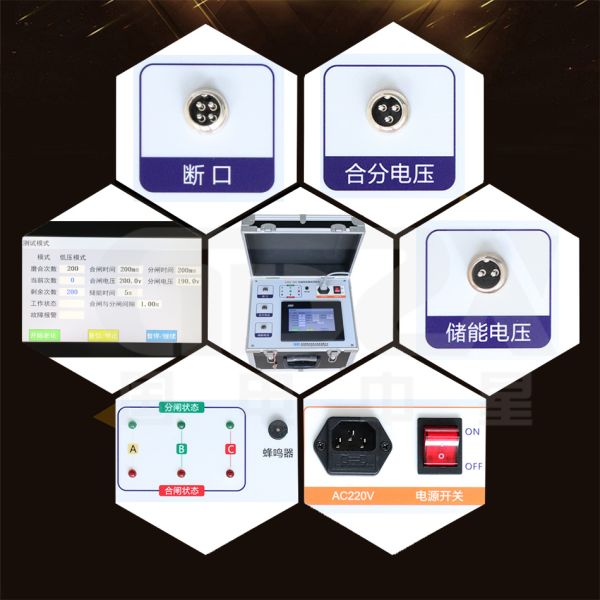

Product pictures:
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function

Our company :

Wuhan GDZX Power Equipment Co.,ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Peru , Malysia, Vietnam ,Singapore and so on.
Our main products are High voltage tester , Cable Fault Locator, Power Quality Analyzer, Standard Power source , Testing Transformer and so on.
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function


Packaging & Delivery
1. Delivery within 8-15 work days
2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
3. Experienced and professional logistic agent .
High Voltage Switch Life Tester With Memory Function

High Voltage Switch Life Tester With Memory Function
High Voltage Switch Life Tester With Memory Function
