Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Specifications
Brand Name :
GDZX
Model Number :
XP-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1Set
Price :
US $489.00-$1000.00/Set
Payment Terms :
L/C, T/T
Supply Ability :
1200sets/year
Delivery Time :
8-10 working days
Packaging Details :
Packing wooden case or carton
Product name :
SF6 Gas leak detector
Measuring Method :
mechanical pump style
Power supply :
3V DC;two "C" cell alkaline batteries
Leakage level indication :
18 levels
Ultimate sensitivity :
<3g/year
Response time :
Instantaneous
Operating temperature :
30°to 125°F (0℃ to 52℃)
Battery life :
30 hours
Size :
22.9x6.5x6.5cm
Weight :
560g
Description

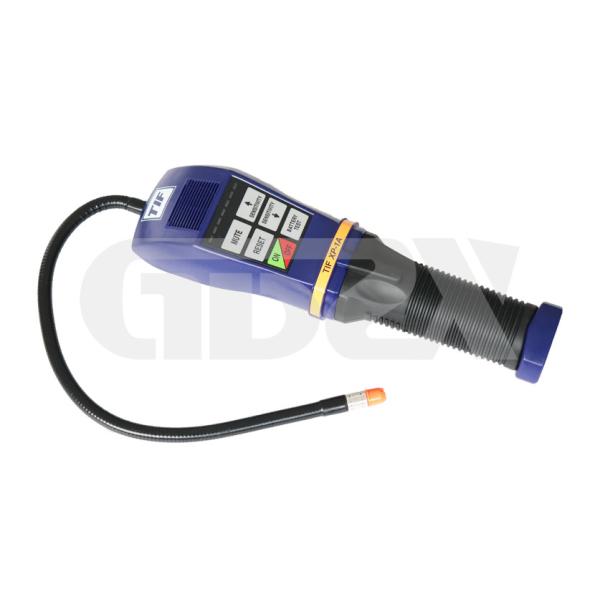

XP-1A Hand-held SF6 Gas Leak Detector
Product introduction

XP-1A Hand-held SF6 Gas Leak Detector is mainly applied for the leaking finding of equipment and container which are filled with the SF6 and other halogen gas in the ministry of water conservancy and electric power, the manufacturing engineering of electronic device, and the metallurgy of iron and steel, the petrochemical industry, the railway transportation, the mining industry, the extinguisher apartment and the atomic physics research institute.

Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld

Features

1. Detecting SF6 gas detection of the power switch;
2. Detecting leakage of various HFC, CFC and HCFC refrigerants;
3. The high efficiency pump inside the probe can reduce the response time of the instrument;
4. No calibration is required and the warm-up time is short;
5. Leakage can be found even in a polluted atmosphere;
6. Ultra-sensitivity: At an annual leak rate of 4.6 g/year, it can still react to a very small amount of leakage;
7. LED leakage loss vector indicator light, there is a reset button on the probe handle, a large amount of refrigerant will not "poison" the probe;
8. The narrow and flexible stainless steel probe can detect difficult areas.

Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld


Technical Indicators

Measuring Method mechanical pump style
Flexible probe length 35.5cm
Leakage level indication 18 levels
Sensitivity adjustment level 7 levels
Reset function yes
Mute key function yes
battery test function yes
Ultimate sensitivity <3g/year
Response time Instantaneous
Reset time 1 second
Warm up time Approximately 2 Seconds
Operating temperature 30°to 125°F (0℃ to 52℃)
Size 22.9x6.5x6.5cm
weight 560g
Power supply 3V DC; two "C" cell alkaline batteries
Battery life 30 hours
Sensing tip life Approx. 20 hours
Certifited to CE,SAE J1627

Product pictures

Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld

Test cases
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld

Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld


Company introduction
Wuhan GDZX Power Equipment Co.,Ltd. is a manufacturer of power test equipment, integrating design, production and sales, providing complete solutions for high-voltage testing and electrical testing services for various power users.The main products include:AC series resonance test device, high voltage test equipment, transformer test equipment, secondary protection / switch test equipment, cable fault tester, arrester test equipment, power metering equipment, standard source series and so on. There are many kinds of products and complete models.
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset HandheldPortable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld
Service and Warranty
Service
* Provide professional consulting service; dedicated salesman and professional technical engineer to answer customer questions.
* Ensure customer get the detailed information about the product in hand.
* Reasonable price, we trust our customers should get the worth what they paid. Quotation stamped and confirmed by Manager.
* Welcome customers visit.
* The contract and the technical agreement to sign by both parties.
* Being trustworthy, follow the requirements and ensure successful implementation of signed contracts and technical agreements.
* Focus on communication, actively communicate with users, take notes of user’s questions and schedule, provide the necessary technical support.
* Move quick and efficient, professional on delivery, installation, debugging, training and others.
Warranty
* We maintains 100% customer satisfaction, please give us feedback if you fell anything wrong with the product, we will make it right for you.
* Our products are guaranteed with one year warranty and life-long tech support.
* Provide solutions within 24 hours when there is problems feedback from customer.
Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld

PACKING AND SHIPPING
(1)We will ship products within 5-20 working days after the receipt of confirmation of your payment.
(2)All products will be well packed by robust carton or wooden box so as to ensure goods can arrive safely.
(3)Multiple shipping methods including express, sea freight, railway and so on for your choice, competitive shipping method will be advised to you.
(4)If you go with your own forwarder, we will provide all necessary documents for customs clearance.
(5)After shipping, we will remain attentive till goods well received.
If you need detailed specification, please feel free to contact us.Portable Fully Automatic SF6 Gas Leak Detector DC 3V Reset Handheld

FAQ:

1.Q: Are you trading company or manufacturer?
A: We are manufacturer.

We have R&D department, OEM& ODM services available.

2.Q: How long is your delivery time?
A: We usually arrange shipment within 5-7 working days after checking the payment. However, for example, the delivery time of the complete set of test devices will be a little longer, which needs to be checked in real time.

3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but not for free; you need pay charge and the cost of freight.

4.Q: What is your term of payment?
A: Payment<=5000USD, 100% in advance. Payment>5000USD, 30% T/T in advance, balance before shipment.

5.Q: What is the payment method?
A: We can accept Bank Transfer, T/T, L/C.

6.Q: Will you provide OEM service?
A: OEM & ODM services available

7.Q: How long is the product warranty?
A: 1 year.
