LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
Specifications
Brand Name :
GDZX
Model Number :
LBQ-II
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
135 USD/set
Supply Ability :
100 Piece/Pieces per Month
Delivery Time :
7
Packaging Details :
wooden case
Rated voltage :
AC220V、380V
Limited test voltage :
below AC250V
Leakage current range :
15、30、50、75、100、150、200、250、300、500mA
Leakage operating time range :
0-799ms
Leakage current accuracy :
1 class
Operating time display accuracy :
0.5%（±2d）
Working environment temperature :
0℃-40℃
Working environment relative humidity :
＜85%
Outside dimension :
195*101*42mm
Warranty :
1 Year
Description

AC220V 380V 500mA Handheld Single Phase Three Phase Leakage Protector Tester


Product Introduction :

Leakage Protector Tester is well designed and manufactured for online measuring the leakage operating current, leakage non-operating current, leakage operating time of the leakage protector; adopt 16 characters blue display, it is convenient and intuitive. The range of leakage current is 0~500mA,range of the leakage operating time is 0~799ms. It is a product with high accuracy, small size, light weight, exquisite appearance, easy to carry, is an ideal tool for a variety of leakage protector in site or in laboratory testing.

Main characteristics:

  • Handheld type, small and esay to operate

  • Can measure single phase or three phase all kinds of leakage protector

  • Auto test leakage operating current

  • Directly test leakage operating time

  • LCD display, intuitive reading

Technical indicators:

1. Rated voltage: AC220V,380V

2. Limited test voltage: below AC250V

3. Leakage current range: 15,30,50,75,100,150,200,250,300,500mA

4. Leakage operating time range: 0-799ms

5. Leakage current accuracy: 1 class

6. Operating time display accuracy: 0.5%(±2d)

7. Working environment temperature: 0℃-40℃

8. Working environment relative humidity: ＜85%

9. Outside dimension: 195*101*42mm


For more information , click this link to send us inquiry now !

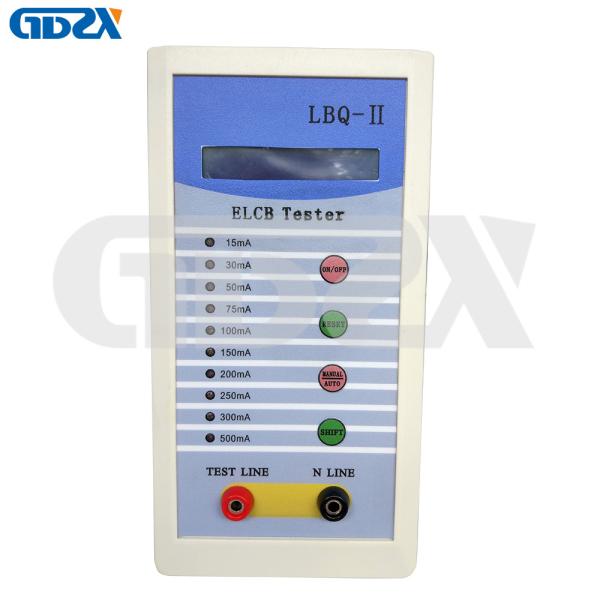

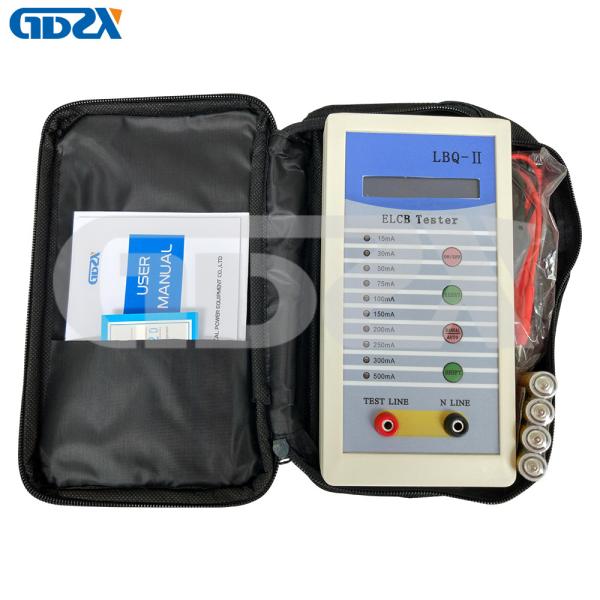

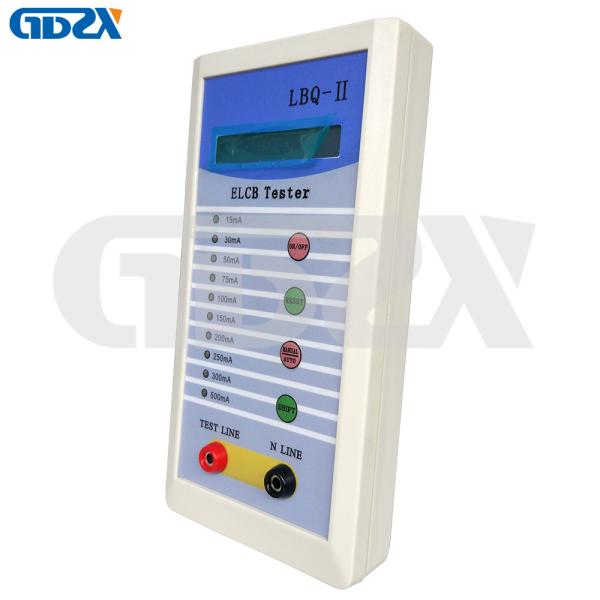

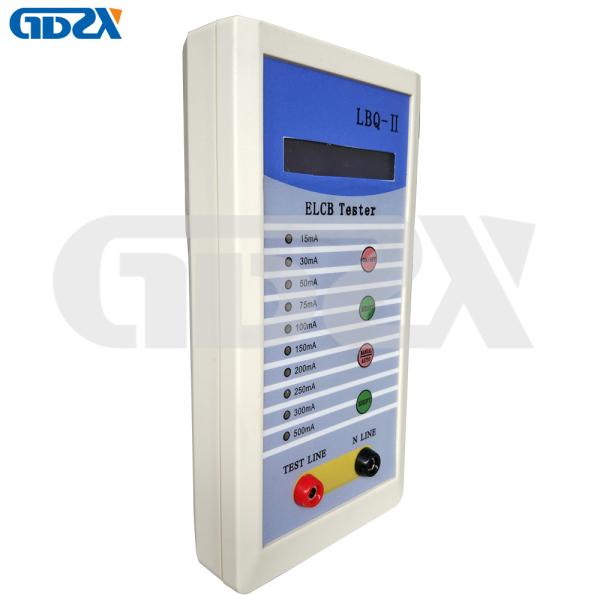

Product pictures:
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester

Our company :

Wuhan GDZX Power Equipment Co.,ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Peru , Malysia, Vietnam ,Singapore and so on.
Our main products are High voltage tester , Cable Fault Locator, Power Quality Analyzer, Standard Power source , Testing Transformer and so on.
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester


Packaging & Delivery
1. Delivery within 8-15 work days
2. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
3. Experienced and professional logistic agent .
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester

LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
LBQ-II Handheld AC220V AC380V 500mA Leakage Current Tester
