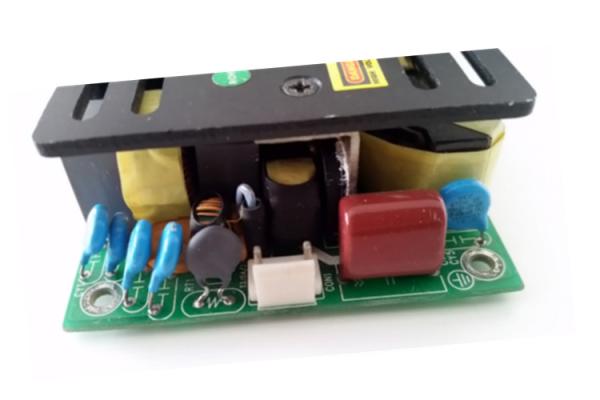

Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Industrial Instrument Power Supply 24v 4.2A Bare Board / Medical Power Supply
Specifications
Brand Name :
G·T
Model Number :
GTK-10S3.3III
Place of Origin :
China
MOQ :
1 PCS
Price :
USD35-40PCS
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
10-15 working days upon order quantity
Packaging Details :
Neutral factory box
Color :
as shown in the figure
output voltage :
DC24V/4.2A
input frequency rangency :
47 ~ 63Hz
size :
127X76X30.5mm
input voltage :
AC100-240V
Description

GTK-125-24 switching power supply 24V4.2A bare board industrial control power medical power supply

Model:GTK-125-24

input voltage:AC100-240V

output voltage:DC24V/4.2A

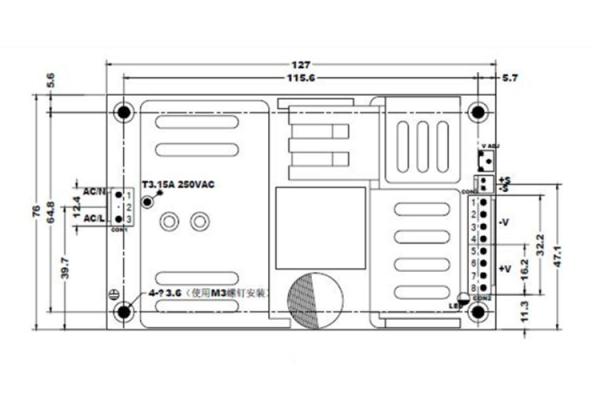

size:127X76X30.5mm

Product features:

1: General AC input range / Full range

2: High power density, high efficiency and high reliability

3: Overcurrent / overvoltage / short circuit

4: Ultra wide working temperature range (-20 C ~60 C)

5: Build-in remote sense function

6: All electrolytic capacitors are used at 105 C for long life imported electrolytic capacitors.

7: 100% full load aging test

parameter:

Model PSF-125-24
output output voltage DC24V
Output current 5.2A
Output current range 0~5.2A
Ripple 100mV
Output voltage adjustment range ±10%
stabilized voltage precision ±2.0%
Voltage adjustment rate ±0.5%
Load regulation rate ±2.0%
Output startup time ≤1.2S (230Vac ) ≤2.5S (115Vac )
Output hold time ≥17mS(115/230Vac)
temperature coefficient ±0.03%/℃
Input input voltage 90Vac~264Vac,127Vdc~370Vdc
Input frequency 47Hz--63Hz
Power factor (typical value) PF＞0.98/115VAC PF＞0.93/230VAC
Efficiency (typical value) 82%/115Vac 84%/230Vac
Start the impact current (typical value) 60A@230Vac 30A@115Vac
leakage current <3.5mA
Protection function Overcurrent protection 105%~150% of rated output current, hiccup mode, auto recovery
Overvoltage protection 120%~150% of rated output voltage,hiccup mode
Short circuit protection Auto recovery
work environment Working temperature and humidity -20℃~70℃; 20%~90%RH
Storage temperature and humidity -40℃~85℃; 10%~95%RH
Safety and EMC standards safety standards GB4943-2001; EN60950-1:2006
Insulation strength Primary-Secondary:3.0KVac;≤10mA .Primary-PG:1.5KVac;≤10mA .Secondary-PG:0.5KVDC；≤10mA .
Insulation impedance 100M ohms
electromagnetic interference EN55022(CISPR22)ClassB
harmonic current EN61000-3-2,
Electromagnetic interference resistance EN61000-4-2,3,4,5,6,8,11;ENV50204
Other MTBF (MIL-HDBK-217F) More than 100,000Hrs (25℃)
