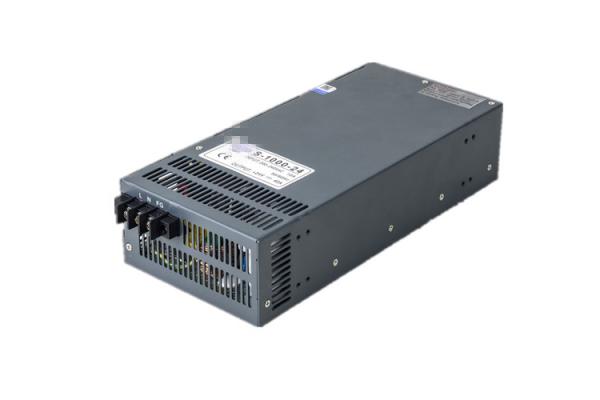

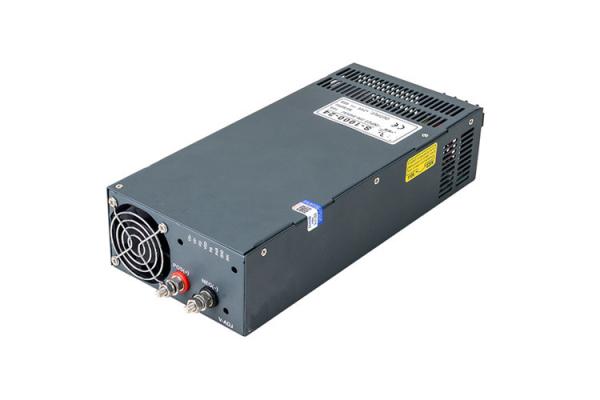

24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
Specifications
Brand Name :
G·T
Model Number :
GTK-A-1200-24
Place of Origin :
China
MOQ :
1 PCS
Price :
USD80-120 PCS
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
10-15 working days upon order quantity
Packaging Details :
Neutral factory box
NAME :
industrial power supply
Warranty :
2 Years
Size :
248mm*158mm*87mm
Model :
GTK-A-1200-12
Description

Industrial Power supply / 24 V DC Power Supplies High Efficiency

Parameter:

Input Voltage Range: 90~132VAC;180~264VAC
AC current: 6.5A At 115Vac ; 3.2A At 230Vac
Frequency: 50 / 60Hz
Inrush Current: 40A / 230Vac
Leakage Current: <0.5 mA / 240Vac
Output Voltage: 24.0Vdc
Output Voltage Range: 21.60Vdc to 26.40Vdc
Output Current: 14.60A
Output power: 350.4W (Max)
Line regulation: ±1%
Load regulation: ±5%
Set up time, Rise time, Hold-up time: 50ms,50ms,20ms
Ripple and Noise Test Condition : <120 mVp-p
Efficiency: ＞78%
Over current protection: Over Current limit ≤2.0A (Max) in CC Mode
Output Short Circuit Protection: Can be Shorted without damage and auto recovery
Environment
Working Temp.: 0~40℃
Working Humidity: 20%~90% RH non-condensing
Storage Temp. & Humidity: -20℃~85℃, 10%~95% RH
Reliability
Hi-Pot Testing Voltage : I/P-O/P: 3KVAC, I/P-FG:1.5KVAC；O/P-FG:0.5KVAC 1min
Isolation resistance: I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
Safety Standard : EN60950
EMI Standard : EN55022B
Safety Approval:
Mechanical Characteristics
Size: L248* (W)158 * (H)87mm

Applications:

24V AC DC Power Supply High Efficiency Industrial DC Power Supply 50 / 60Hz
