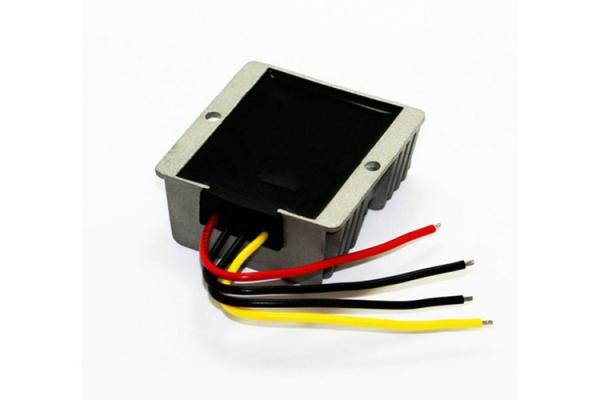

GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
GTK-0936 12V 24V To 13.8 Volt Power Supply 13.8a Automatic Lift Off Voltage Supply
Specifications
Brand Name :
G·T
Model Number :
GTK-12-48- 100
Place of Origin :
China
MOQ :
1 PCS
Price :
USD13-15 PCS
Payment Terms :
T/T
Supply Ability :
500 pcs per month
Delivery Time :
10-15 working days upon order quantity
Packaging Details :
Neutral factory box
Color :
as shown in the figure
Warranty :
2 Years
Size :
74*74*32MM
Description

12V24V to 13.8v voltage stabilizer 13.8v8a automatic lift-off voltage supply

Specification:

Model GTK-0936
The properties of module Non-isolated BUCK
Input Voltage DC12V-24V(9-36V optional)
Output Voltage DC13.8V
Output Current 2A -10A (optional)
Output Power 110W-138W (optional)
Conversion Efficiency ＞93％
Ripple 50mV
Power Consumption 25mA
Working Temperature -40℃～+85℃(industrial-grade)
Two Input red lines 13～14MM
Length of line 50 CM

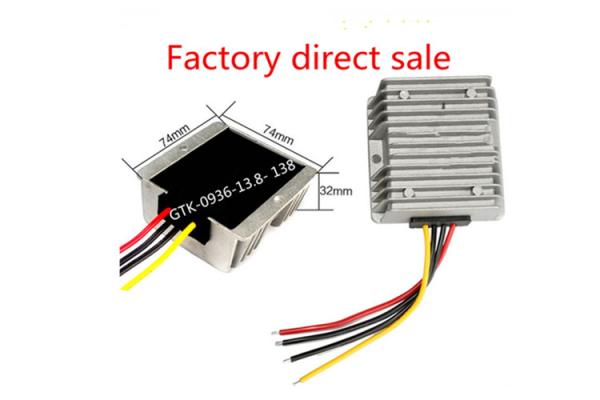

Size and Weight 74*74*32 250g
Waterproof Rate IP67

Function: Protection of over current, over voltage, over temperature, short circuit

notice: No backconnection protection

Input Voltage Output Voltage Output Current Output Power
DC12V/24V DC13.8V 8A 110W
DC12V/24V DC13.8V 10A 138W
