LT tires of LT235/85R16 with typical AT pattern Light truck tires 235 85 16
Application
The light trucks, as the red cells of the city, the important segment of the urban supplying chain, are accountable to carry the subsistence goods for people living in the city, and take away the garbage. These light trucks need LT tires with the features that suitable for the city and regional roads. But there are some vehicles traveling between the paved roads and the dirty, tough un-surfaced roads, which including muddy constructional sites, mining areas, muddy country paths and non-paved mountain trails and other off-roads conditions.
For these vehicles, it is necessary that to equip the all terrain tires with wild and aggressive pattern which would help your light trucks to cross over the gravel, stone, muddy, soil and sandy off-road trails as well as driving on the paved road.
The typical all terrain tread, pattern model of AN906 is designed for the light trucks which running both paved road and off-road condition. It is available 18 sizes ranging 15-18 inch for you choosing.
Specification
Size | LI/SI |
Tread Depth |
standard Rim |
New tire inflated Dimensions(mm) |
Max load(Kg) |
||
Section Width |
Overall Diameter |
Single | Dual | ||||
LT235/75R15 | 104/101R | 11.5 | 6.5J | 235 | 733 | 900 | 825 |
31x10.5R15LT | 109R | 12.0 | 8.5J | 268 | 775 | 1030 | |
LT215/85R16 | 115/112R | 11.0 | 6.0J | 216 | 772 | 1215 | 1120 |
LT225/75R16 | 115/112R | 11.0 | 6.0J | 223 | 744 | 1380 | 1260 |

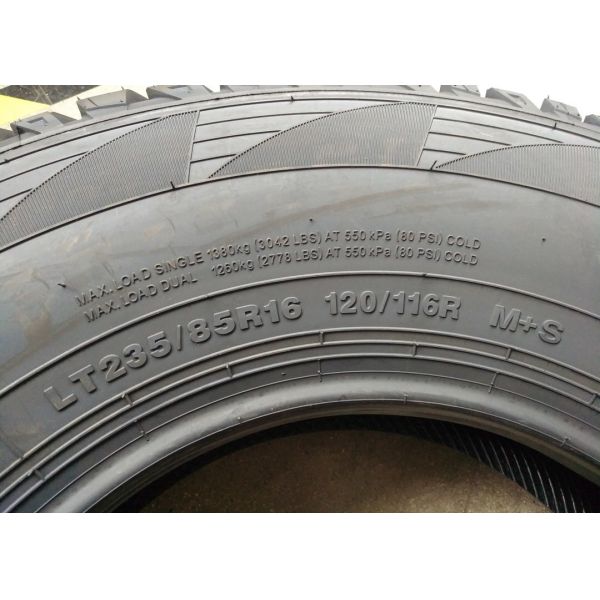

LT235/85R16 | 120/116R | 12.0 | 6.5J | 235 | 806 | 1380 | 1260 |
LT245/75R16 | 120/116R | 12.0 | 7.0J | 248 | 774 | 1150 | 1400 |
LT265/75R16 | 123/120R | 12.0 | 7.5J | 267 | 804 | 1550 | 1400 |
LT285/75R16 | 122/119R | 12.0 | 8.0J | 286 | 834 | 1500 | 1360 |
LT305/70R16 | 124/121R | 12.0 | 9.0J | 311 | 834 | 1600 | 1450 |
LT315/75R16 | 121/118R | 12.0 | 8.5J | 313 | 878 | 1450 | 1320 |
LT235/80R17 | 120/117R | 12.0 | 6.5J | 235 | 808 | 1400 | 1285 |
LT245/75R17 | 121/118R | 12.0 | 7.0J | 248 | 800 | 1450 | 1320 |
LT265/70R17 | 121/118R | 12.0 | 8.0J | 272 | 804 | 1450 | 1320 |
LT285/70R17 | 121/118R | 12.0 | 8.5J | 292 | 832 | 1450 | 1320 |
LT315/70R17 | 121/118R | 12.0 | 9.5J | 323 | 874 | 1450 | 1320 |
LT265/70R18 | 124/121R | 12.0 | 8.0J | 272 | 829 | 1600 | 1450 |
LT275/70R18 | 125/122R | 12.0 | 8.0J | 279 | 843 | 1650 | 1500 |
LT275/65R18 | 123/120R | 12.0 | 8.0J | 279 | 815 | 1550 | 1400 |
Speed index
Speed Index |
L | M | N | P | Q | R | S | T | H | V | ZR | W | Y | (Y) |
Km/h | 120 | 130 | 140 | 150 | 160 | 170 | 180 | 119 | 210 | 240 | (240) | 270 | 300 | (300) |
Features

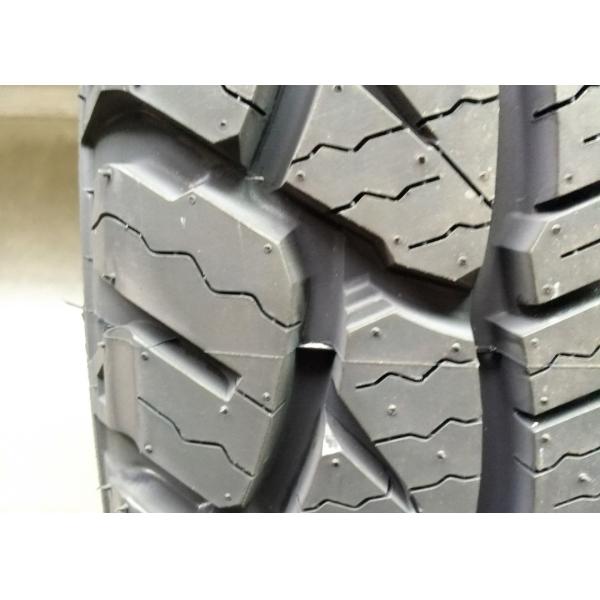

The block treads design with wave type sipes provide excellence traction on off-road surface, and reduce tread damage.
Optimized tire carcass and reinforced shoulder pattern design promote the traction and cornering performance.
High void rate and opened shoulder design improves the ability going through the muddy surfaces, and self-cleaning performance.
Applied with special tread compound design with long mileage providing, and saves the fuel consumption.
4 curved main grooves design is benefited the grip performance on the irregular trails.
Robust sidewall and protection sidewall promotes the resistance of shoulder damage.
