Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Reinforced 11R 22.5 Truck Tires , Low Rolling Resistance Tires 4 Zigzag Grooves
Specifications
Model Number :
11R22.5
Certification :
ECE/DOT/GCC/INMETRO/CCC
Place of Origin :
China
MOQ :
200Pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
Negotiable
Packaging Details :
No Packing
Application :
Trucks & Coaches
Main Material :
Natural Rubber, Carbon black, Steel
Axle :
Steer Axle
Color :
Black
Tube :
Tubless
Working Condition :
Highway & Good Roads
Rim Diameter :
17.5 Inch, 19.5 Inch, 22.5 Inch
Groove :
4 Straight Grooves
Description

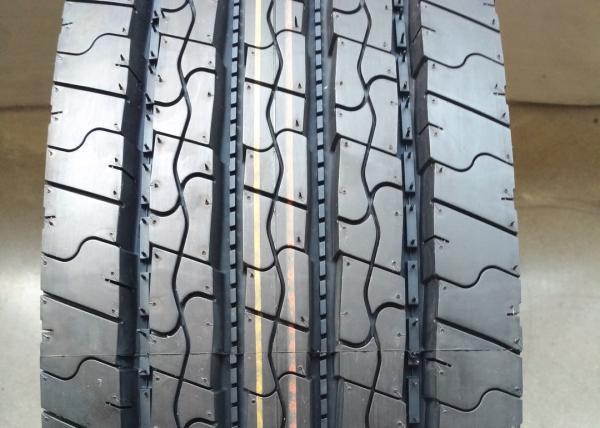

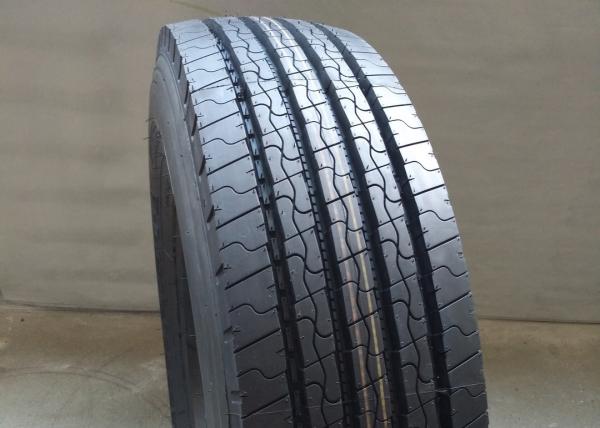

Truck tire of 11R22.5 with 5 ribs tread & 4 zigzag grooves designed for the trucks on highway

Application

As the excellent tire supplier for many years, WALSTONE have a lot of experienced in tire picked, and the spirit of “more professional will be better” help us to discover the newly utility and value of the tire. This tire of 11R22.5 is genuine parts for the buses and travel coach of many coach manufacturers, and it is also suitable the steer axle of the truck that running on highway and good roads.

The newly compound of the tire help the tire to resist the heat build-up during the vehicle running, and was benefited the tire integrity and ability of retreaded. So this size of 11R22.5 with four straight and zigzag grooves for the truck that running on the highway have excellent worn resistance.

The four straight and zigzag grooves designed are to provide precisely steering, well control and safety even under critical conditions, is benefited for draining, and well performance of gripping on the dry and wet roads.

Innovative and reinforced compound of tread is featuring well regular wear and high mileage. And the widen shoulder designed for this size tire of 11R22.5 for the truck on highway, provide good wear resistance.

Specification

Size Ply

Load

Index

Speed

index

Standard

Rim

Max

load(Kg)

New tire inflated

Dimensions(mm)

 Tube

Operation

Norm
Single Dual

Section

Width

Overall

Diameter
9.5R17.5 14 129/127 L 6.75 1850 1750 240 842 TL ETRTO
245/70R17.5 16 136/134 M 7.50 2240 2120 248 789 TL ETRTO
205/75R17.5 12 122/120 M 6.00 1500 1400 204 753 TL ETRTO
205/75R17.5 14 124/122 M 6.00 1600 1500 204 753 TL ETRTO
215/75R17.5 14 126/124 M 6.00 1700 1600 212 767 TL ETRTO
215/75R17.5 16 135/133 J 6.00 2180 2060 212 767 TL ETRTO
235/75R17.5 16 141/140 M 6.75 2575 2500 233 797 TL ETRTO
8R19.5 12 124/122 K 6.00 1600 1500 203 859 TL TRA
8R19.5 12 127/125 L 6.00 1750 1650 203 859 TL GB
225/70R19.5 12 125/123 M 6.75 1650 1500 226 811 TL ETRTO
225/70R19.5 14 128/126 L 6.75 1800 1700 226 811 TL ETRTO
245/70R19.5 14 133/131 L 7.50 2060 1950 248 839 TL ETRTO
245/70R19.5 16 136/134 L 7.50 2240 2120 248 839 TL ETRTO
285/70R19.5 16 146/144 M 8.25 2800 2650 283 895 TL ETRTO
305/70R19.5 16 144/141 M 9.00 2800 2575 305 923 TL ETRTO
305/70R19.5 18 146/143 M 9.00 3000 2725 305 923 TL ETRTO
10R22.5 14 141/139 M 7.5 2575 2430 254 1019 TL TRA
10R22.5 16 144/142 L 7.5 2800 2650 254 1019 TL ETRTO
11R22.5 14 144/142 M 8.25 2800 2650 279 1054 TL TRA
11R22.5 16 146/143 M 8.25 3000 2725 279 1054 TL TRA

Speed index

Speed

Index

 B C D E F G J K L M N P Q R
Km/h 50 60 65 70 80 90 100 110 120 130 140 150 160 170

Features

This steer axle tire of 11R22.5 was designed for the trucks on highway and other good roads.

A latest safe and low heat build-up compound applied in tread, promote the wear resistance.

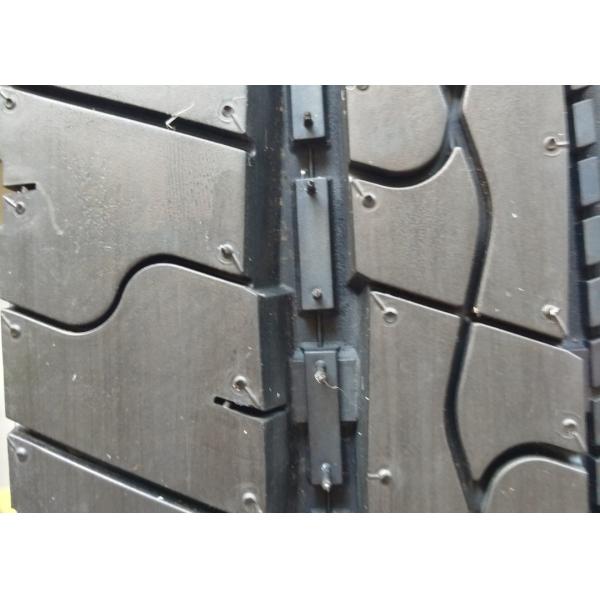

Four straight main grooves and wave type sipes design with more fuel efficiency providing, and improve the even wear, water draining and comfort ride.
