Specifications
Model Number :
9R22.5
Certification :
ECE/DOT/GCC/INMETRO/CCC
Place of Origin :
China
MOQ :
200Pcs
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
Negotiable
Packaging Details :
No Packing
Type :
Travel Coach Tires
Size :
9R22.5
Width :
205mm-280mm
Color :
Black
Material :
Natural Rubber, Carbon black, Steel
Working Condition :
Highway & Good Roads
Applicable Vehicle :
Coaches & Buses
Casting Structure :
All Steel Radial Tire
Description

The Travel Coach Tires of 9R22.5 Being Genuine Tire Parts of the KINGLONG

Features

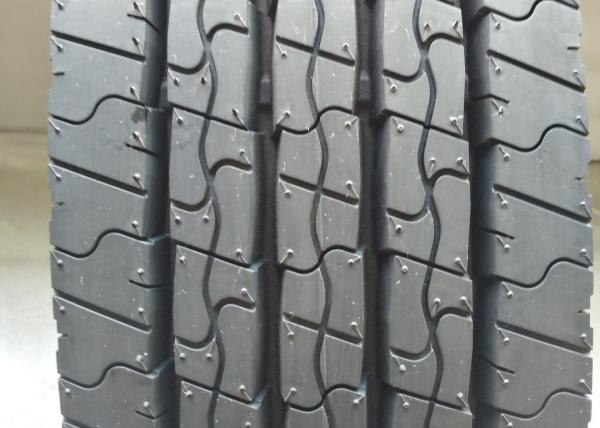

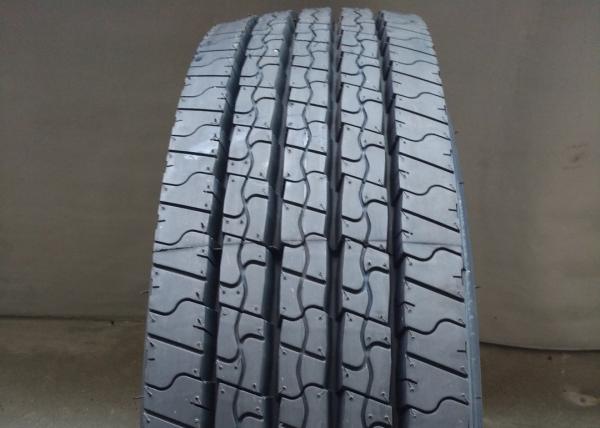

The travel coach tire of 9R22.5 size with 4 straight grooves which being well performance in water drainage and providing low rolling resistance, is typical design of tread pattern for the travel coaches and the urban buses running on highway and the other good pavements, there are 11 size being available including 17.5-, 19.5- and 22.5-inch rim diameters, the widths of the tread ranging from 205mm to 280mm.

The 4 straight grooves of tread pattern providing well performance of balancing, and increase the comfort ride for the driver and passenger.

The tread compound being applied with low heat build-up material promotes the resisting of heat, and improves the travel tire’ wear tread to increase its service mileage.

The application of the various shape sipes on the surfaces of the tread pattern which improving the gripping on the wet roads and the performance in the traction, and increases comfort ride and the resisting against to the uneven wear.

And the tread compound having features of the low rolling resistance can provide lower fuel consumption to protect the environment.

Specification

Size Ply

Load

Index

Speed

index

Standard

Rim

Max

load(Kg)

New tire inflated

Dimensions(mm)

 Tube

Operation

Norm
Single Dual

Section

Width

Overall

Diameter
9.5R17.5 14 129/127 M 6.75 1850 1750 240 842 TL ETRTO
9.5R17.5 18 143/141 M 6.75 2725 2575 240 842 TL ETRTO
8R19.5 12 124/122 M 6.00 1600 1500 203 859 TL TRA
8R19.5 12 127/125 M 6.00 1750 1650 203 859 TL GB
8R22.5 14 130/128 M 6.00 1900 1800 203 935 TL ETRTO
9R22.5 14 136/134 M 6.75 2240 2120 229 974 TL TRA
10R22.5 14 141/139 M 7.5 2575 2430 254 1019 TL TRA
10R22.5 16 144/142 L 7.5 2800 2650 254 1020 TL ETRTO
11R22.5 14 144/142 M 8.25 2800 2650 279 1054 TL TRA
11R22.5 16 146/143 M 8.25 3000 2725 279 1054 TL TRA
11R22.5 16 148/145 M 8.25 3150 2900 279 1054 TL ETRTO

Speed index

Speed

Index

 B C D E F G J K L M N P Q R
Km/h 50 60 65 70 80 90 100 110 120 130 140 150 160 170

Application

A days-trip at the bizarre and stranger country, the most convenient method is taking travel coach which being advance in its high maneuverability and comfortable ride. It won’t be easy, but selecting the travel coach tire with high safety performance will be most importance thing.

Being tire servicer and supplier for the coach & bus manufacturers, WALSTONE have provided the professional, reliable and better tire service for many coach manufactures since 1995, won well reputation in the word of mouth.

The load range of this travel coach tire with size of 9R22.5 is G, is suitable for all positions of the travel coach which with 35+ seating and vehicles length being less of 9 meters, and is the genuine tire part for many coach model, such as XMQ6879Y and XMQ6821CY being produced by KINGLONG which is one of famous coaches and buses manufacturer of China.
