Radial ply truck tires 11.00R20 for short and medium distance haul
Feature

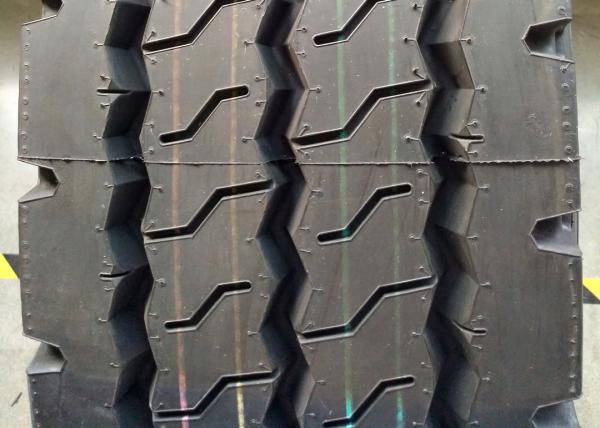

With three main zigzag grooves of tread pattern, this radial ply truck tire of 11.00R20 keeping the dominant features of combined pattern, which being ideal balance in the performance of traction, rolling resistance and tread wear, and some improving tire’ performances including wider tread width, the applied low heat build-up tread compound and high wear resistance material, is suitable for all wheel positions of short and medium haul trucks, and the trucks running on the highway and good roads. There are 11 sizes being available from 10.00R20 to 13R22.5.

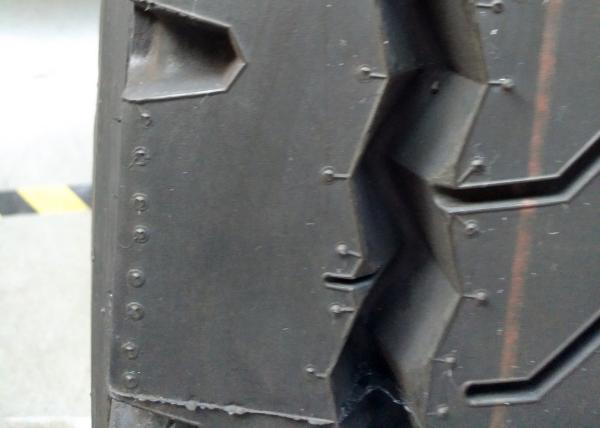

With more narrow zigzag grooves and closed shoulder designs, the radial ply truck tire of 11.00R20 has widened tread which improving the tire’ abrasion resistance, and promotes the service mileage.
Perfect combination of low heat build-up material and high wear resistance tread compound, the performance of heat dissipating and resisting wear is improvement.
The combined with zigzag tread pattern and lateral sipes design, promotes the wet gripping of this radial ply truck tires of 11.00R20.
Specification
Size | Ply |
Load Index |
Speed index |
Standard Rim |
Max load(Kg) |
New tire inflated Dimensions(mm) |
Tube |
Operation Norm |
||
Single | Dual |
Section Width |
Overall Diameter |
|||||||
10.00R20 | 18 | 149/146 | K | 7.50 | 3250 | 3000 | 278 | 1054 | TT | GB |
11.00R20 | 16 | 150/147 | K | 8.00 | 3350 | 3075 | 293 | 1085 | TT | GB |
11.00R20 | 18 | 152/149 | K | 8.00 | 3550 | 3250 | 293 | 1085 | TT | GB |
12.00R20 | 18 | 154/151 | K | 8.50 | 3750 | 3450 | 315 | 1125 | TT | TRA |
12.00R20 | 20 | 156/153 | K | 8.50 | 4000 | 3650 | 315 | 1125 | TT | GB |
11R22.5 | 16 | 146/143 | M | 8.25 | 3000 | 2725 | 279 | 1054 | TL | TRA |
12R22.5 | 16 | 152/148 | L | 9.00 | 3550 | 3150 | 300 | 1085 | TL | ETRTO |
12R22.5 | 18 | 152/149 | K | 9.00 | 3550 | 3250 | 300 | 1085 | TL | GB |
13R22.5 | 18 | 156/150 | L | 9.75 | 4000 | 3350 | 320 | 1124 | TL | ETRTO |
315/80R22.5 | 18 | 154/150 | M | 9.00 | 3750 | 3350 | 312 | 1076 | TL | ETRTO |
315/80R22.5 | 20 | 156/150 | L | 9.00 | 4000 | 3350 | 312 | 1076 | TL | ETRTO |
Speed index
Speed Index |
B | C | D | E | F | G | J | K | L | M | N | P | Q | R |
Km/h | 50 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 |
Application
The radial ply truck tires with zigzag tread pattern is wide spread being applied in field of the short and medium haul trucks, special in the mixed roads. In the past, the performance triangle of tire being constituted by the traction, rolling resistance and wear tread, when one of performances improved, the remaining benefits of the performance triangle were reduced.
The narrower grooves and closed shoulder design increase the width of tread which benefited the traction and gripping, and the application of high wear resistance tread compound to increase the abrasion resistance, so the whole performance of this radial ply truck tire is being improved, and it have strong adaptability in the field of short and medium distance haul.
