The Travel coach Tires 10R22.5, Economical Efficiency, the Urban Buses Tires 10 22.5
Features
The tire of 10R22.5 is main configured tire size for the urban buses. The stability and economy is always the main required for the tires which mounted on the buses running on the urban pavement, available size including 17.5-, 19.5- and 22.5-inch rim diameters, the tread widths rang from 205mm to 280mm.
The application of newly material which increasing the strength of the carcass of this travel coach tire of 10R22.5, make it is possible, to retread after the tread worn off, and increase the service long and economical efficiency.

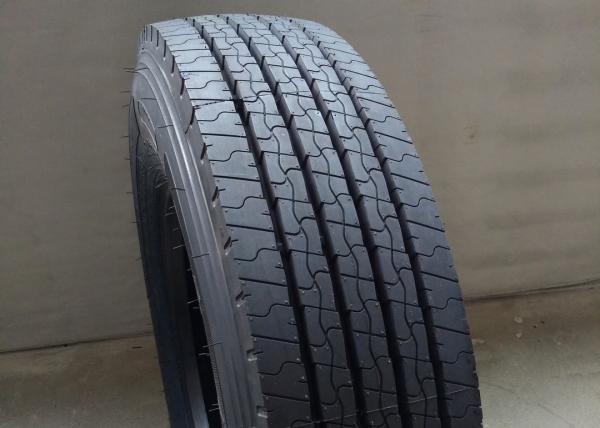

The closed outboard shoulder and the design with s-sharp sipes on the tread rib of this travel coach tire, optimizes the footprint distribution to increase the abrasion resistance and the performance of against to irregular wear.

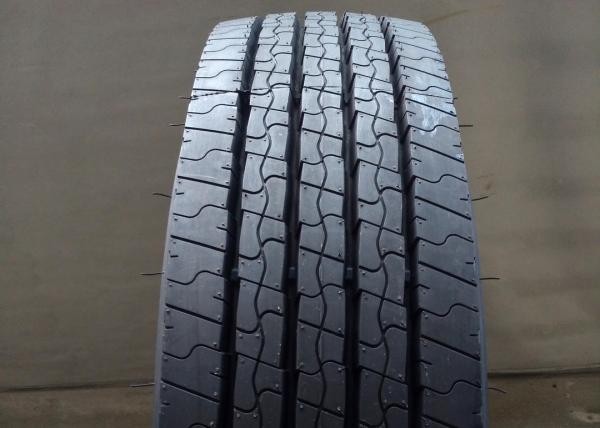

This urban bus tire of 10R22.5 with 4 straight grooves, with providing the low rolling resistance, comfort ride and good water drainage, and reduces the fuel consumption and protecting the environment.
Specification
Size | Ply | Load Index | Speed index | Standard Rim | Max load(Kg) | New tire inflated Dimensions(mm) | Tube | Operation Norm | ||
Single | Dual | Section Width | Overall Diameter | |||||||
9.5R17.5 | 14 | 129/127 | M | 6.75 | 1850 | 1750 | 240 | 842 | TL | ETRTO |
9.5R17.5 | 18 | 143/141 | M | 6.75 | 2725 | 2575 | 240 | 842 | TL | ETRTO |
8R19.5 | 12 | 124/122 | M | 6.00 | 1600 | 1500 | 203 | 859 | TL | TRA |
8R19.5 | 12 | 127/125 | M | 6.00 | 1750 | 1650 | 203 | 859 | TL | GB |
8R22.5 | 14 | 130/128 | M | 6.00 | 1900 | 1800 | 203 | 935 | TL | ETRTO |
9R22.5 | 14 | 136/134 | M | 6.75 | 2240 | 2120 | 229 | 974 | TL | TRA |
10R22.5 | 14 | 141/139 | M | 7.5 | 2575 | 2430 | 254 | 1019 | TL | TRA |
10R22.5 | 16 | 144/142 | L | 7.5 | 2800 | 2650 | 254 | 1020 | TL | ETRTO |
11R22.5 | 14 | 144/142 | M | 8.25 | 2800 | 2650 | 279 | 1054 | TL | TRA |
11R22.5 | 16 | 146/143 | M | 8.25 | 3000 | 2725 | 279 | 1054 | TL | TRA |
11R22.5 | 16 | 148/145 | M | 8.25 | 3150 | 2900 | 279 | 1054 | TL | ETRTO |
Speed index
Speed Index | B | C | D | E | F | G | J | K | L | M | N | P | Q | R |
Km/h | 50 | 60 | 65 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 | 160 | 170 |
Application
This urban bus tire of 10R22.5 with four straight grooves is one of mature travel coach tires products that being genuine tire parts for many buses model, such as vehicle model of XMQ6901AY which the which is produced by KINGLONG, one of famous coach manufacturer of China.
During the rushing hours, when the urban buses were filled with people passing through heavy traffic, the vehicle stability and handling are critical. The closed shoulder design of this travel coach tire of 10R22.5 provides the wider footprint which is benefited to keep high traction and withstand lateral force.
The tasks of the urban buses do not be cancelled by the severe weather conditions such as rain, sleet and snow, and public transporting system provide cheap and convenient vehicles for the people who living in city. The mangers of public transport company rely on the durable and economy tire to keep the public system running during any weather, and low the operating costing.
