Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line
Specifications
Brand Name :
YBT
Model Number :
YT233121
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
2set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
product name :
PU Sandwich Panel Line
Thickness :
0.4-0.8(mm)
Color :
As you choose
Width of material(Mpa) :
1250(Max)
Total power(KW) :
about 300
Total size(mm)(L*W*H) :
130000*15000*6000
Description

Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line

General Description

PU sandwich panel line integrate mechanism, chemical, electrical controlling, hydraulic controlling, pneumatic and temperature and the procedure of production includes uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking and transferring, packing. The sandwich panel production line was produced and developed by our company and won a number of technology patents. Wuxi shenghong has successfully filled in the blank of the PU sandwich panel line in China and has awarded as a leading manufacturer in building machinery industry.

The PU sandwich panel made from the sandwich panel roll forming machine is produced with foaming at working site. There is a special device injecting the foaming material between the upper and lower metal sheet. And then the material will be sent to double crawler belt. The chemosynthesis and solidification are both finished inside the double crawler belt. Cutting is in accordance with the length set previously. The sandwich panel roll forming machine has non-stop cutting device and the cutter will be moved along with the panel. The working process of sandwich panel roll forming machine consists of uncoiling, film covering, cutting, roll forming, pre-heating, foaming, solidification, panel cutting, stacking, transferring and packing.

Working flow

Down side rigid board feed----Rolling rack----glue drop onto rigid board----glue sweep----EPS sheet load----- Rolling rack and lamination-----glue drop onto EPS Sheet----glue sweep----up rigid board feed ---Rolling lamination----finished product

Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line

Technical parameter

Item Parameter
Type of material Colcor steel sheet;galvanized sheet,aluminum sheet
Thickness of material(mm) 0.4-0.8
Width of material(Mpa) 1250(Max)
Length of panel(mm) 2000-16000
Width of panel(mm) 600-1200
Thickness of panel(mm) 30-200(Not including height of corrugation)
Production speed(m/min) 3-8(Adjustable)
Valid length of double belt conveyor(mm) 16000-36000
Work pressure on pouring foam(Bar) 150-200
Total power(KW) about 300
Total size(mm)(L*W*H) 130000*15000*6000

Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Laminating Machine 1 Set
4. PLC Control Box 1 Set
5. Hydraulic Pump 1 Set
6. Output table 1 Set
7. Saw cutting device 1 Set

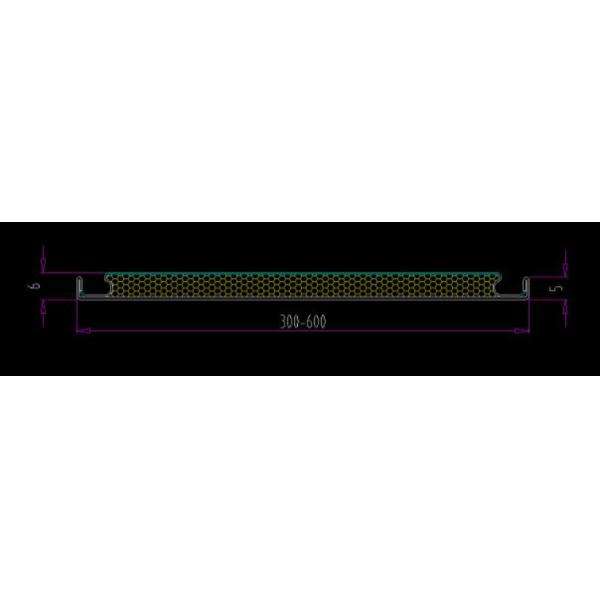

Sandwich Panel Profile Drawings For Reference

Continuous Foam PU Sandwich Panel Production Line , Sandwich Panel Machine Line

Re-sale Service :

1. Send you invitation letter, if you want to visit our factory and check the machines.
2. Good Quality + Competitive price + Quick Response + Reliable Service.


Selling Service :


1. Email the production schedule and make prompt delivery.
2. Count the cheapest shipping cost, look for the fastest forwarder and send relevant documents promptly.
3. Be here for your service at any time.
