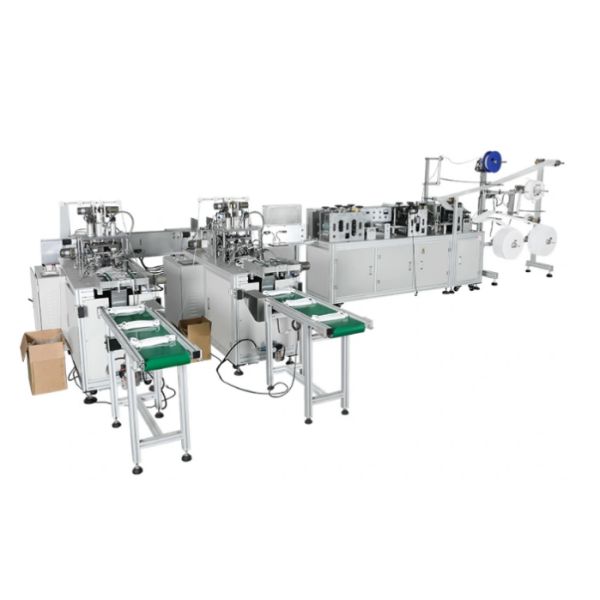

Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Automated Face Mask Making Machine / Nonwoven Face Mask Machine
Specifications
Brand Name :
YBT
Model Number :
Face Mask Making Machine
Certification :
CE FDA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
7-15 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Speed :
100-120pcs/min
Voltage :
220V 60Hz
Automatic Grade :
Automatic
Machine weight :
1200 kg
Machine dimension :
6000*3000*1800 mm
Description

Fully Automatic Face Mask Making Machine Manufacturer Nonwoven Face Mask Machine

Product Description

Blank face mask machine is the auto equipment which be used to the product of disposable face masks, be suitable for the material of non-woven fabric , activated carbon and filter material from 1~5layers. The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing, cutting the finished products automatically. According to different material you use, the finished products can reach the standards as N95,FFP2 etc. This face mask machine has features as stable performance, high productivity, low error rate and easy operation etc.

Machine Introduction

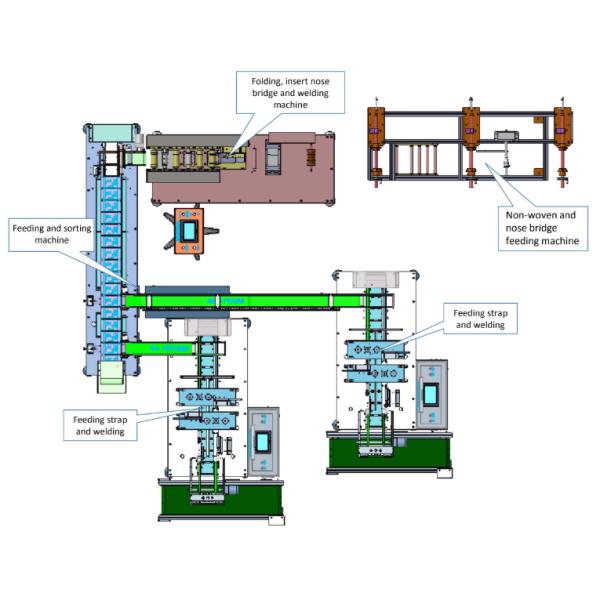

This machine is three machine combine together: Mask blank machine, Connection machine and Ear-loop welding machine. Using the advantage PLC control all the machines. This machine from the raw materials, mask body making,auto sent to ear-loop machine, ear-loop welding, mask finished all production line automatic complete finished.

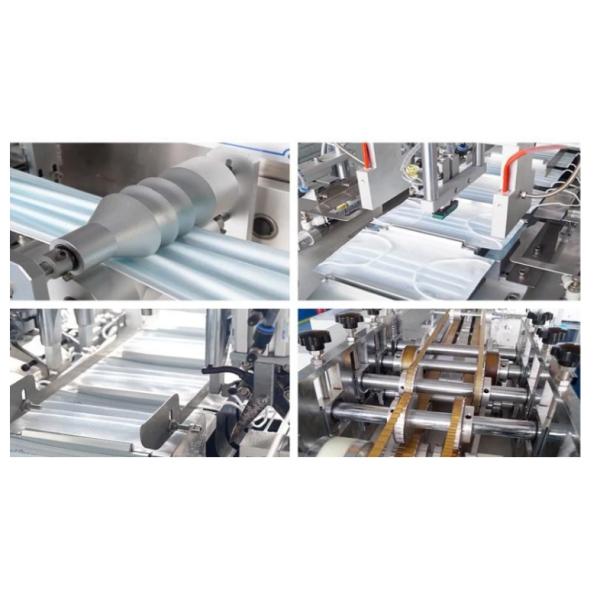

[1]. Mask blank machine: Feeder, Rack (Working table and mask), Nose wire insert,Edge sealing, Plaiting, Cutting andFinishing products, Power transmission system, Ultrasonic generator, Ultrasonic transducer, Electrical control.

[2]. Connection machine: Mounting plate, Transmission system.

[3]. Ear-loop welding machine: Rack(Working table), Power transmission system,

Transmission system, Conveyor belt , Ear-loop welding, Ultrasonic generator,

Ultrasonic transducer.

Automated Face Mask Making Machine / Nonwoven Face Mask Machine

Technical parameters:

Speed 100-120 pcs/min
Voltage 220V 60Hz
Machine dimension 6000*3000*1800 mm
Mask Size 17.5*9.5 cm ( that is standard size , we can also specially customize for your different mask size)
Machine weight 1200 kg
Machine total power 10 kw

Main Features

1. Simple structure in linear type ,easy in installation and maintation.

2. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3. High pressure double crank to control the die opening and closing.

4. Running in a high automatization and intellectualization,no pollution

5. Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Automated Face Mask Making Machine / Nonwoven Face Mask Machine

Automated Face Mask Making Machine / Nonwoven Face Mask Machine

Automated Face Mask Making Machine / Nonwoven Face Mask Machine
