Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
Specifications
Brand Name :
YBT
Model Number :
mask production line
Certification :
CE FDA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
7-15 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Speed :
100-120pcs / minute
Voltage :
220V 60 HZ
Power :
9KW
Ear knife blade :
High-speed Steel Material
Welding wheel :
DC53 Steel
Description

Disposable nonwoven medical face mask making machine, mask production line

Product Description

This production line is a fully automatic one-to-two face mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product.

Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine

Technical Parameters
Technology
1 Set body + 2 Welding line
Voltage
220V, 50/60 HZ, IP
Power
9KW
Weight
3000-5000KG
Dimension (L*W*H)
6500*5000*2000MM
Mask Size
175*95mm
For kids mask, size is150*90mm, if you need the machines to produce different sizes, you will need to buy the mould
Production speed
100-120pcs / minute
Drive Engine
TECO Servo Motor 4 Sets
Welding wheel
DC53 Steel
Cutter wheel
DC53 Steel
Ear knife blade
High-speed Steel Material
Electrical control
Mitsubishi
Warranty Time
1 Year
After sales Service
Lifelong

Machine function

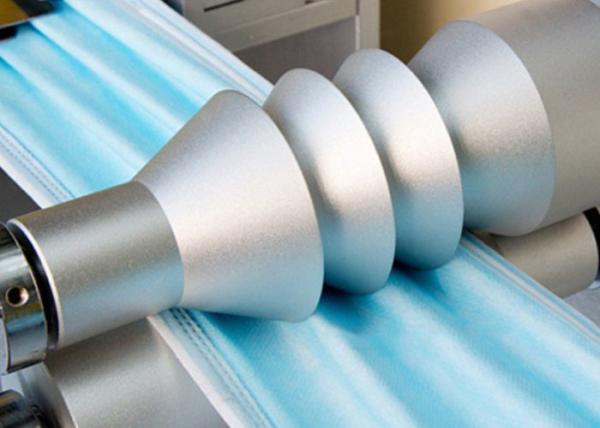

[1]. Using ultrasonic vibration&special flower wheel, after pressurizing, achieve the desired effect.

[2]. During processing, it does not emit smoke, sparks, does not harm the edges of the cloth, and can avoid burrs.

[3]. The flower wheel can be changed according to the customer's needs.

[4]. It can be manufactured continuously without preheating.

[5]. It can adjust the equipment to obtain the mask width, nose bridge line, and ear-loop length required by the customer.

Machine Introduction

This machine is three machine combine together: Mask blank machine, Connection machine and Ear-loop welding machine. Using the advantage PLC control all the machines. This machine from the raw materials, mask body making,auto sent to ear-loop machine, ear-loop welding, mask finished all production line automatic complete finished.

[1]. Mask blank machine: Feeder, Rack (Working table and mask), Nose wire insert,Edge sealing, Plaiting, Cutting andFinishing products, Power transmission system, Ultrasonic generator, Ultrasonic transducer, Electrical control.

[2]. Connection machine: Mounting plate, Transmission system.

[3]. Ear-loop welding machine: Rack(Working table), Power transmission system,

Transmission system, Conveyor belt , Ear-loop welding, Ultrasonic generator,

Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine

Disposable Mask Production Line , Nonwoven Medical Face Mask Making Machine
