Automatic disposable dust medical surgical face mask production making machine 3 layer fully automatic

Surgical Face Mask Machine Introduction

This machine adopts aluminum alloy frame, lighter and stronger, adopts touch screen panel and PLC control system, the material
runs, the sensor and the ultrasonic welding, the output is high, the product pass rate is high.
1. Machine PLC control
2. The production capacity reaches 200 tablets per minute
3. The folding position can be adjusted, and the fold shape can be changed with the guide device
4. The machine structure is all aluminum alloy

Parameters

• To meet the requirements of product specifications: This equipment suits for producing adult ear belt mask under 4 layers (without edge sealing). The size of the mask is 175mm * 95mm;
• The following raw material specifications are recommended:

PP spunbond PPSB: 200mm * 36g, melt-blown: 195mm * 28g, PP spunbond PPSB: 195mm * 18g, nose wire: single-core universal type

• Technical specifications:

• Model No.: SX-921S (High-Speed Servo Welding Flat Ear-Loop Mask Machine)
• Machine Dimensions: 4,210mm long * 2,280mm wide * 1,985 high
• Total weight of machine: about 2300 KG
• Mask specifications: 175mm * 95mm (for adult)
• Production speed: over 85pcs/min (normal 5000/ h)
• Power Source: Single-phase AC, 220V, 50HZ, 9.8KW
• Gas source: 5-7bar (gas source up to 180L/ min)
• Control mode: PLC control + touch screen operation

Equipment Features

• Automatic tension control of raw materials to ensure the balance of tension of raw materials;
• Photoelectric detection of raw materials to reduce the waste of materials, plus voice-activated alarm and stop;
• The equipment is enabled total quantity counting and single-stack counting, which is convenient for the post-process connecting to the sterilization packing line;
• Modular/humanized design for easy maintenance;
• The whole machine is made of aluminum alloy, sheet metal and chrome-plated steel. It is good-looking, durable and anti-rust, causing no pollute to the environment.
• Full servo action is adopted in the ear-loop welding to achieve energy-saving and high-speed;
• The entire production line requires two operators, one is responsible for the operation of the machine and the replacement of the raw material rolls; another is responsible for collecting the finished product mask and arranging the boxes in an orderly manner; the person supervising the machine can take care of multiple machines at the same time.

Function introduction :

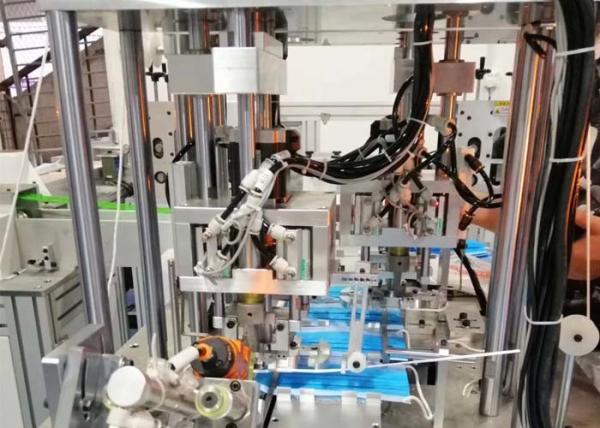

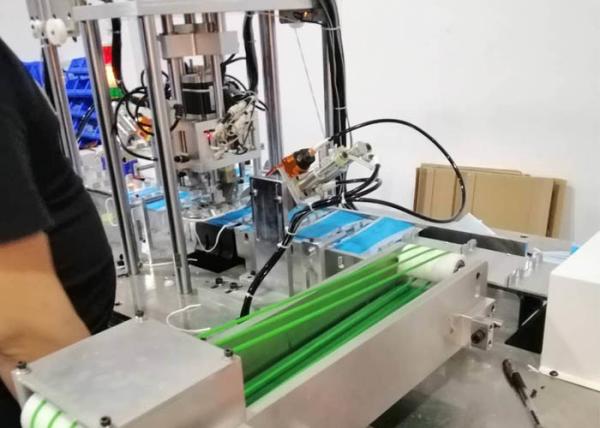

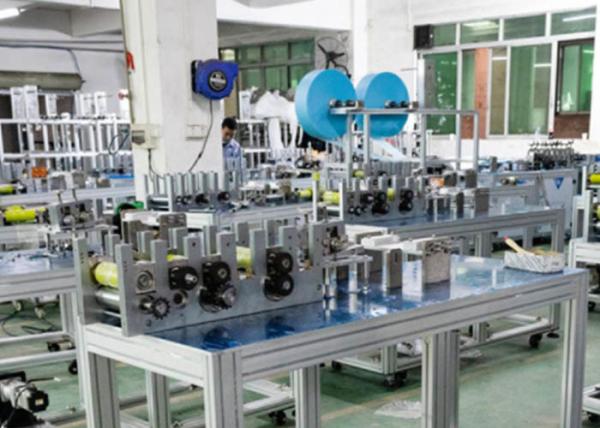

This production line is a fully automatic one-to-two mask machine, one body machine drives two ear band machines. After the main body machine

outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product. This machine adopts PLC, touch screen control, single-phase motor for main conveyor belt, stepping motor turning, precise transmission, stable control and adjustable speed.

Product Features

1. High stability, low failure rate, beautiful appearance without rust;

2. Computer PLC programming control, servo drive, high degree of automation;

3. Photoelectric detection of raw materials to avoid mistakes and reduce waste.

The technical parameters

1. Machine size length, width, and height: the whole machine has a size of 4500mm × 5500mm × 1830mmmm;

2. Voltage: AC220V 50-60HZ

3. One-to-two production line efficiency: 100-120 tablets / min

4. Power: 8.5KW

The Main Electrical Parts Main Machine Configuration:

1.Variable frequency motor

2. Ultrasound 2 sets

3. plc control 1 set

4. 2 sets of electronic eyes Ear strap machine configuration: 1. 2 sets of variable frequency motors
