Specifications
Brand Name :
YBT
Model Number :
N95 mask making machine
Certification :
CE FDA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 Sets Per Month
Delivery Time :
7-15 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Final products :
mask
Warranty :
12 month
Ear loop length :
130mm+20mm
Media width :
300mm
Description

N95, KN95, 3ply medical face mask machine automatic nonwoven mask making machine

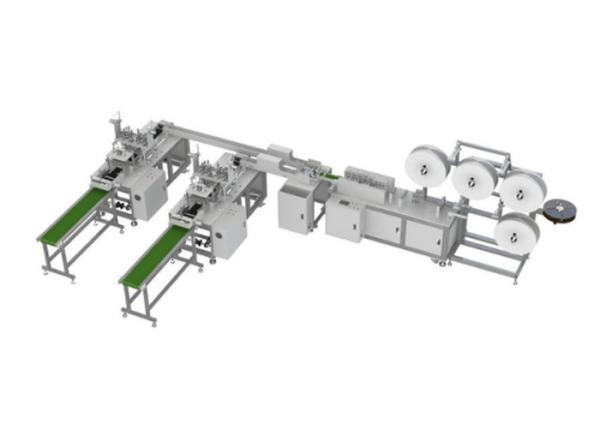

This production line is a fully automatic one-to-two face mask machine, one body machine drives two ear band machines. After the main body machine outputs the mask body, the mask body sheet is conveyed to the turning mechanism by a conveyor belt structure. The reversing mechanism is used to flip the mask plate onto the belt connected to the ear band machine, and then the mask sheet is conveyed to the first mask plate on the front of the ear band machine through the conveyor belt, and finally the mask sheet is placed on the ear band by the cylinder pressing In the mask plate of the machine, the ear band machine is used to complete the welding of the ear bands of the mask and the edging, thereby completing the production of an ear band mask product.

Features 1. There is automatic tension control for the raw material, and the tension balance can be ensured. 2. Full Automatic Disposable Surgical Medical Face Mask Making Machine is made of aluminum alloy, it is stable, low failure, beautiful and strong, and there is no rust. 3.Full Automatic Disposable Surgical Medical Face Mask Making Machine is PLC controlled, and with the servo driving, the automation is high. 4. There is the optoelectronic (fiber) detecting for raw material, and the waste is reduced. 5. Full Automatic Disposable Surgical Medical Face Mask Making Machine can be used to produce facial masks (1~4layers). 6. There is the counting function (for the total amount & the batch quantity), and the batch quantity can be set freely. 7. By exchanging dies, facial masks with different sizes or types can be produced. 8. After the updating, processes of raw material feeding, nose bridge bar’s cutting, mask edge’s welding, the mask folding, the ultrasonic melting, the forming and the cutting, etc. can be automatic. 9. Some mechanical parts can be adjusted. 10. The pattern in the mask can be customized. 11. Activated carbon can be filled in the mask
Items
Specification
Frame
Aluminum profile
Machine dimension
6500(L)×4000(W)×2000(H), mm
Size of face mask
175×95, mm (Adults)
Design speed
130pcs/min
Production speed
100pcs/min
Layers of the mask
3 ~ 4
Working efficiency
95%
Power
9Kw
Air pressure
Not less than 0.6Mpa
Compressed air consumption
300L/min
Machine weight
About 1800Kg
Weight capacity on the floor
Not more than 500Kg/m2
Protecting
There are protective hoods for transmitting parts.

Product Features of cup mask forming making machine:

1. Adopt the original German machine technique, per the feature of folded mask, make the nose clip and mask body finish once via automatic control by ultrasonic technique. Steady quality and high efficiency.
2. Can make the mask of 2-5 layer raw per required.
3. This is different from other folding mask machine, this install the nose clip insertion unit: the nose clip can be inserted when produce the mask which we need, then fold welding and forming, this improve the automation and save the labor cost for the manufacturer.
4. PLC control, automatic counting , Easy operate, beautiful finish product.
5. Servo moto control, dimension control exact.
6. Machine frame made from aluminum , the parts with plating, outlook rugged beauty and practical.

N95, KN95, 3ply Medical Face Mask Machine , Automatic Nonwoven Mask Making Machine

Function of cup mask forming making machine:

This machine has aluminum alloy rack. The appearance is light and beautiful. It can finish making the figuration at one time with the precision moulds. With imported high power ultrasonic it can weld firmly and waste materials will be outputted automatically. The computer program control and photoelectric detection make it have a high reliability and low failure rate. The product can be widely used in high industrial pollution, factories and mines.

N95, KN95, 3ply Medical Face Mask Machine , Automatic Nonwoven Mask Making Machine

Machine advantages

1. Cutting roller
We use the chrome steel to cover the rubber roller both sides .So that the rubber is not crack from side after extended periods use.
2. Traction roller
We use the silicone rubber materials instead of the butyronitrile materials .The silicone rubber materials is good abrasion
resistance and will not crack
3. PLC touch screen
We use DELTA group brand PLC touch screen .
4. Mask nose strip tension controller
We use Mask nose strip tension controller .This device can avoid the nose strip differ in length .
5. Nose strip straight- feeding device
We use Nose strip straight- feeding device , It can ensure the nose strip be feeded straightly in the processing, so the finished
mask will be flat and artistic.
7. Non woven raw materials sensors
We use Non woven raw materials sensors,once the raw materials use up,machine will stop automatically
8. Raw materials tension controller 1
We use the Raw materials tension controller to avoid the materials plugging .
9. Raw materials tension controller 2
Our machine is equipped with two braking ways . One is belts pressing and another is screw fixing . You could choose either one or use both according to your need.
10. Raw materials EPC device
We use raw materials EPC device ,to do materials adjustment.
11. Machine door lock
We just door lock ,with out the key,worker can not start the machine.
12. Frequency converter
We use DELTA group brand frequency converter .
13. Machine body and materials feeding connect board,We connect Machine body and material feeding frame with connecting boards,so that the running of whole machine will be very
stable.
14. Electrostatic eliminator
In our machine we have one electrostatic eliminator . to eliminate non woven mask surface static.
15. Machine motor
Our geared motor is new type and no need refuel.
16.Fan
We install the fan near the ultrasonic horn ,to Lower the horn temperatures,to to extend ultrasonic life.
