N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
Specifications
Brand Name :
YBT
Model Number :
N95 cup-shaped masks
Certification :
CE FDA
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
7-15 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Power supply :
220v 50hz(customized)
Speed :
50-70 pcs/min(customized)
Power :
15KW
Weight :
4000KG
Yield :
≥98%
Description

N95 foldable 3D mask with Breathing valve /Ventilation valve making machine

Product Description
The equipment can produce N95 cup-shaped masks, and the production efficiency can reach 50 ~ 70 pieces / minute; the equipment process flow is automatically loaded, the material is automatically folded, the nose bridge ribs are automatically loaded, the ear straps are automatically loaded, and the welding mask is formed, and the finished product is cut off . The theme of equipment control is divided into four separate controls to meet the production needs of multiple methods.
Production process:

Import raw materials→automatic feeding→nose wire cutting/feeding→shape fusion→LOGO transfer printing→ear band welding→flush breathing valve hole→automatic conveying breathing valve and alignment/welding→nose pad sponge paste→folding→sealing→automatic cutting→finished product output→the whole process of automation.

N95 foldable 3D mask with Breathing valve /Ventilation valve making machine

Product Name
Foldable face mask making machine
Type
BL-N95
Brand
BOLANG
Yield
≥98%
Speed
50-70 pcs/min(customized)
Lock method
Ultrasound
Applicable bottle
3D face mask
Modes of packing
Carton or film
Power
15KW
Control method
PLC
Power supply
220v 50hz(customized)
Automation level
Fully automatic
Dimension
9650mm*1900mm*2150mm
After sale service
1 Year
Weight
4000KG
Place of origin
Jiangsu Province,China

Product features:

1. The use of square frame + aluminum alloy material frame structure, beautiful solid without rust.

2. Computer PLC programming control, high stability, low failure rate, less noise.

3. The use of servo motor, stepping motor drive, high precision.

4. Photoelectric testing raw materials to avoid mistakes and reduce waste.

5. This equipment adopts segmented frame installation to facilitate loading and unloading in the factory.

6. The machine adopts pulley and fixed feet, easy and fast to move, strong fixation, do not shake.

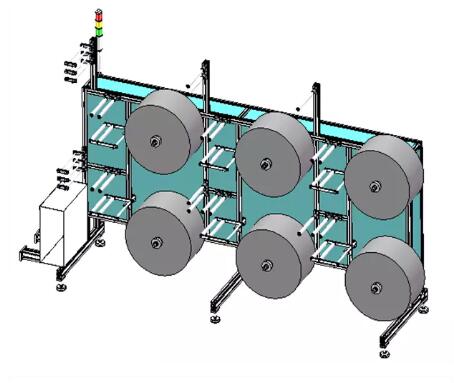

Loading rack
1. Manually feed the coil 2. The belt line drives the entire tray to the tray lifting mechanism 3. Gantry picking mechanism grabs the product and places it on the fixture 4. The platform drives the fixture to the detection position and starts the detection. 5. Judgment results start to be divided into product blanks: OK material is grabbed and placed on the packaging line to start packaging, and NG material is placed on the NG runner to collect.
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
Nose bridge on-line machine
1.Nose bridge lead 2.The nose bridge strip is cut off automatically 3. Nose bridge strip is back on line 4. Nose bridge is pressed in, ultrasonic roller is pressed and welded 5. Traction passed

N95 foldable 3D mask with Breathing valve /Ventilation valve making machine

Earband online machine
1.Earband lead 2.Earband welding 3. Marking 4.Fold the mask 5. Traction passed
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
Welding slitting machine
1.Roll compaction 2.Ultrasonic welding after ear folding 3.Slitting after forming the mask 4.Filling the finished mask
N95 foldable 3D mask with Breathing valve /Ventilation valve making machine
