Specifications
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YT376509
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
10set
product name :
CZ Quick Change Purlin
Color :
Customers' Requires
Speed :
8~12m/min
Coil Thickness :
1.5-3.0mm
Condition :
New
Control system :
PLC control
Description

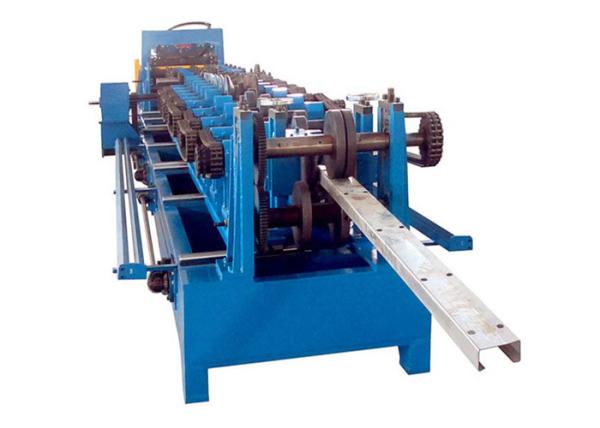

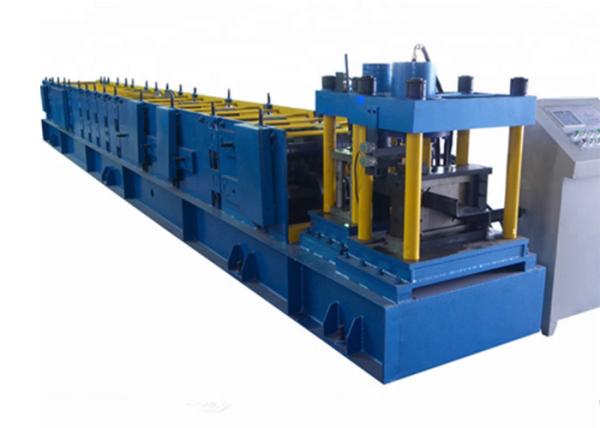

Automatic Roll Forming Machine C Z Quick Change Purlin With PLC control

Product description

Our high efficiency purlin roll forming machine produces C, U, and Z purlins. Equipped with fast and easy automatic changing system and this system eliminates the need for multiple lines or manual adjustments.
We have the Purlin Roll Forming Machine experts in all aspects including fields like tooling design, hydraulic & electrical design, software programming since years. Being one of the leading pioneers of roll forming industry, we specify all designing and manufacturing process to our clients. Our manufacturing process is held in-house to keep up with the efficient technical forces.

YT376509 Automatic Roll Forming Machine 250 - 350Mpa Yield Strength Coil Material

Working Flow

Decoiler ----> feeding guide & leveling and straighten ----> punching ----> hydraulic pre-cutting---> roll forming ---- ----> run out tables

Specifications

Coil Material Thickness 1.5-3.5mm
Coil width Depend on customer’s requires
Yield Strength 250-350Mpa
Material GI. Carbon Steel
Purlin Sizes Web width 80-350mm
Height 40-80mm
Lip 12-25mm
Conversion process C-C different sizes Approx. 2-3 minutes
Z-Z different sizes Approx. 2-3 minutes
C-Z or Z-C Approx. 5-15 minutes
Decoiler / Uncoiler Coil Width Max. 600mm
I.D 510-610mm
O.D Max. 1300mm
Capability Max. 5 Tons
Decoiler type Manual / Hydraulic/Automatic
Feeding & Leveling Pinch feeding 3 Units ( 6 Rollers )
Leveling 7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers )
Punching device Punching motion Hydraulic Punching, Pre-punching
Punching dies Cr12 Mov Steel, HRC58-62
Punching station 1-6 Unites ( depend on hole patterns )
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel.
Cutting device Cutting motion Hydraulic Cutting, Pre-Cutting ( cutting sheet before forming )
Cutting blades Cr12Mov with heat treatment HRC58-62
Length Measuring Automatic length measuring by encoder & PLC.
Cutting Tolerance +/-1.5mm(per 3m)
Roll Forming Machine Forming Stations 17 Stations
Rectifying 1 unit
Roller material GCr15 steel, heat treatment
Diameter of shaft 80mm
Shaft material High grade 45# steel
Drive type Gimbal gearbox drive
Forming speed 0-15m/min
Main power 18.5KW
Servo motor 1 Units
Electrical control PLC

Touch Screen
Operation type Touch screen & Button
Hydraulic Station Hydraulic station Famous Chinese brand
Hydraulic power 7.5KW
Runout Table Table type Simple non-power type
Function To support the finished panels
Total W APRRO 12.5 TONS

Machine Component

De-coiler 1 set
Leveling device 1 set
Forming machine 1 set
punching device 1 set
Cutting device 1 set
PLC control box 1 set
Hydraulic pump station 1 set
Production support table 1 se

We manufacture the machines as per clients’ specific needs and provide insights about the machine and its working process. We also apply hydraulic transmission system in order to achieve stable running or production state. We supply purlin roll forming machine at competitive prices comparing to our counterparts throughout the world. We are honored to receive such great feedbacks from our previous customer and we further want to retain the quality for years to come.
