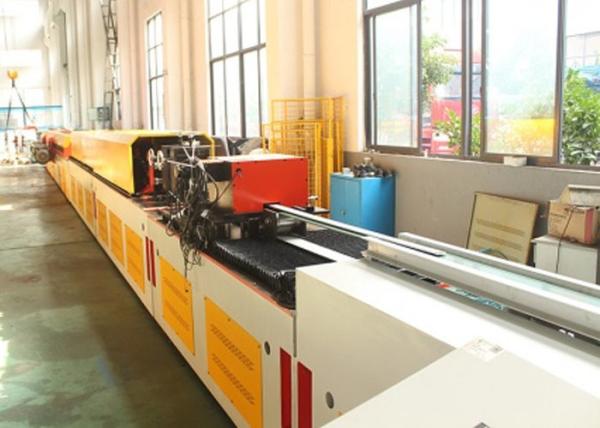

42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations
Specifications
Brand Name :
YBT
Model Number :
YT233121
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Shutter Door Roll Forming Machine
Forming Speed :
10-12m/ min
Use :
door
Cutting :
Hydraulic Cutting
thickness :
0.3-0.6mm
Warranty :
1 year
Description

42mm 45mm 55mm 77mm Aluminium Roller Shutter Door Roll Forming Machine

Description

Aluminium Roller shutter door forming machine is to produce rolling doors of major equipment, the use of galvanized steel or different colors of color steel or aluminum as a raw material, production of color plate rolling gates brilliant color, do not fade, do not rust, fire cut off, easy deformation, strength 3 times higher than the aluminum door.

Work Process:

uncoling--feeding and guiding--roll forming--preheating--PU foam injection--heat preservation--saw cutting--run out

42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations

Specification

Uncoil 3 tons manual decoiler
Raw material thickness 0.3-0.6mm
Feeding width 39mm/42mm/45mm/55mm/77mm/99mm
Forming station 32-38stations
Shaft diameter 60 mm
Shaft material high grade 45# steel
Roller material Gcr25
Forming speed 10-12m/ min
Transmission type chain transmission and gearbox
Machine frame stand guide type
Main motor power 7.5 kw
Cutting type flying saw cutting
Cutting power 2.2 kw
Cutter material Cr12 with quenched treatment HRC 58-62
Cutting mold 1 set
Cutting length error ±1mm
Voltage 380V & 50HZ & 3 or according to your requirement
Control system PLC control system
Size of PLC 700mm*1000mm*300mm
PLC Xinje (www. xinje.com)
Out table 4m or 6m

Description:

NO Name Unit Qty
1 Man-made decoiler set 1
2 Main machine for roll forming set 1
3 Control system set 1
4 Hydraulic system set 1

Profile Drawing

42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations42mm - 77mm Aluminium Roller Shutter Door Machine 32 - 38 Forming Stations

Our Service

One-Stop Shopping Service
We are committed to providing a full scale and multichannel services for cold roll forming machine,like roof panel machine,shutter door machine,purlin forming machine etc.Our pre-sale,after-sale and technological support services will ensure that your shopping experience going well. You would get your requirement in our company.

Professional Sales Team
High educated, warmly and professional sales team offer multi-language service for friends who comes from all over the world. We will provide product information, shopping process, delivery time, equipment parameters, installation, payment terms and warranty these informations to customer.

Perfect After-Sale Service
After customer placed an order, our engineer team will design as your requirement and help you installation,test,modification and maintenance equipment. And engineer are available to service machinery oversea.
