PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness
Specifications
Brand Name :
YBT
Model Number :
YT233121
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Shutter Door Roll Forming Machine
Thickness :
0.3-1.2 mm
Speed :
15-20 m/min
Warranty :
1 Year
Voltage :
380V 50Hz 3phases
Total power :
4 kw
Description

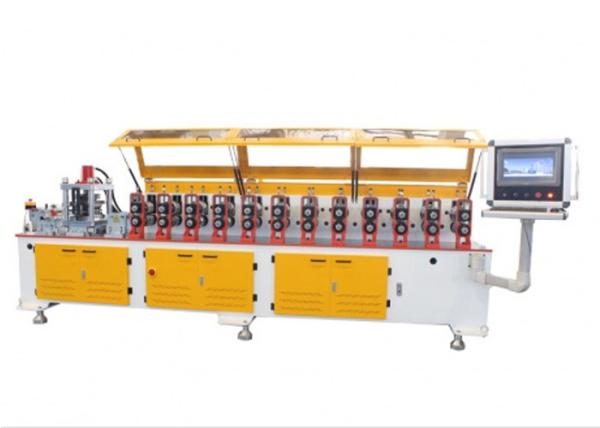

PLC Control Automatic metal steel roller shutter door frame roll forming machine

Introduction of Shutter Door Roll Forming Machine

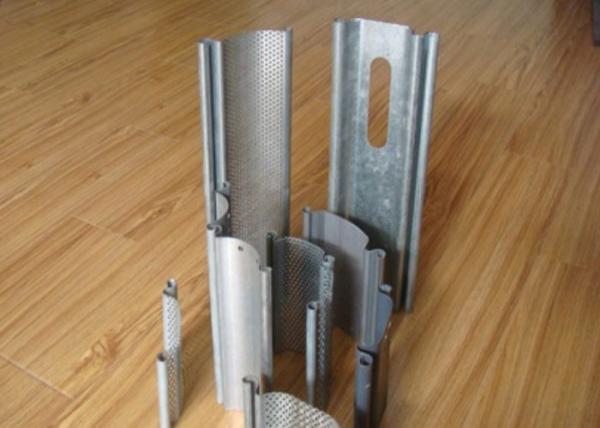

The line consists of decoiler, sheet guiding equipment, roll forming section, cutter, supporter, hydraulic system, control system. The roller shutter which made by this machine have neat external appearance, even ripples, high utilization and strong strength.

Production Process of Shutter Door Roll Forming Machine :

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

PLC Control Automatic Shutter Door Roll Forming Machine 0.3 - 1.2mm Thickness

Technical parameters of Shutter Door Roll Forming Machine :

Suitable Material Material Galvanized Sheet
Thickness 0.3-1.2 mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Rows of rollers 12 stations
Material of shafts High grade 45# forged steel
Diameter of shafts 50mm
Material of blade Cr12 Heat Treatment
Speed 15-20 m/min
Side plate thickness 16 mm
Total power 4 kw
Voltage 380V 50HZ 3Phase
Appearance size (About) 4500mm*800mm*1500mm
Electronic control system PLC +Touch Screen

Standard Configuration of Shutter Door Roll Forming Machine :

1 ton Manual decoiler

 1 set

Main roll forming machine

 1 set

Hydraulic pump system

 1 set

PLC control system

 1 set

Receiving Table

 1 set

Spare parts

1 set

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 20 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 35 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
