Specifications
Place of Origin :
China
Brand Name :
YBT
Certification :
CE ISO SGS
Model Number :
YT376506
MOQ :
1 Set
Price :
Negotiation
Packaging Details :
Standard export packing with each machine tied and protected in container
Delivery Time :
45-60 days
Payment Terms :
T/T
Supply Ability :
10set
product name :
shelving upright column making machine
Production Capacity :
8-12m/min
Type :
Steel Frame & Purlin Machine
Cutting blade material :
Cr12Mov
Feature :
Fully Automatic Operation
Voltage :
380V/50HZ 3Phase
Description

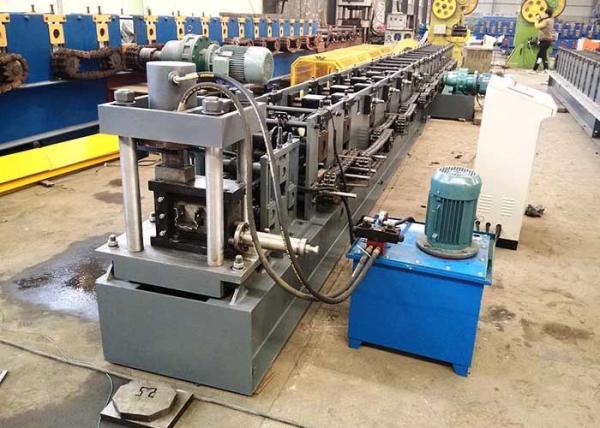

PLC Supermarket Galvanized steel Shelves shelving upright column making machine

Product Description

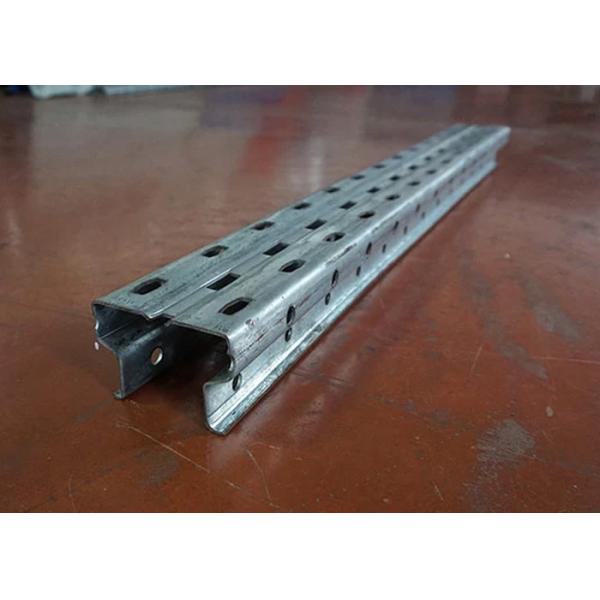

Galvanized steel shelving upright column making machine design for producing storage rack, warehouse shelves stud, upright post & Supermarket storage rack upright shelf frame profile machinery.

Working Flow

Decoiling --- leveling --- Servo feeding --- Punching Holes ---- Rollforming ----Cuting--- Finished Racks on Tables

Devices steel rack beam production line

No. Machine name QTY REMARK
1 Uncoiler straightener 1
2 Servo Feeder 1
3 Hydraulic machine 1 With mould
4 Guide device 1
5 Forming machine 1
6 Hydraulic machine 1 With mould (2 sets)
7 Follow Shear 1 Including knife
8 Collect rack 1
9 Control system 1

Galvanized Steel Shelves Metal Roll Forming Equipment Cr12Mov Cutting Blade Material

Galvanized Steel Shelves Metal Roll Forming Equipment Cr12Mov Cutting Blade Material

Machines List


2 in 1 Uncoiler straightener
Type:Manual Expansion

Parameter
1. Passive discharge
2. Coil weight:< 2T
3. Coil inner D.:φ450mm-φ530mm
4. Max. Width.200mm
5. Thickness .0.4-1.6mm
6. Straightener roller :7 pcs
7. Power.1.5kw

Servo Feeder
1. Max. feeding width:200mm
2. Feeding thickess: 0.4-1.6mm
3. Motor , 0.85ＫＷ(Yaskawa)

Hydraulic hole punching system
1. Function:Hydraulic punch breach
2. Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3. Hydraulic system working pressure:16MPa
4. Hydraulic station:15KW( Hydraulic punch hole/shear use same station)

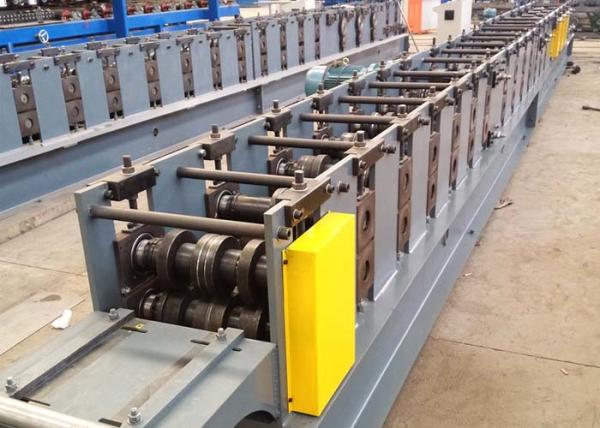

Guide device
1. Forming Roller:14 stations,and add Rub-roll, To make sure the surface profile no scratches.
2. Side Panel:T.18mm ,A3 steel Heavy duty .
3. Rolling speeding: 2-8 m/min.
4. Roller material:#45,overall quenching, hardness HRC56-62 ℃.
5. Motor power:4KW.
6. Main Roller :￠65mm,45 #.
7. Equipment base: 45 # H type using welded steel plate.
8. Transmission: chain drive.
9. Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
