High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm
Specifications
Brand Name :
YBT
Model Number :
YB983459
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Steel Silo Roll Forming Machine
Thickness :
1.5 - 6 mm
Speed :
8 - 15 m/min
Cutting Type :
Hydraulic
Hydraulic Power :
4KW
Warranty :
1 Year
Description

PLC Control Silo Sidewall Roll Forming Machine with 1250 mm - 1500 mm

Silo Features
1. The silo constructed with the steel silo making machine has optimal overall performance and long lifespan. The seaming thickness is 5 times the thickness of the base material. Apart from the strengthened load carrying capacity, the silo has the advantage of good stability and long lifespan over other product.

2. Optimal sealing performance and wide applications. Our cold roll forming line provides seaming with good airtightness. It helps prevent the granular and powdery grain stored being influenced by the humidity outside the silo. In addition, the silo constructed can satisfy the technological requirement for disinsection or fumigation. Application for storing liquid is also available.

3. Short construction period and low construction cost. It only takes about 5 days to construct the 1000 ton silo with our cold roll forming line. The silo weight is just one-sixth that of the cement silo. Therefore, the silo construction cost is reduced, accordingly.

4. Small land occupation, good adaptability and easy maintenance. The height and diameter of the spiral steel silo is selectable within a large range. The space between the silos can be less than 50m.

Technical Parameters

Applicable Material Galvanized sheet
Material Width ≤500mm
Processing Thickness 4.0mm
Roller Material Cr12Mov alloy steel processed with heat treatment, HRC55
Main Motor Power/Hydraulic Station Power 15kW/15kW
Forming Step 5 times forming and 6 times seaming
Machine Size 8m×2m×2m
Machine Weight 20 tons

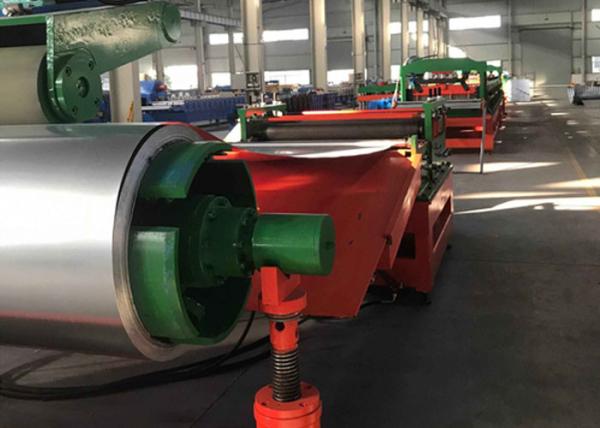

10T hydraulic decoiler:

Steel coil width: from 1250 mm to 1500 mm;

Internal diameter of coil: variable, from 470 mm to 620 mm

Maximal out diameter:1600mm
Maximum coil weight: 10000 Kg;

Oil cylinder dia:120mm
Working speed: 0-15m/min adjustable
Main motor power: 7.5KW AC motor
Hydraulic power: 5.5kw
Speed controlled by frequency converter brand: Yaskawa
De-coiler should be with Loop control and hold down, and with baffle for forbid coil fall down
The decoiler has 4 segments

Detailed Images

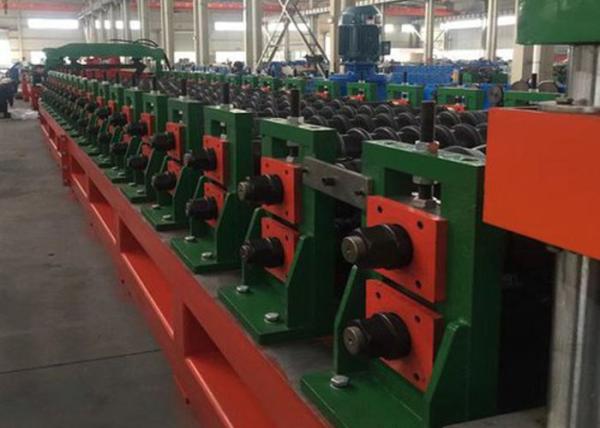

Forming section

Material of the profile: 195-235Mpa GI or carbon steel
Thickness range: 3.0-4.0mm
Maximum production speed: not less than 18 meters per minute (for non-perforated profiles, excluding cutting)
Main motor power:60kw, AC motor, motor inside of main machine (Brand: Guomao of China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:20 stations
Roller material:Gcr15 bearing material chrome plated surface with hardness 58-62 degree ,CNC,
Shaft diameter: ￠150mm material: SAE1045 with quenching and tempering
Transmission: by gear box 200*500(outside is cast iron, surface needed polish and paint. Inside is 60# forge and press metal)

High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm

Punching:

The punches and dollies will be CR-12, hardness HRC 58-62 and chrome coating both punches and dolies should be easily replaceable without requiring disassembly of complete units.
The whole punching operation should be automated and controlled by a program installed in the PC which is located in the operator's console.
Hydraulic power: 5.5kw
Working pressure: 12-16Mpa

High Power Silo Sidewall Roll Forming Machine With 1250 Mm - 1500 Mm

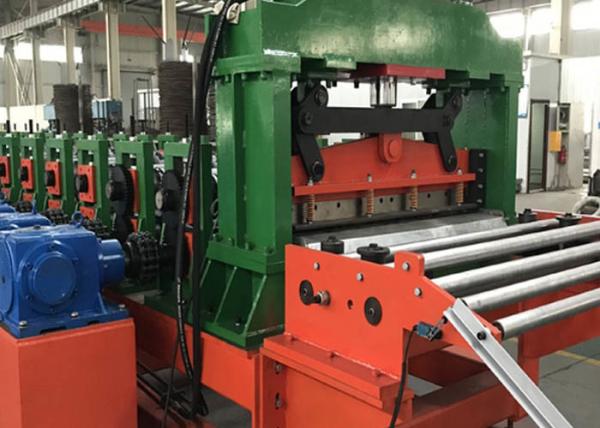

Cutting :

Machine adopt hydraulic cutting

Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
Material of blade: CR12with heat treatment
Length measuring: Automatic length measuring
Tolerance of length: 4700mm+/- 2mm

Auto stacker and transmission table:

Take the sheet by air compressor, 5.5KW( provide by customer)
Air cylinder swing arm size: 40mmx80mm
Transmission power:4kw AC motor
Stacker length in 12m, transmission table length in 25m
Drive of transmission by 1.0inch double line chain
Transmission roller: ASTM1045 with chrome, diameter of roller is in 80mm
Carrying capacity: maximal 5000Kgs
Length of capacity: 500-12000mm
The maximal stacker height: 300mm

Hydraulic station:

Hydraulic power: 11kW
Working pressure: 20-25Mpa adjustable
Solenoid valve: 3 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
