Specifications
Brand Name :
YBT
Model Number :
YB952609
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
NAME :
silo forming machine
Control system :
PLC control
Voltage :
380V 50Hz 3phases
Thickness :
0.5-4mm
Hydraulic power :
5.5kw
Total mass of units :
about 50t
Description

0.5-4mm Tank Sheet Custom Roll Forming Machine Steel Silo Curving Corrugated

Grain Bin Silo Machine
The steel silo corrugagted sheet roll forming machine is widely used to produce Steel silo corrugated sheet, steel silo corrugated panel, silo wall sheet, silo corrugated wall sheet, silo wall panel, silo corrugated wall panel, silo side panel, steel corrugated sheet, steel corrugated wall panel, steel corrugated panel, etc.

Machine Features

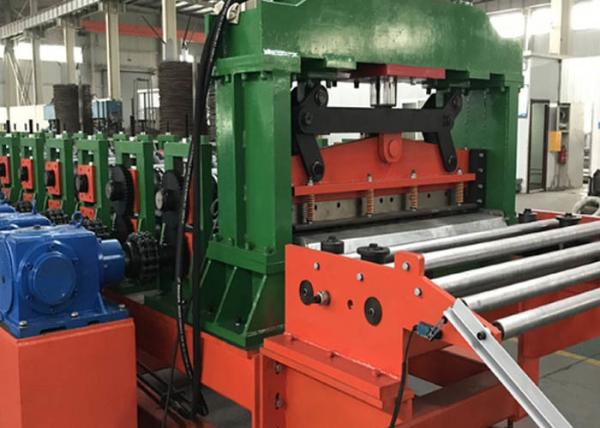

  • This grain silo corrugated sheet roll forming machine is designed to process steel coil into corrugated sheet with designed specification in one step, and this is available for the thicker steel.
  • Our product makes use of roll forming technology to fabricate the corrugations one after another, resulting in released internal stress, reduced spring back effect as well as improved product quality.
  • This grain silo corrugated sheet roll forming machine is most popular one among similar products on the market.
  • Shape forming, punching, curving and shearing operations are finished on the same production line automatically. There would be no straight edges on the sheet, thus the assembly is easy and the productivity is enhanced

Technical specification of production line

Name Description
Raw Material And Applicable Scope Material Cold rolling normal carbon steel, stainless steel, galvanizing coil
Property δs≤350MPa δb≤600MPa
Plate thickness 0.5-4mm
Plate width 2050mm (Max.)
Inner diameter Ф508mm
External diameter 1800mm (Max.)
Coil weight 25000kg (Max.)
Main technical parameters of production line Machine linear speed 0-60m/min
Specified length 500～4000mm
Cutting quantity 15 pcs/ min (take L=2000mm)
Length precision ±0.5 (L=1000mm)
Diagonal precision ±0.5 (L=1000mm)
Level precision ±1mm/m2
Total motor power about 80KW
Total mass of units about 50t
Floor area of unit about 20m×8m×3m (L×W×H)

Configuration of production line

NO. Name Unit Qty
1 V storage platform Set 1
2 Feeding trolley Set 1

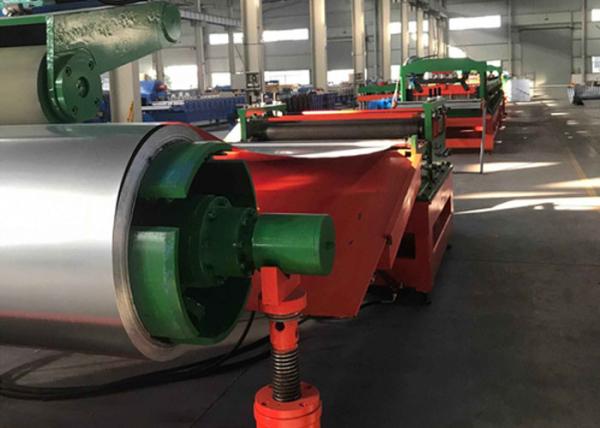

3 Hydraulic pressure double-cone decoiler Set 1
4 Head leading, shovel head, head straightening Set 1
5 17-roller coarse leveling machine with double-roller drive Set 1
6 Loop accessory Set 1
7 Alignment machine Set 1
8 9-roller measuring machine for precise leveling Set 1
9 Hydraulic transverse cut machine Set 1
10 Conveyor Set 1
11 Compressed air support discharger Set 1
12 Hydraulic piling platform Set 1
13 Unloading trolley Set 2
14 Hydraulic system Set 1
15 Pneumatic system Set 1
16 Electric control system Set

1
