Specifications
Brand Name :
YBT
Model Number :
YB952609
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
NAME :
Automatic Silo Forming Machine
Control system :
PLC control
Voltage :
380V 50Hz 3phases
Productivity :
12-15m/min
Thickness of the plate :
2mm-4mm
Warranty :
12 months
Description

12-15m/min Automatic Silo Forming Machine and Silo Panel Roll Forming Machine

Introduction

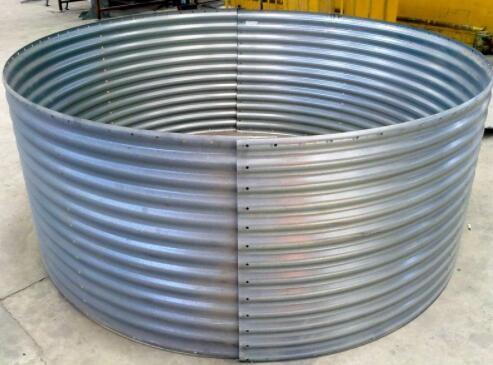

Grain silo, sometimes known as grain bin, grain tanks, grain elevator or grain storage bin, is a part of grain elevator structure used for storing grain. The assembled silo sheet is widely used for the purpose of commercial grain storage around the world, and our grain silo corrugated sheet roll forming machine, also called grain bin sidewall rollformer, is especially designed to manufacture such steel sheets.

Working Flow of Roll Forming Machine

Manual de-coiler --- Electric Feeding --- Servo motor feeding ----oll Forming Machine------Computer Control Cabinet---Automatic cutting Mechanism ---Run-out Tables

12-15m/Min Automatic Silo Forming Machine , Silo Panel Roll Forming Machine

Specifications of Silo Panel Roll Forming Machine

No. Item Description
1. Coil width Depend on your profiles
2. Working speed 12-15m/min
3. Roll station about 16 - 24 stations
4. Material of roller Grade 45 steel, polished and coated with chrome
5. Material of main shaft 45﹟ steel
6 Diameter roller 70mm
7. Main power 7.5KW
8. Forming thickness 1.0mm zinc and color steel, 250Mpa-G550MPA
9. Transmission by single Chains 1.5inch
10. Feeding and guide Surface polished and coated with chrome
11. Machine drive parts Adopt protect cover
12. Machine station Adopt new station with chrome
13. Size of main machine 7500x1500x1300(mm) L x W x H need 1x40GP container
14. Weight about 8000Kgs
15. Color of machine Blue ( or depend on customer’s request)
16. Machine legs Four legs (made from metal) in 350mm

Machine Components

10 Ton hydraulic decoiler 1 set
Straightening machine 1 set

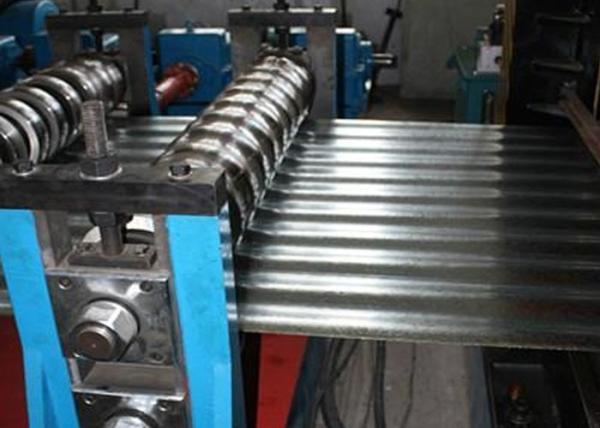

Main roll forming 1 set
Punching machine 1 set

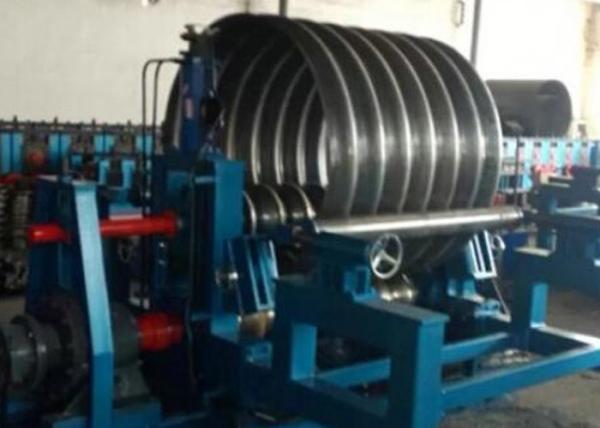

Curving Machine 1 set
Hydraulic shear 1 set
Hydraulic station 1 set
PLC Control cabinet 1 set
Stacker 1 set

Description

1: We have professional engineering team and can use the Copra Software skifllfully to design the forming diagram according to the profile drawing.

2: We adopt the heavy stands to make the machine robust and strong.

3: We adopt hydrauli flying shear all profiles.

4: The step beams is popular used in the project of supermarket construction in North America and

South America e.g Mexico, Argentina,Chile and so on.

5: We exported the step beam machine to Mexico and all of the profiles produced can meet the customer’s requirements.

6: We also can supply accessories parts machine together with rack machine,crossbar machine,base machine etc.
