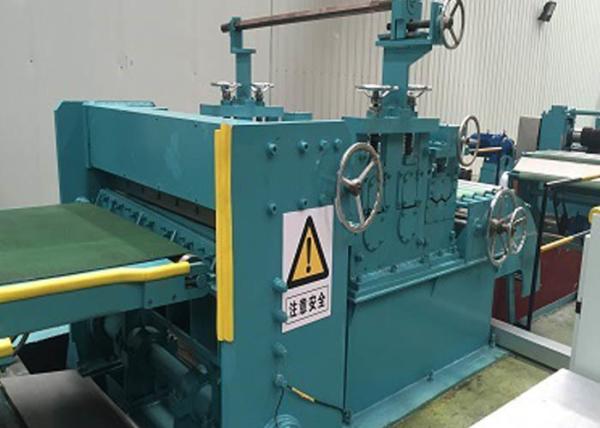

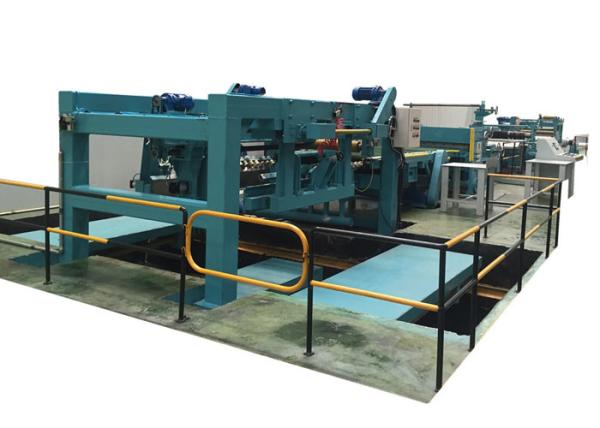

Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine
Specifications
Brand Name :
YBT
Model Number :
BT456790
Certification :
ISO,CE,SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 Sets/ one month
Delivery Time :
90 -120 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Cut to length line
Color :
Customized, at your request
Advantage :
Use Widely
Warranty :
1 Year
Coil Thickness :
0.28-4.0mm
Material :
Customized or galvanized sheet, Stainless steel, Galvanized Sheet(
Description

High Speed Hydraulic Carbon Steel / Galvanized Coil Cut to length line Machine

Definition

A flat sheet material is not actually produced as a flat sheet. A cut to length line uncoil the material, level it and cut it to the required length. The end product is cut to a very precise length tolerance. When using cut to length line, there are a few important points; like thickness, type and length of the material.Users need more precision during cutting in metal cutting operations day to day. Cut to length process is important in the steel drum production.

Technical Parameter

cutting to length line technical parameter

Item Parameter
Steel strip thickness 0.28-4.0mm
Steel coil width 500-1500mm
Steel coil I.D. ∅508mm, ∅620mm
Cutting tolerance Length tolerance L=2m≤1mm
Diagonal tolerance L=2m≤±1.5mm
Cutting length 500-3000mm
Working elevation +1150mm
Installed capacity 61.5KW

Working Process

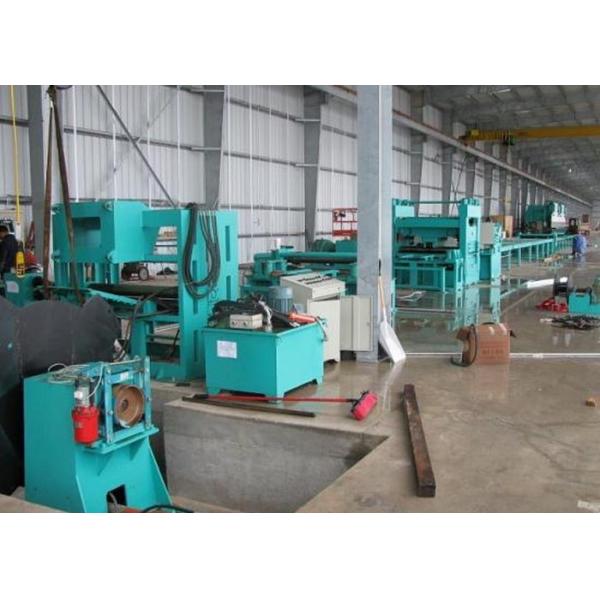

Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table

Hydraulic Cut To Length Line Machine / Carbon Steel Cut To Length Machine

1 Entry coil car 1 set
2 Uncoiler 1 set
3 Outboard support 1 set
4 Feeding table 1 set
5 Leveler 1 set
6 Loop table 1 set
7 Side guide 2 pairs
8 Servo feed roll 1 PC
9 Cutting 1 PC
10 Conveyor belt 1 set
11 Stacker 1 set
12 Blower 1 set
13 Hydraulics 1 set
14 Electrics

1 set

More Products Parameter And Production Capacity Design As a Reference

Model Coil width (mm) Coil max weight (T) Power (kw) Speed (m/min) Thickness (mm) Floor space (m)
0.3~2x1400 500-1400 15 95 180 0.2-2.0 11*4
0.3~3x1700 500-1700 20 90 180 0.2-2.0 11*4
1~6x1800 600-1800 30 155 180 0.2-2.0 11*5
0.3~3x1600 500-1600 20 90 180 0.15-2.0 12*6

After sales support


We have a 10 persons professional and strong installation team. And Will provide the machine life time service for you. Any problem , contract us and we will solve for you.We can send our technicians to install and train the workers in the clients' factories with extra cost.

The warranty of YBT Shutter Roll Forming Machine is one year after the client receives the machine.Within the one year, we will offer the replacement parts to the client free of charge.
