Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min
Specifications
Brand Name :
YBT
Model Number :
YT296647
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
3 sets per month
Delivery Time :
65-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
steel truss production line
Material :
steel
Power :
380V 50Hz
Max.speed :
20m/min
Air pressure :
0.6-0.8MPa
Warranty :
1 Year
Description

Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min

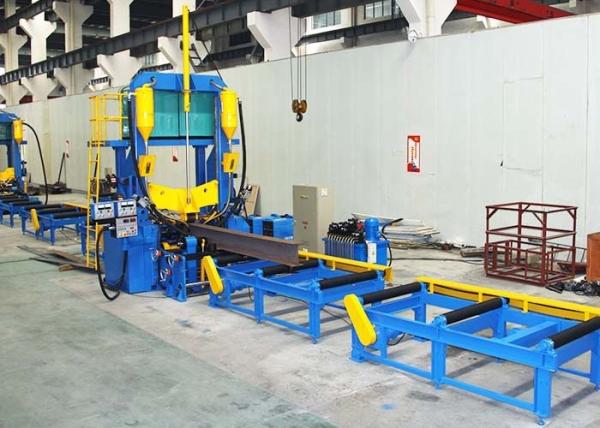

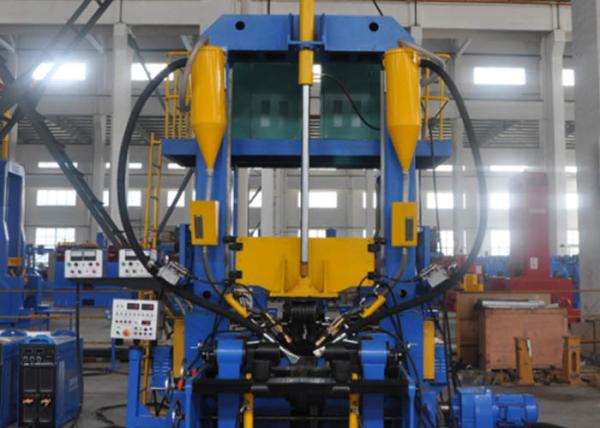

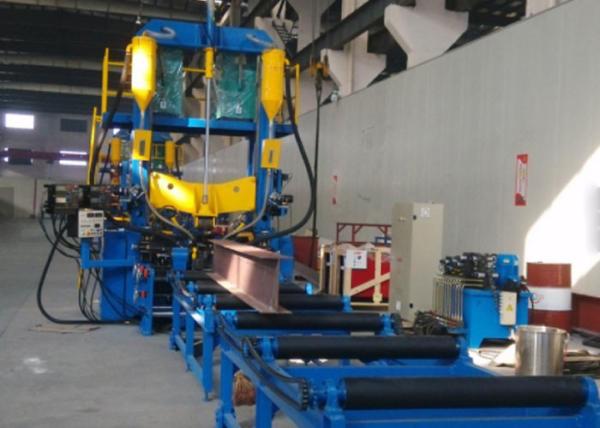

This is a special machine for H beam direct assembling, welding and straightening, it combines assembly machine, automatic welding machine and straightening machine into one machine,thus improves productivity, reduces cost, and saves the installation space. It can produce H-beam and T-beam with high efficiency.

Technical Parameters:

No.

 Item Specification
1 Rated power 6*100KW
2 Power source 380V 50Hz
3 Phase number 3phase 4cable
4 Duty cycle 20%
5 Air pressure 0.6-0.8MPa
6 Coolant flow 40L/min
7 Coolant temperature ≤30°C
8 Dimension 32m*1.3m*2.0m
9 Max.speed 20m/min
10 Width of deck 576/600mm
11 Length of transmission rack 2*12m
12 Width of transmission rack 700mm
13 Speed of transmission 15m/min

Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min

Main features:

1 . Compact and reasonable structure, beautiful appearance.

2 . Single-row multi-point welding principle, fast welding speed, up to 20m/min.

3 . The process is simple, convenient and fast, saving labor costs and improving production efficiency.

4 . Three times of discharge, greatly reduce the impact on the power grid, to ensure the stability of product welding.


Finished products are as follow:

Steel Section Making H Beam Assembly Machine Steel Bar Making Line 20m / min


Service Commitment & Quality Assurance:
Installation: If necessary, engineer is available to service machinery overseas; but all the relevant cost and extra 100USD/day for our engineer will be paid by the buyer.

Warranty: 1 year since the machine leave seller's factory.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
