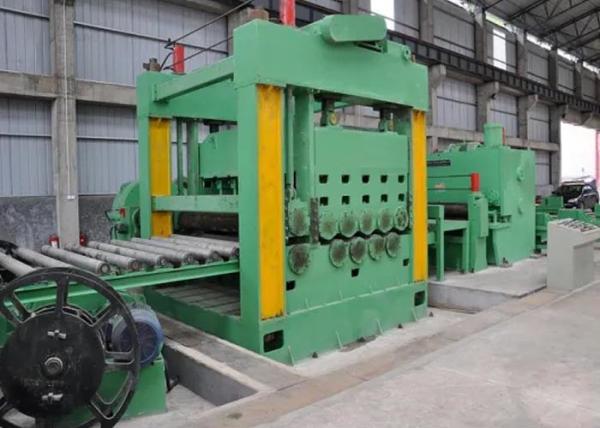

Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line
Specifications
Brand Name :
YBT
Model Number :
BT144560
Certification :
CE,SGS,ISO,
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 Sets/ one month
Delivery Time :
90 -120 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Cut to length line
Voltage :
380V, 220V/380V, 220V or 380V or 415V, 3 phase, 380V/220V/415V/440V/customized
Type :
Cutting Machine
Coil Thickness :
0.3-4.0mm
Control system :
PLC
Material :
carbon steel, galvanized sheet, Stainless steel, Galvanized Sheet(Customized), PPGI
Description

Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line

Product Application

Cut to length line machine is used to cutting a certain width and thick steel plate transverselly to a present length, then be packed to plate stacks. It applies to hot/cold rolled/galvanized steel coil, low-alloy steel in the fields of welded pipe production factory, steel processing, and other steel products industry such as metallurgy, transportation, vehicle industry, etc. This production line is PLC control, it possesses characters of high level automation, high shear accuracy, good strip dividing quality and wide application scope.

Cut-to-length Line Machine Components


S.N		 Equipment name Quantity
1. 5 Ton hydraulic decoiler 1 set
2. Hydraulic pinch and press and pre-leveling device 1 set
3. Slitting machine 1 set
4. Scrap winder 1 set
5. Tension stand 1 set
6. Hydraulic recoiler 1 set
7. Electrical control system 1 set

Technical Parameter

Material SS,CR,HR,GI,AL,Copper etc. Coil ID Φ508
Model Number BT144560 Coil OD ≤Φ1500
Coil max weight 10T Length arrarge 500-4000
Power 90kw Flatness ≤1.5
Speed 45m/min Length accuracy ≤±0.5
Thickness 0.3-4.0mm Floor space 23*8m

Simple drawing of YBT Cut To Length Line Machines ,and name of line each part,pls check the table below

Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line

Advantages

OEM services are welcome, welcome to visit our factory firstly before you place an order.


1 . High Quality Control, 20 years mechanical manufacturer
2 . Cooperate with many foreign customers, have rich experience in overseas.Committed to the standardization of machinery market, we make great efforts to the production of high quality and durable machine with the technological innovation.
3 . Our products with Best price and quality, price and quality


Our mission is to help our customers reduce costs and improve efficiency!

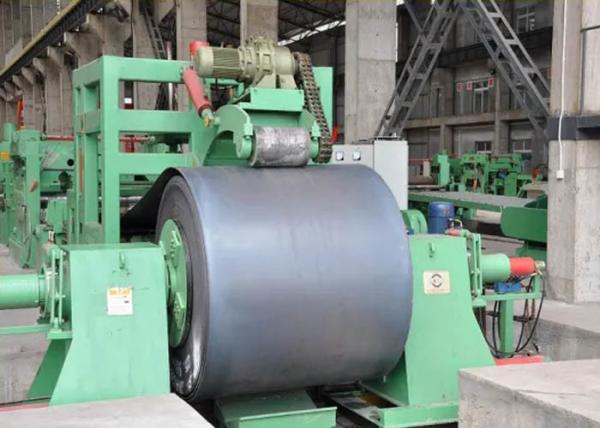

Details parts of Cut to Length Line Machine

1 . Accumulator 2 . Pinch and Leveling Device 3 . Conveyor Belt

4 . Stacking Device 5 . Leveling 6 . Uncoiler

Cropping Shear Line simple Coil Cut to Length Line Machine transverse shear line

Packaging & Shipping

1 . Before loading to the container, we will check the machine first

2 . make some protection on the machine, such as, we will paint the coil on the roller and shaft, in case the roller and shaft got corrosion and rusty during long time delivery

3 . we will make the plastic package on the easy damage parts, and fix all the parts into container by the steel wire rope, and ensure the machine will not

4 . we will take photos for customer when loading to container.
