Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration
Specifications
Brand Name :
YBT
Model Number :
YT983408
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
PU Sandwich
control system :
PLC
material :
steel
Warranty :
1 Year
Sheet Thickness :
0.4 - 0.8mm
sheet width :
1000mm
Description

Automatic high strength decoration composite PU foam sandwich wall machine

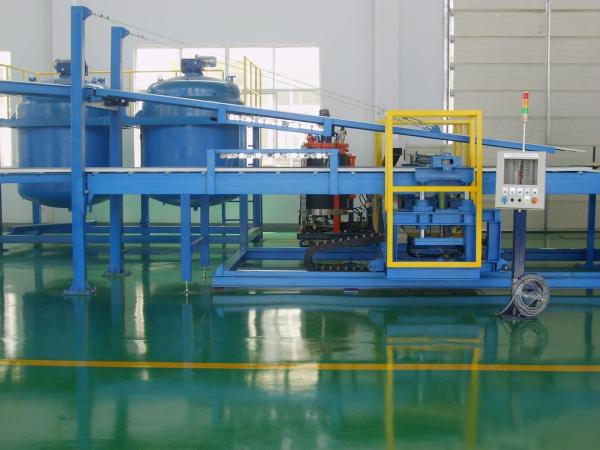

Polyurethane resin,curing agent,and foaming agent are delivered to high-speed mixing head in certain proportion through metering pump,evenly mixed and continuously coat on basal plate by coating head’s reciprocating motion,then enter into double crawler machine with plate,foam and cure between the top and bottom layer of heated double crawler machine;when it is cured and shaped,the trimming device on both sides will get it into accurate size.Finally,the sizing following tracing cutting machine cut off it as per preset length.

Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration

Technical parameters:

Reference Work Flow:

Decoiling -- roll forming -- PU injecting -- Belt conveyer -- Fly cutting -- product run out

Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration

The PU panel forming machine mainly includes decoiler, feeding machine, film-covering installation machine, roll forming machine, PU foaming machine & injecting machine PU, laminator, automatic tracking cutter, and PLC control cabinet, etc.

Name
PU sandwich panel
Component
Top plate
Core material
Bottom plate
Thickness
0.3-0.6mm (normal use)
20-150mm
0.3-0.6mm (normal use)
Material
PPGI, PPGL, Stainless
PU
PPGI, PPGL, Stainless
Type mode
950mm PU roof and wall sandwich panel
Length
Customized
Color
Ral standard (normal colors : white, red, blue)
Application
Prefab house, poultry house, buildings, Kiosk, Booth, Sentry Box, Guard House, Shop, Toilet, etc.
Property
Weather proof,heat preservation,fireproof,waterproof,high hardness,good bearing capacity,good anti-corrosion.
Advantages
Light in weight,good durability,waterproof,competitive price,easy -installation

Composite PU Foam Roof Panel Roll Forming Machine High Strength For Decoration

General Main Specifications:

Thickness of finished product

 30-200mm
PU foam density PU foam density 40±5 kg/m³ ( or depend on requrement )

Panel width

 1000mm ( or denpend on customer's requirement )

Thickness of sheet

 0.4-0.8mm

Surface material

 GI/PPGI panel, Aluminum foil or PVC

Automatic control of pu sandwich panel production line:

Automatic control system includes uncoil area control, double crawler forming machine and drying cutting area control, the whole control system is operated through touch screen parameter input and buttons to realize automation production with reliable and stable preformance, simple and easy opeartion, Each operating position is installed with emergency stop button to ensure equipment and personal safety in case of an emergency, The adopting of new technology realizes high accuracy, high intelligence, and high speed control.

Product features of pu sandwich panel production line:

1. Wide application: Ddouble sided color steel tile, one side color steel, the other side soft material panel, one side soft material panel, etc.

2. Fully automatic

3. Technology advantage: The whole line is designed by adopting European technology and developed by our company, can reduce the cost, and improve the machine strength, accuracy and stability.

4. The electrical control system adopts international advanced brand, reliable and less malfunction.

5. The pu sandwich panel is more smooth and has better core density.
