Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine
Specifications
Brand Name :
YBT
Model Number :
BT254103
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets Per Month
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Door Frame Roll Forming Machine
Material :
Carbon Steel, Stainless Steel, Aluminum, Brass / Copper, Alimnium
Power :
Hydraulic, CNC, manual, Other
Warranty :
12 Months
Extra services :
Machining, End Forming, Welding / Brazing, bending / folding, Slotting & Notching
Automation :
Automatic, manual, semi-auto
Description

Door Frame Roll Forming Machine Rolling Shutter Making Machine

YBT Shutter Door Roll Forming Machine is consist of decoiler,roll forming machine,electric controlling system,automatic cutting ,table.We are professional for exporting Roll form machine to all over the world,such as Myanmar ,Vietnam,Taiwan, Singapore, Malaysia ,Thailand, , South Africa, Mozambique,Zimbabwe, Nigeria, Egypt etc.

Technical Parameters of Door frame roll forming machine

NO Item Description
1 Product' sizes According to customer's request
2 Processing material GI
3 Processing thickness 0.8mm--1.2mm
4 Main motor power 7.5kw
5 Power of hydraulic station 5.5kw
6 Quantity of roller stations 14
7 Production speed Approximate 15-25 m/min
8 Diameter of shafts Φ75mm
9 Material of rollers Cr12 steel with vacuum heat treatment HRC57°-60°
10 Material of shafts 45# steel quenched and tempered
11 Material of cutting blades Cr12 mould steel with quenched treatment
12 Size of machine Approximate 6500mm(L)×1200mm(W)×1300mm(H)
13 Theoretical weight Approximate 7000KGS
14 Driven method Chain transmission
15 Brand of PLC Yaskawa

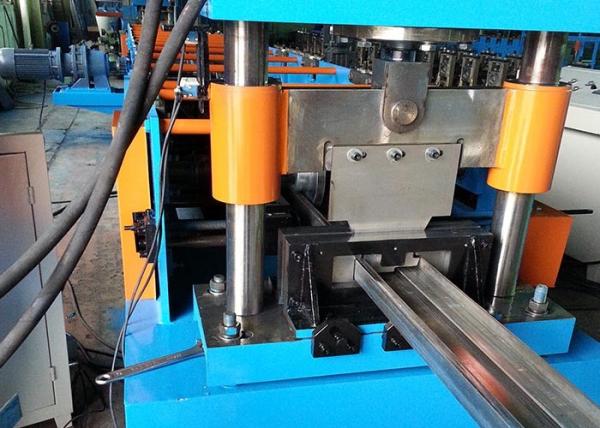

16 Cut mode Hydraulic profile cutting
17 Power supply 380V 50HZ 3Phases or at buyer's requirement

A : Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.
B : Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation
C :Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.

How to make orders :We can help to analyze the roof tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .We can confirm all details of the roof tile roll forming machine together, including the drawing, thickness of material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

Or show us your drawing of shutter door frame

Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine

Standard size and design

Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine

Industrial Shutter Door Roll Forming Machine / Door Frame Making Machine

Packaging & Shipping

(1) . Main body of Shutter Door Frame Roll Forming Machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container with steel rope and lock catch suitable for long-distance transportation,

(2) . spare parts are covered by plastic film.

(3) . With even lifting point in the machine for easy container loading and uploading.
