PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
PU Foam Shutter Door Roll Forming Machine / Shutter Manufacturing Equipment
Specifications
Brand Name :
YBT
Model Number :
YT700823
Certification :
ISO SGS CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets per month
Delivery Time :
45-60 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
PU Foam Roller Shutter Door Machine
Warranty :
1 year
Voltage :
380v/50hz,3 phases
Tile Type :
Steel
color :
your request
Condition :
New
Description

PU Foam Roller Shutter Door Machine , Roller Shutter Door Roll Forming Machine

Description:

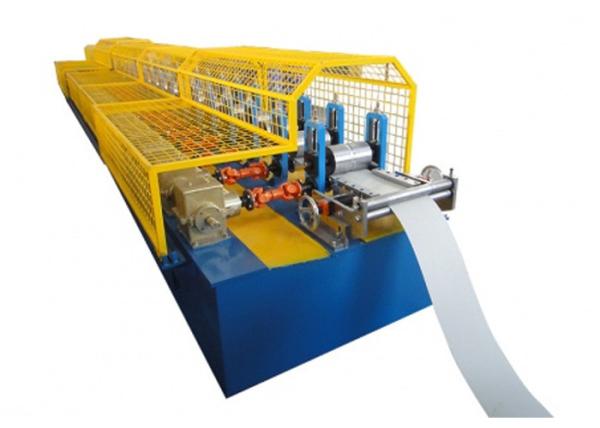

This machine is used to produce roller shutter door slats. The strip coils go through decoiling, guiding, roll forming, cutting, and then comes the end product. Main components of this machine are decoiler, roll former, cutting device, run-out table and control cabinet, etc. We use high quality steel for machine base and structure to ensure the great strength of the machine.

Working Flow:

This foaming aluminum shutter forming machine integrates cold roll forming technology and PU foaming technology into one, thus continuous automation production of foaming roller shutter door is achieved.

Manual uncoiler - Roll forming machine - Computer control system - Hydraulic control system - Cutting system - Output table

Main Machine Parameters:

Components Technical Parameters Quantity
1 Uncoiler 1.Width: 100-300mm
2.Speed: Based on the machine speed
3. I.D: 460-508mm; O.D: 1350mm		 1 set

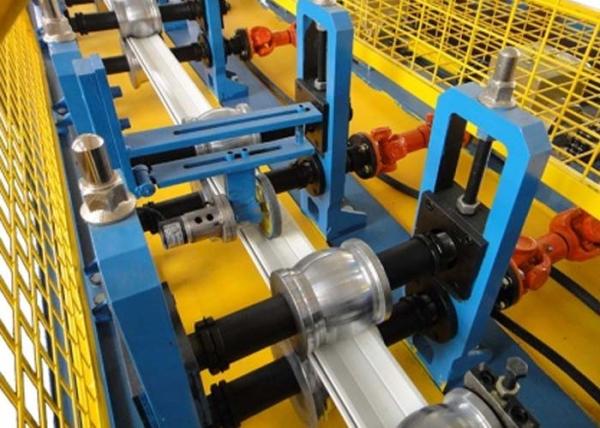

2 Roll Forming Machine

1.Shaft: High quality 45# Steel with tempering treatment HB280
2.Roller: GCR15 steel with quench treatment.
3.Forming Station: 28-38 stations
4.Forming Speed: 6-15m/min
5.Motor Power: 7.5kw( subjected to final design)
6.Transmission: Gear-box transmission
7.Dimension of the Line: Approx. 26000mmX1500mmX1400mm
8.Weight of the Line: Approx. 8T

 1 set
3 Foaming machine

1.Type: Low Pressure Blowing Type
2.Foaming Material: PU
3.Power: 5KW
4.Foaming Rate: 10 times in max
5.Output: 120KG/Hour in max
6.Screw Diameter: 6mm
7.Dimension: Approx. 120x100x170 mm
8.Weight: Approx. 300KG
9. Clearing: by Solvent

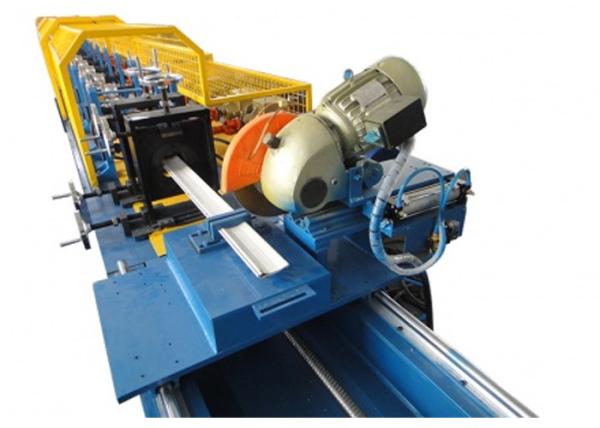

4 Fly Saw Cutting Device

1.Material Of Cutting Mold: Cr12 steel with quenched treatment HRC 60-62
2.Cutting Pressure: 12-16Mpa
3.Cutting Power: 2KW (subjected to final design)
4. Tolerance Of Cutting Length: +/-2mm

 1 set
5 Hydraulic Station

1. Power: 4kw
2. Solenoid Value: Beijing Huade

 2 pieces
6 PLC System

1.Control System: PLC
2.Encoder
3.Converter
4.Pressure of Hydraulic Station: bigger than 16Mpa
5. PLC Control Box: 700mmx1000mmx300mm

 1 set
7 Collection Station 1. Angle iron welded 1 set

After-sale service:
1. Installation and training of Roller Shutter Door Roll Forming Machine :
a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2. After Service of Shutter Roller Shutter Door Roll Forming Machine:
a. One year guarantee for whole roof forming machine.
b. 24 hours technical support by email or calling
c. If there is any problem found of the roof forming machine, we will repair it for free in one year.
