CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm
Specifications
Brand Name :
YBT
Model Number :
BT254102
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10 sets Per Month
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Shutter Door Roll Forming Machine
Material :
Carbon Steel, Stainless Steel, Aluminum, Brass / Copper, Alimnium
Power :
Hydraulic, CNC, manual, Other
Warranty :
12 Months
Extra services :
Machining, End Forming, Welding / Brazing, bending / folding, Slotting & Notching
Automation :
Automatic, manual, semi-auto
Description

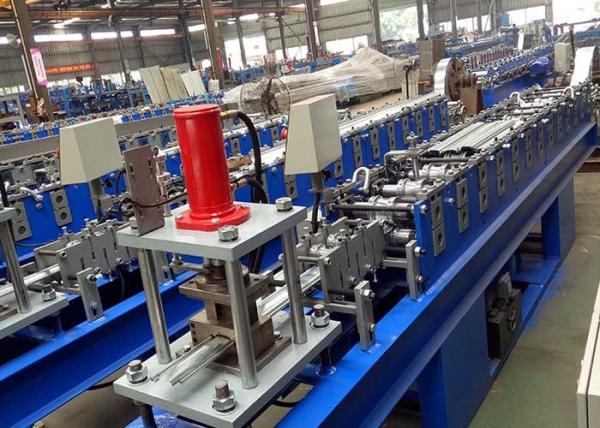

Automatic Metal Steel Roller Shutter Door Roll Forming Machine

YBT Shutter Door Roll Forming Machine is consist of decoiler,roll forming machine,electric controlling system,automatic cutting ,table.

We are professional for exporting Roll form machine to all over the world,such as Myanmar ,Vietnam,Taiwan, Singapore, Malaysia ,Thailand, , South Africa, Mozambique,Zimbabwe, Nigeria, Egypt etc.

Details of Shutter Door Roll Forming Machine

No. Item parameter
1 Machine size 4800*800*1600mm
2 Machine weight 2000kg
3 Machine power 5.5kw
4 Hydraulic engine 2.2kw
5 Roll speed 14M/Min
6 Roll stations 13
7 Roller material 45#Steel
8 Effective width 75mm
9 Feeding width 125mm
10 Voltage 380V 50Hz 3PH/Customized
11 Material thickness 0.7-1.2mm/Customized
12 Control System Schneider/Delta/Customized

Control PLC control China/Taiwan/Japan/Germany brand
Main motor Main: 4kw
Language English or as your request
Cutting Cutter High grade Cr12 steel
Cutting system Hydraulic
Hydraulic pump Main: 3kw
Cutter frame Steel plate welding

Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Show us your drawing of shutter door

CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm

Standard size and design

CNC Metal Steel Roller Shutter Door Making Machine 5.5kw 4800*800*1600mm

Before ordering:

We can help to analyze the tile in your market. Which one is popular and which one will be popular.

Then your product is hot sale roof tile .

We can confirm all details of roll forming machine together, including the drawing, thickness of

material, hardness of the steel coil, the input width of the steel coil, capacity of the roll forming machine.

During production:

We can send the pictures to show you the schedule of your roll forming machines.

We will ask you what color of the roll forming machine body. Produce the machine under your suggestion

After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and

you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.

( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, or you can write mail to me.
