Easy Operation PU Sandwich Panel Machine Roller Double Belt Laminator Machine

The PU sandwich panel produced by us is good for moistureproof capacity, insect-resistance,uninflammability and sound insulation, and light weight. Besides, it is never out of shape whether in dry or wet conditions. The rigid polyurethane foam has been recognized as the best building thermal insulation material by international world today. It has low heat conductivity, and high bending resistance capacity. This rigid polyurethane foam doesn’t absorb water or decay, and it cannot be damaged by insects and mice. It has good fire resistance, and large scope of heat resistance. With the physical properties of polyurethane PU and our unique prescription, we combine high temperature polyurethane with coating steel panel, thus compact forming is achieved.It has good heat preservation capacity. This machine can be nailed as well as sawn, which makes construction easy and convenient. This equipment is widely used for steel structure workshop, roofs of simple and easy movable houses, wall body, suspended ceilings of air purification room, and separation.

Technical parameters:

1. Thickness of Forming Sheet: 0.6 ~ 1.2 mm.
2. Forming Speed: 12 ~ 16 M/min.
3. Roll Shaft Diameter: 40 mm Dia.
4. Hydraulic Motor: 7.5 HP ~ 10 HP
5. Roll stands: 10 ~ 12sets of roll in SK2-hard chrome coated.
6. Attached with cooling equipment.
7. Complete with uncoiler, hydraulic cutting device and including run-out table.
8. This machine is controlled by computer system with touch screen.

Reference Work Flow:

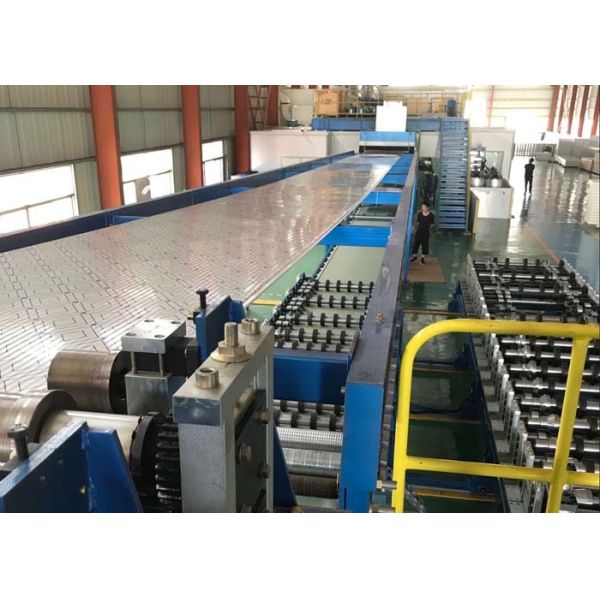

The PU panel forming machine mainly includes decoiler, feeding machine, film-covering installation machine, roll forming machine, PU foaming machine & injecting machine PU, laminator, automatic tracking cutter, and PLC control cabinet, etc.

General Main Specifications:

Other detailed information:

a . Speed of working is 0-8m/min. Continuous running, with roll forming, PU injecting, PU solidifying, cutting

b . High quality PU foaming and injecting machine, China famous brand or as customer require.

c . Rubber belt conveyer 24 meter length, economical configuration for sandwich panel production. Production quality can be well ensured

d . Bend saw cutter : Maximum thickness is 200mm. The suction channel is reserved for additional suction system to prevent the dust pollution.

e . PLC VF controlling for the whole line. Production length and number can be set on the system. International famous brand electric products.
