Reliable Automatic Metal Slitting Line 1250mm Steel Coil Sheet Metal Slitter

Description

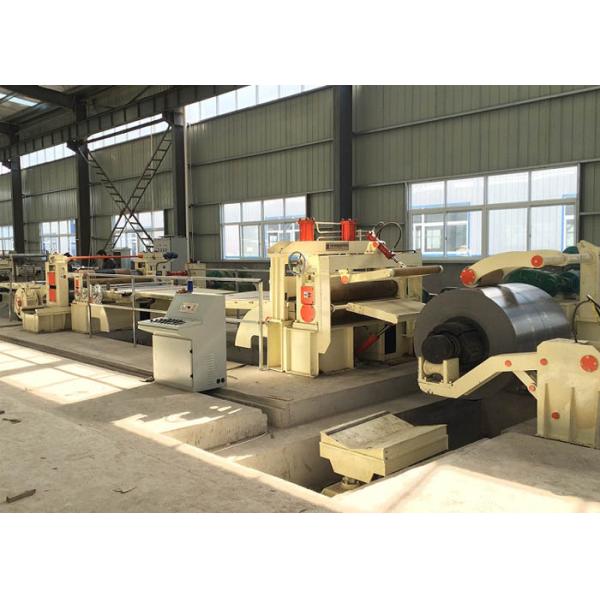

Steel Slitting Machine Line is composed of uncoiler, pinch & feeder, slitter, re-coiler etc. Its function is to slit wide coils to narrow strips coil ,which can be used for milling ,welding tube, cold bend forming etc .at the same time changing different material blade can slit various metal coils.

Working flow

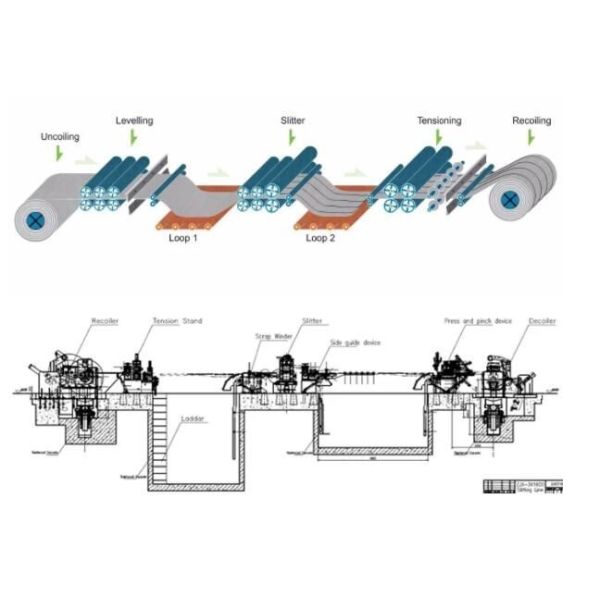

Loading coil — uncoiler — straightening head & pinching & leveling machine — hydraulic shearing machine — vertical roll— rotary slitting machine —scrap winder — accumulator — tension device — recoiling machine — discharging car

Specifications

This Metal Slitting Line of several parts, as listed below.

1. Hydraulic loading car
2. Dual-head decoiler
3. Coil head drawing machine
4. Clamp-feeding and leveling machine
5. Cross cut shear for panel head
6. Loop bridge
7. Side stop device
8. Main slitting machine

9. Scrap baller
10. Transmission parts
11. Separator
12. Damp tensioning device
13. Main hydraulic recoiler
14. Hydraulic unloading car
15. Hydraulic system
16. Electrical control system

Advantages

1.This production line can be automatic running by input the products length and batches to the PLC control system .

2. Very strong base frame treated to avoid any vibration.

3. Precise- All the rollers are CNC lathe processed and polished on the surface to guarantee the accuracy.

4. All the rollers are quenched and harden treated to guarantee the long life.

5. What’s more we also can design steel plate cut to lengh machine according to customer’s different thickness.

Our Services

1. We will send the engineer for the installation and training of your workers on how to operate this machine in the correct way.

2. Warranty Team

One year quality guarantee, life guarantee repair. Within the quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3. We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4. We can also be sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5. We supply the pre-sell service-Design for the whole project for stainless steel pipe making/ carbon steel pipe making.

6. We will be responsible for loading and shipping.
