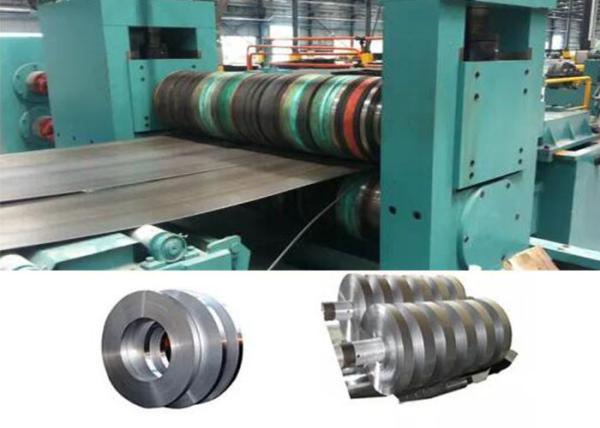

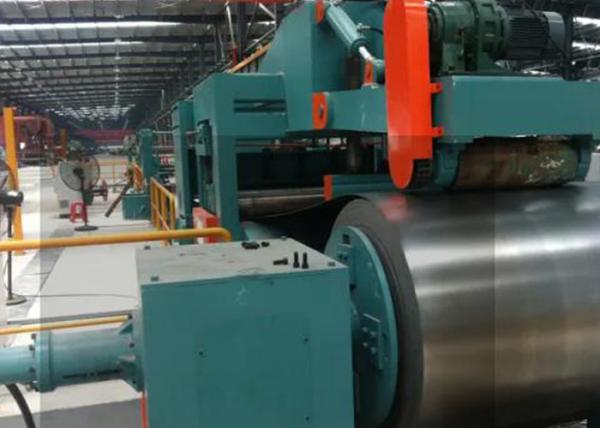

Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute
Specifications
Brand Name :
YBT
Model Number :
YT687752
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
1 set per month
Delivery Time :
90 - 120 work days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Steel Coil Automatic Metal Sheet Slitting Machine
Thickness :
0.3 - 3.0mm
Material :
colored steel / metal
Width range :
400 ~ 1600mm
Slitting speed :
100 m / min
Slitting blade specification :
¢220×¢340×δ15mm
Description

Steel Coil Automatic Metal Sheet Slitting Line thickness 0.3 ~ 3mm 100 m / min

Description:

Steel Coil Automatic Metal Sheet Slitting Machine, is used to uncoiling, slitting, recoiling the steel rolls into demand width steels. It can be applied to process the cold or hot rolled steel coil, Silicon steel coils, tinplate coils, Stainless steel and color coated steels. galvanized steel, stainless steel tinplate, silicon steel ,copper and aluminum, etc. It can be applied to: steel factory, transformer, electrical motor, electrical equipment, car, building materials, door, packaging industries.

We can process material of Q235 cold rolled and galvanized sheet; Q345 hot rolling pickling; Stainless steel

Width range is from 400-1600mm

Material thickness 0.3-3.0mm(for stainless steel max.processing thickness is 3.0mm)

Slitting accuracy :Width ±0.15 mm, machine is with high precision

We make the slitting blade 220*340*15mm, slitting speed can reach100m/min

Technical parameter:

Items

 Parameter
Material Q235 cold rolled and galvanized sheet; Q345 hot rolling pickling; Stainless steel
Thickness range 0.3~3mm(for stainless steel max.processing thickness is 3.0mm)

width range

 400~1600mm

Slitting accuracy

 Width ±0.15 mm

Slitting speed

 100 m/min

Uncoiler load-bearing

 ≤20t

Coil diameter

 ¢500/610 mm

Control system

 PLC

Slitting blade shaft size

 ¢220 mm
Slitting strips number(max) 0.3-1.0mm: 25-16strips
1.0-2.0mm: 16-10strips
2.0-3.0mm: 10-6strips

Slitting belting width(min)

 ≥40 mm

Slitting blade specification

 ¢220×¢340×δ15mm

Structure:

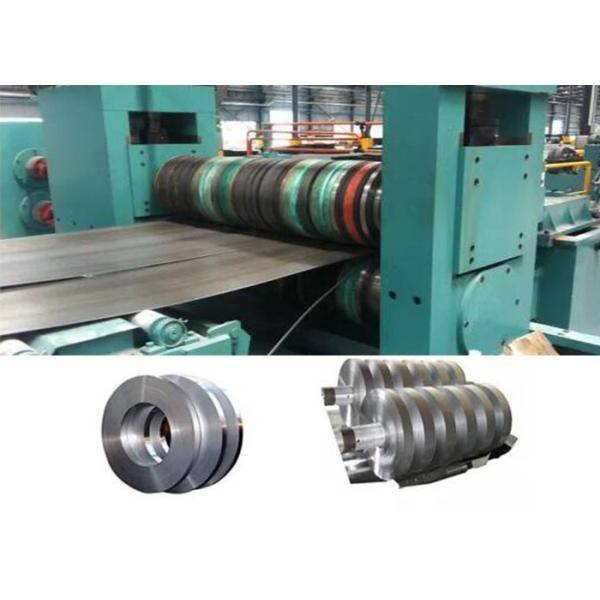

Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute

Maximum of the slitting strips number:

0.3-1.0mm: 25-16strips
1.0-2.0mm: 16-10strips
2.0-3.0mm: 10-6strips

Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute

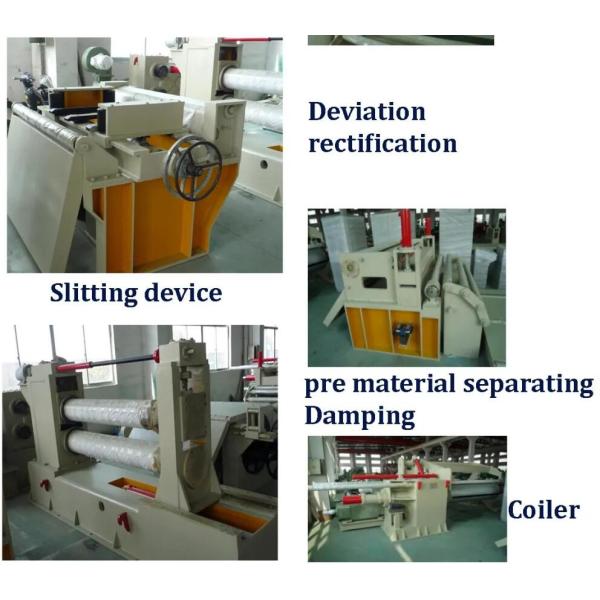

Steel Coil Automatic Metal Sheet Slitting Machine is Compose of Decoiler, feeding device, slitting machine, recoiler (Rewinding) machine.

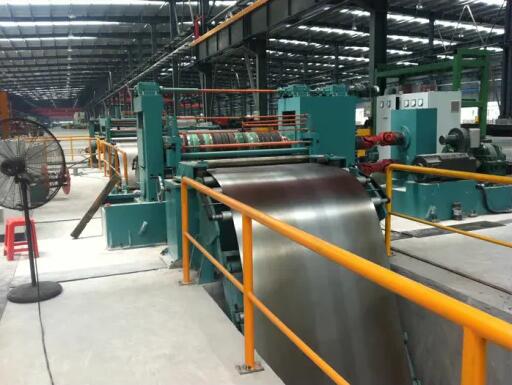

Colored Steel Coil Slitting Line Thickness 0.3 - 3mm 100 M Every Minute

Uncoiler load-bearing ≤20t

We use PLC system, easy to operate and control

Function of Steel Coil Automatic Metal Sheet Slitting Machine: It is used to the longitudinal cutting for the steel coils and rewinding the slit strips into coils.

Advantages : the Steel Coil Automatic Metal Sheet Slitting Machine is convenient to operate, high cutting precision and utilization factor of the material, adopts the infinitive speed.

After-sale service:

1 . Can you make the machine according to my design or photo type?

a . Yes. We have an experienced team to work out the most suitable

design and production plan for the machine.


2 . How can we be assured that you will deliver us quality machine with spare parts?

a . Customers to send the technical people to our factory for checking the quality.

b . We can send the technicians to the buyer`s factory for the installation of the machine.


3 . What policy of your garentee?

Within the One-year period, we could supply you the replacement

parts free of charge for any damaged parts caused by quality problems

after one year,you need to pay the factory cost.
