Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material
Specifications
Brand Name :
YBT
Model Number :
YB952608
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
2set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Product Name :
Steel Sheet Slitting Machine
Color :
Customized
Warranty :
1 Year
Width precision :
≤±0.05mm
Knife pivot material :
40Cr
Control system :
PLC control
Description

Hydraulic Aluminum Steel Coil Slitting Line Rolled Steel Sheet Slitting Machine

Product introduction

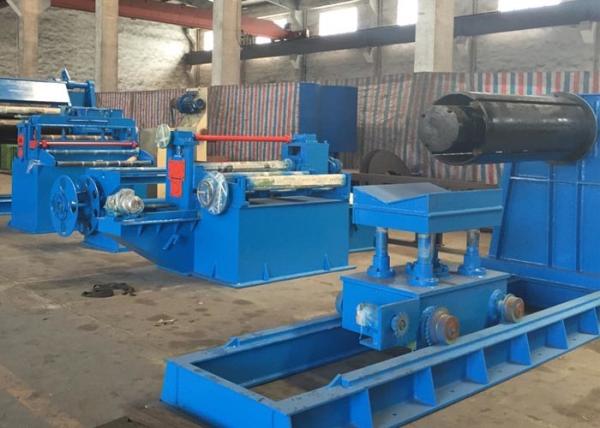

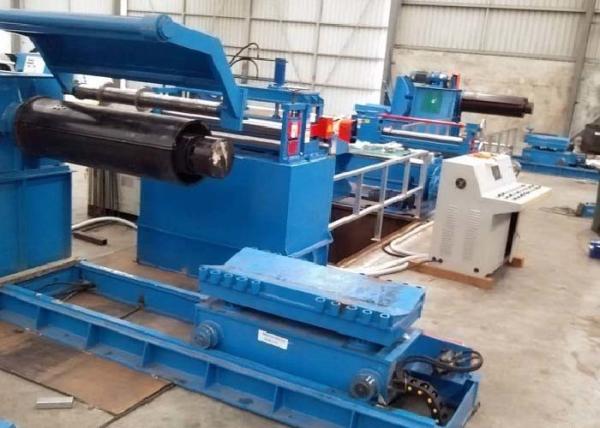

Metal Slitting Line are designed to handle heavier materials. They are also capable of a variety of edge trim scrap systems that include scrap winding, scrap balling, and scrap chopper systems.Metal Slitting Line consists of Decoiler with coil car, guiding & pinch device, medium gauge slitters, dual head/quick tooling change for the auto slitting machine is available, scrap winder, side-guiding device, looping, tension device, recoiler.
Advantages:
Weight of middle thick steel coils usually with weight up to about 30Tons, in this case, double mandrel uncoiler is necessary to load so heavy coils. Double mandrel decoiler can be made to three steps respectively for three kinds of international standard inner diameter coils Φ508mm, Φ610mm, Φ760mm. At the same time, Double mandrel decoiler can made to be double cones without steps that can support and decoil a wide range of different ID coils from Φ480-800mm for the special steel slitting machine.

Process Flow:

Hydraulic Aluminum Steel Coil Metal Slitting Line 40Cr Knife Pivot Material

Metal Slitting Line Specification
Model No. RS 1.0-6.0 RS 2.0-8.0 RS 3.0-10.0
Coil Material CR Coils , HR Coils, S.S Steel Coils, GI Coils , AL Coils, Copper Coils Picking Oil Coils
Coil Thickness 1.0～6.0mm 2.0～8.0mm 3.0～10.0mm
Line Speed 0～110m/min 0～50/80m/min 0-30/50m/min
Coil Weight ≤30T(35T) ≤30T(35T) ≤30T(35T)
Coil I.D Φ508,φ610,φ760mm Φ508,φ610,φ760mm φ508,φ610,φ760mm
Coil O.D ≤φ2200mm ≤φ2200mm ≤φ2200mm
Strip Width ≥30mm ≥50mm ≥70mm
Number of Strip 4～15 5～20 5～18
Slitting Accuracy ±0.3mm ±0.3mm ±0.3mm
Blade shaft Ф260mm Ф280mm Ф300mm
Electrical Control System PLC Automatic control PLC Automatic control PLC Automatic control

Metal Slitting Line Main Technical Specifications

COIL/ROLL DETAILS Material HR, CR, SS, GI, PPGI, Copper
Tensile Strength δb≤600Mpa,δS≤360Mpa
Coil/Roll thickness 1-10mm
Steel Coil/Roll width 500-2200(Max)
Coil/Roll I.D Φ500-760 mm
Coil/Roll O.D Φ2000mm(Max)
Steel Coil/Roll Weight 35T(Max)


Slitter parameters		 knife pivot diameter Ф220 mm
Knife pivot material 40Cr
Blades specification Φ220mmXφ360mmX20mm
Blade material 6CrW2Si
Max slit quantity 4 pcs (4mm) 20 pcs(1mm)
Width precision ≤±0.05mm


Other parameters		 Power 380V/50Hz/3Ph(Customized)
Line speed 0-80m/min
Capacity 360 KW
Whole line Dimension 45m(L)X10m(W)
Line direction From right to left(Face to machine)

Our Services

1) We will send the engineer for the installation and training your workers how to operate this machine in correct way.

2) Warranty Team

One year quality guarantee, life guarantee repair. Within quality guarantee period, except for failures caused by human error, repair parts will be provided for free. After the quality guarantee period, only charge the cost of the spare parts.

3) We supply the pre-sell and after-sell service.

pre-sell service: workshop design, and production output design

after-sell service: installation and training, and the skilled engineer for working.

4) We can also sent the engineer working for you serval months or 1 year. The engineer will help you to improve the output, reduce the waste and decrease the cost.

5) We supply the pre-sell service-Design for whole project for stainless steel pipe making/ carbon steel pipe making.

6) We will be responsible for the loading and shipping
