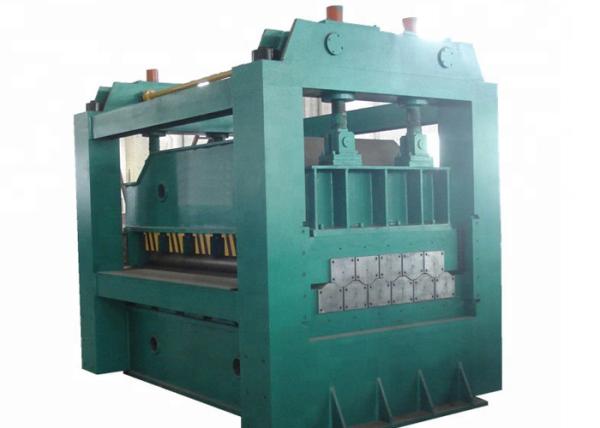

Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional
Specifications
Brand Name :
YBT
Model Number :
YB952606
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
60-90 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Coil cut to length line machine
Condition :
New
Color :
Customer's Requirement
Control system :
PLC control
Thickness :
0.1-6mm
Capacity :
40T
Description

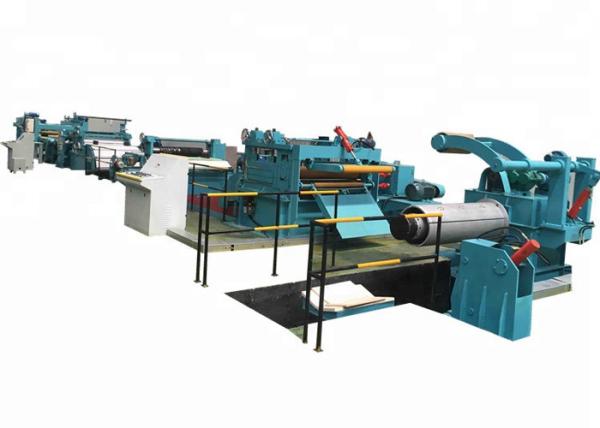

PLC control Coil cut to length line machine and sheet straightening machine

Brief descriptions:

Coil cut to length line machine are purposed for Uncoiling, Leveling and Straighting as well as Cross Cutting metal strip to produce sheets for proper Stacking; every these functions are accomplished by our machines which are designed to cope with an impressive variety of material features ranging from the thinner softer aluminum to the thicker – tougher stainless and high strength carbon steel.

Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional

Specifications:

Raw material parameters Raw material GI.SS.
Thickness 0.1-6mm
Feeding width 800-2500mm
Effective width As per your profile
Inner Diameter φ508-610mm
Max Coil width ≤φ1800mm
Capacity 40T
Equipment parameters Material of pre-leveling roll: 42CrMo, Diameter: φ180mm；mid-frequency Quenching , Hardness: HRC56-60
Strip :width: ≥50mm；
Slitting precision: Width tolerance ±0.1mm；
Slitting pieces: 0.5mm plate≤15pcs；3mm plate≤10pcs；
Material of tool shaft: φ200mm；Material 42CrMo;
Blade specifications: φ3100×φ200×15mm；(prepared by users)
Blade material: 6CrW2Si, Hardness HRC 56-60;
Recoiling speed: 0-500m/min;
Recoiling ID: φ508mm；
The standard height of the production line: 900mm;
Main electric
parameters:		 Using power 380V±10% three-phased electricity, 50Hz
Control voltage: 220V±10%
Electric control cabinet: IP40
Gross installed capacity: 206.3kw
Using environment: Temperature: -5-45°
Humidity: 20-85%PH(without dew)
Sea level: Under 1000m
Strength of earthquake: 6 magnitude
Craftsman parameters of the line: Feeding direction: From operator’s side from right to left
Number of operators: 3-5 people
The color of the line: It could be decided by the buyer.

Main components

1. Hydraulic coil Car 1 unit
2. Hydraulic de-coiler 1 unit
3. Looper 1 1 unit
4 Side guide device 1 1 unit
5. 4-High pre-leveling machine 1 unit
6. Looper 2 1 unit
7. Side guide device 2 1 unit
8. Servo precise straightening machine 1 unit
9. High speed shearing machine 1 unit
10. Transportation table 1 unit
11. Hydraulic lifting table 1 unit
12. Pneumatic stacker device 1 unit
13. Exit coil car 1 unit
14. Pneumatic system 1 set
15. Electrical control system 1 set
16. Hydraulic Control System 1 set


Working flow

Feeding trolley→ un-coiler→ leading and traction head, pinch roll feeding→ high precision leveling device→ cut to length→ unloading table/auto-stacking table

Sheet Metal Roller Straightener Steel Coil Cut To Length Multi Functional

Competitive Advantage:

1), Q: Do you have after sales support?

A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2), Q: How do your machines compare with other big companies in this market?

A: We are up to date with the latest technology and improve our machines accordingly

3), Q: How does your factory do regarding quality control?

A: Quality is priority.YBT People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before

it's packed for shipment.

4), Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name
