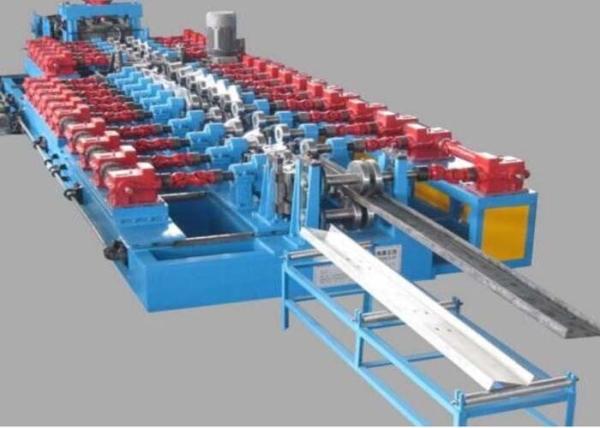

Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting
Specifications
Brand Name :
YBT
Model Number :
YT376509
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
CZ Profile Purlin Makin Roll Forming Machine
Use :
Roof, purlin, Wall, building structure, Anti-vibration
Control system :
PLC
Color :
Customized
Type :
Steel Frame & Purlin Machine, c plus z design cz purlin roll form machine
Work pressure :
235 Mpa-450 Mpa
Description

10-15m/min Z Shape Purlin Roll Forming Machine PlC Control Hydraulic Cutting

The CZ Purlin Roll Forming Machine is used to produce both C and Z purline on one machine.Adjust from one shape to the other, one operator only needs 1 minutes, and the size adjustment can be fully automatic

YBT can also customize the machine according to your requirement.

1. Technical details of z purlin roll forming machine:

Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5mm
Coil width According to products size
Yield strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 14-16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material GCR15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 15kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customers requirement

3. Main componets of z purlin roll forming machine:

No. Name Unit Qty
1 Decoiler set 1
2 Entry Beach set 1
3 Main Machine for roll forming set 1
4 Cutting System set 1
5 punching set 1
6 Output Table set 1
7 Control System(PLC) set 1
8 hydraulic station set 1

4. Z purlin roll forming machine flow charts:

Decoiler-- Roll Forming--PLC System—Hydraulic System –Pressing --Cutting —Output Table

Equipment components:

Hydraulic uncoiler, Roll forming machine, computer control system, hydraulic control system, cutting,stack

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Standard Shape Profile ( Also can be customized)

C Purlin: A=80-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm

Z Purlin: A=120-300mm ; B=35-80mm ; C=10-25mm ; T=1.5-3mm

Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting


CZ Interchange:

equipped with groups motor driven, fully automatic C Z interchange unit, interchange between C and Z controlled by PLC and set through touch panel

Differents shapes of C and Z ,Welcome to send us your new design

Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting

Cutting tool and Punch holes

Pallet Rack C Z Purlin Roll Forming Machine PlC Control Hydraulic Cutting

FAQ

Q : Do you provide installation and commissioning?
A : Sure, we have experienced and professional installation team which available for wordwide areas.

Q : What's the delivery time of your CZ purlin machine?
A : 65-90 days


Q : Did you test you machine before delivery?
A : Yes, all our machines will test 24 hours before leave factory.

Q : What's the payment terms of your machine?
A : Normally its 30% T/T in advance and 70% by T/T


Q : How can inspect the machine if I can't go to China?
A : We will send you machine testing video and also product sample if required.
