Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
Specifications
Brand Name :
YBT
Model Number :
YT376509
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
Semi - Automatic C Section Purlin Cold Roll Forming Machine for steel frame
Automation :
semi - auto
Raw material :
Steel
Cutting Blade Material :
Cr12 Mov
Control system :
PLC control systerm
Input width of the plate :
80 - 300mm
Power :
Hydraulic
Warranty :
1 Year
Description

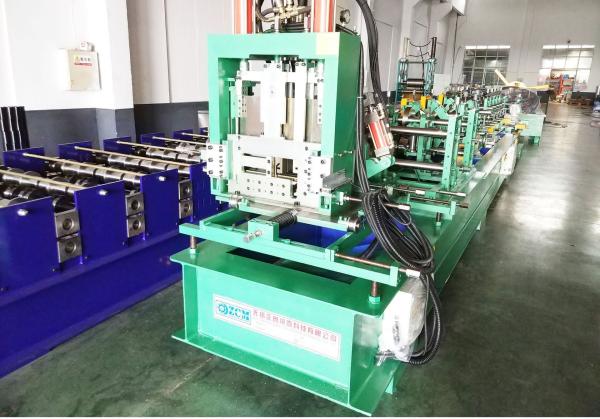

80-300 CZ Purlin Roll Forming Machine Fully Automatic Changing Sizes
This CZ purlin production line can produce c purlins and z purlins with web widths from 80mm to 300mm, flange sizes from 35-80mm and lip sizes from 15-20mm. Whole line is mainly composed of 3ton or 5ton decoiler, levelling unit, feeding guide, roll forming unit, post-punching unit(punching holes after roll forming, more precisely), infinitely adjustable cutting device, electric control system and hydraulic system, etc.

Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes

Processing flow of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Exit table

Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes

No. Mchine composition Quantity
1 . Hydraulic decoiler 3T 1 set
2 . Cold rolling mills 1 set
3 . Hydraulic cutting device 1 set
4 . PLC computer 1 set
5 . Electric cabinet 1 set
6 . Exit table 1 set

Technical Parameters:

Suitable material

 Steel

Thickness of the plate

 1.5-3.0mm

Input width of the plate

 80-300mm

Width of the plate after forming

 80-300mm

Productivity

0-25m/min

Roller steps

 14 rows

Roller material

 45#steel Rolling chromium

Diameter of active shaft

 90-120mm

Wall thickness of the mainforming machine

 20mm steel plate

Main forming machine body

 350mmH steel

Transmission chain

 2 inches

Cutting hydraulic system

 CDF-10 gear pump

Motor power

 5.5kw

Dimensions of major structure

 8500mm*1600mm*1200mm

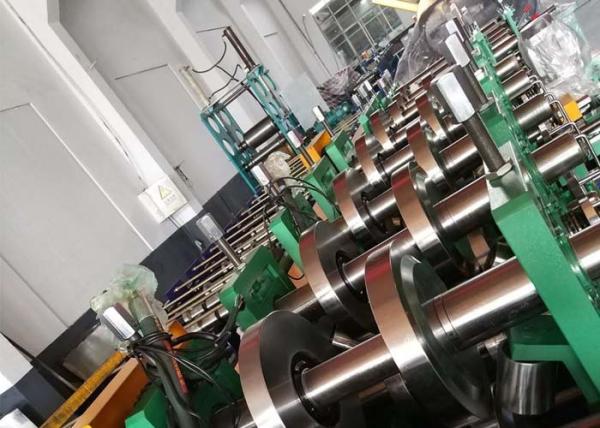

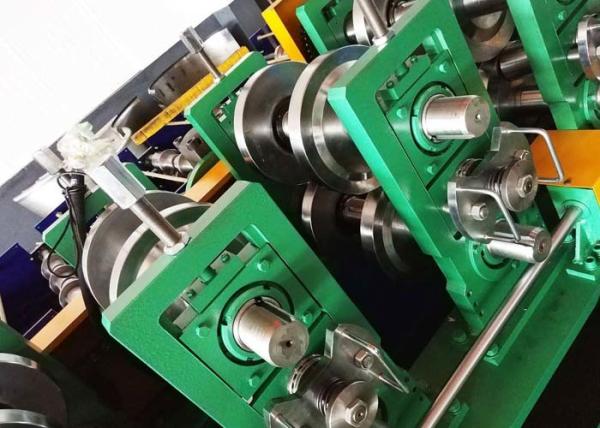

Detailed machine parts:
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes
We can produce two types of C purlin products by the same forming machine, and feeding width are 80-300mm, saving a lot of space and increase the machine efficiency.
For cutting system, we use CDF-10 gear pump, Cr12 for cutting blade. #45 material for forming rollers. The double-blade design is integrated, which is convenient to operate and does not take up any space. We can custormize our machine according to customer's requirement.
Galvanized Steel C Z Purlin Roll Forming Machine Fully Automatic Quick Changing Sizes

Our services:

1. Free technical support and free accessories supply.

2. Engineer available to service machinery overseas.

3. One year warranty is provided.

4. Long life technical guidance for free.

5. We always offer technical support, quick response, all your inquire will be replied in 24 hours.
