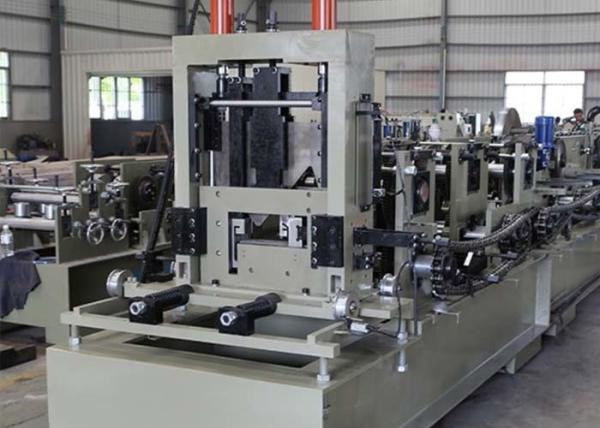

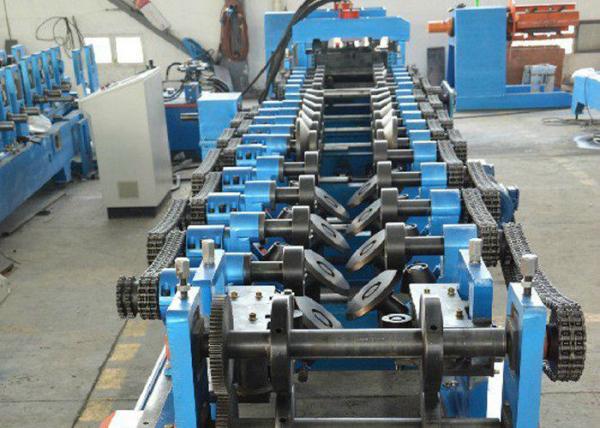

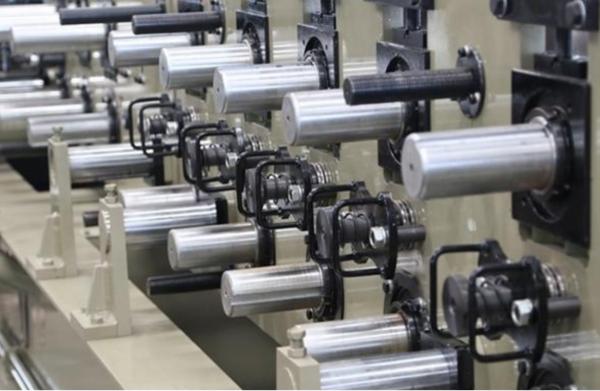

Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable
Specifications
Brand Name :
YBT
Model Number :
YT376509
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
10set
Delivery Time :
45-60 days
Packaging Details :
Standard export packing with each machine tied and protected in container
Name :
CZ roll forming machine
Roller :
ASTM 1045 with chrome
Thickness range :
1.5-3.0mm
Shaft diameter :
75mm
Roll station :
20
Main motor power :
5.5kw
Description

Quick Interchangeable Cz Purlin Machine For Galvanized Steel Sheet

This quick interchangeable cz purlin roll forming machine can produce both C and Z purlin, normally bottom width 100mm to 300mm, with thickness 1mm to 3mm, but we can customize the machine for you, it is fully automatic with high accurancy, which include decoiler, leveling, roll former, cutting and output table.

.Main Components of CZ Section Roll Forming Machine

1) Manual Decoiler: 1 unit

2) Cold Rolling Mills: 1 unit

With feeding material guide, body frame made from 400# type steel by welding

Side wall thcikness: 30mm

3) Hydraulic Cutting device 1 unit

Pre-punching & Pre-cutting, stop to punching, stop to cutting

4)PLC Control System 1 unit

5) Exit Rack Un-powered, 2 unit

Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable

Technical Specifications of CZ Purlin Roll Forming Machine:

Name and discription
Material specification colored steel sheet, galvanized steel sheet
Main motor power 11 kw
Working speed 10-15m/min
Diameter of roller 80 millimeter
Thickness of material 1.0-3.0 millimeter
Blade material Mould cutting
Effective width of steel sheet 80-300 millimeter
Hydraulic power 7.5 kw
Machine weight about 4.5ton
Voltage 380 volt/3 phase, or as your requirements
Roller stations 13 groups
PLC control Computer adopt PLC, Mitsubishi FX-IS
Dimension 9.5m*1.5m*1.2m
Roller material GCR15 with quenching treatment
Frequency converter containing
Rotary Encoder OMRON

2. Main Features

1. Produce different purlin size without changing rollers or spacers.
2. No need changing cutter for different size.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side

5T manual decoiler
Steel coil width from 200 mm to 600 mm
Internal diameter of coil variable, from 470 mm to 510 mm
Maximal out diameter 1600mm
Maximum coil weight 5000 Kg
Working speed 0-15m/min adjustable
Main motor power 5.5KW AC motor
Hydraulic power 3kw

Forming Section
Material of the profile teel sheets for cold bending according to EN 10346 or equivalent requirements
Thickness range 1.5-3.0mm
Main motor power 15kw, AC motor, motor inside of main machine(according the final design)
Roll station 20 station
Shaft diameter ￠76mm
Machine roll forming speed not less than 10 meters per minute
Transmission by gear box for each station

Correction adjust system
Function make the end product in straight, left and right, up and down
Adjust by hand wheel, manual
Roller material:ASTM52100 chrome plated surface with hardness 58-62 degree ,CNC,
Color blue or base on customer request
Quantity 1 unit

Hydraulic station
Hydraulic power 5.5kw
Working pressure 12-16Mpa adjustable
Solenoid valve 3 groups
Hydraulic oil 46# hydraulic oil
Color Blue (or base on customer request)
Quantity 1

Control desk
Programmable setting of profile length and quantity
Automatic stopping of the equipment after completion of the cutting programme will be provided.
language English and Chinese
Voltage, Frequency, Phase 380 V, 50 Hz, 3Phase
Control panel Button-type switch and touch screen
Unit of length millimeter
PLC brand Mitsubishi

Galvanized Steel Sheet C Z Purlin Roll Forming Machine Quick Interchangeable

Our Service

1. 1 year and life-long maintenance;

2. Installation and debugging:We will send professional engineer to make installation and debugging,buyer pay our engineer eachi one 50USD/day,and provide accommodation ,food and the round-trip ticket fee;

3. Installation Days:about 7-10 days

Our machine is definitely guarantee for 12 months. If there is any problem,we will send the technician to fix the problem ASAP!
